Tensile Testing Machine / Compression Testing Equipment With Two Points Extensometer

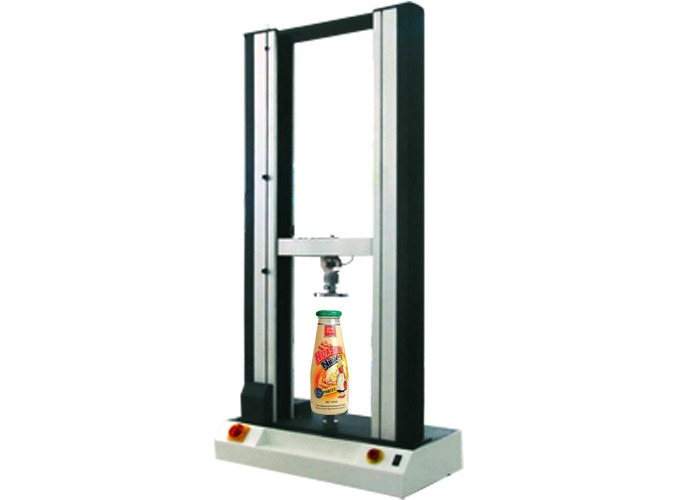

Large Image :  Tensile Testing Machine / Compression Testing Equipment With Two Points Extensometer

Product Details:
Place of Origin: Guangdong,China
Brand Name: PERFECT
Certification: ISO9001
Model Number: PT-1136
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: strong wooden case
Delivery Time: 15-20 work days after confirming order
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets per month
Detailed Product Description
Capacity: 500kg、1000kg, 2000kg, 5000kg ,Max 50KN(5T) Dimensions: About 76×50×175cm(W×D×H)
Weight: About 350 Kg Max Test Stroke: 1000mm,include Gripper
Power: 1PH,AC220V,50/60Hz,10A Or Custom Test Force Resolution: 1/100,000
Port: Shenzhen
High Light:

compression test apparatus


universal compression tester

50KN Tensile Machine Compression Testing Equipment With Two Points Extensimeter

Machine Introduction :
50KN Tensile Machine Compression Testing Equipment With Two Points Extensimeter is designed for Trial tests and analysis, research institutes, universities, industrial and mining enterprises, technical supervision, inspection and arbitration department of the ideal test equipment .he series of electronic universal testing machine is mainly used for metal, non-metallic, composite materials and the tensile, compression, bending, shearing, tearing and other forms of mechanical properties, while according to GB, ISO, JIS, ASTM, DIN and provide users with a variety of standards for testing and data processing.
50KN Tensile Machine Compression Testing Equipment is widely used in aerospace, machinery, wire and cable, rubber, plastics, textiles, building materials, household appliances and other industries of mate
50KN Tensile Machine Characteristic:

1). The structure adopts duralumin stuff after burned lacquer handling, the inner setting were non-gap double balls bearing screws and double oriented standing poles which were high precision; it has a good load efficiency and steady structure. Panasonic digital AC servo system can ensure the driving system to be high efficiency, steady driving, low noise, speed precision which is from﹣0.2% to﹢0.2%.

2). Flexed dustproof curtain made of imported PVC material, wear well and beautiful & top grade.

3). Adopt imported high precision transducer, the effective testing range is within 0.5%~100%F.S, the precision is better than 0.085%;

4). Double high definition coder can test the sample to be anamorphic or not.

5). Aluminium alloy stuff and spray molded handling make the appearance more exquisite.

6). Special software can finish all testing reference setting, controlling of working status and collecting data & analysis, results shown and printing output;

7). Business computer controlling, convenient collocations, professional testing program, 32 digits fast speed data procured, all can output various charts and curves.
Machine Specifications:

Machine Name50KN Tensile Machine Compression Testing Equipment With Two Points Extensimeter
Capacity500kg, 1000kg, 2000kg,5000kg any option one
SoftwareWindows XP platform fully open test software
Force measurement accurateBetter than ±0.5%
Force measurement resolution1/100,000
Effective force measurement range0.5~100%F.S
Deformation measurement resolutionBetter than ±0.1%
Test speed range0.5~300mm/min,adjustable.
Test maximum strokeMaximum 1000mm,include griper
Test spaceFront and back ∝,left and right 400mm
Stop modeThe upper and lower limit of the security settings, emergency stop button, the program strength and elongation set, test failure sensing
Special FeaturesAble to do hold pull and hold pressure test
Optional configurationGripper*1,software and USB *1,power line*1,CD operation illustration*1,certificate*1,warranty card*1
DimensionsBusiness computer*1, color printer*1,PT-211 two point’s extensimeter,and kinds of grippers.
DimensionsAbout 76×50×175cm(W×D×H)
WeightAbout 350kg
MotorAC servo motor
Power1PH,AC220V,50/60Hz,10A or order

PT-1136 50KN Tensile Tester.pdf
