Pressure Saturated Bucket Salt Spray Test Chamber Spraying Fog Tester Tower Shape
Purpose:
Pressure Saturated Bucket Salt Spray Test Chamber for Laboratory Testing is against all kind material after anti-corrosion treatment then to test its corrosion resistance.Salt spray tester is ideal for testing the resistance to salt spray corrosion of some products by measuring and comparing similar materials, their usability quality. It is applicable to test salt spray corrosion resistance of such products as parts, electronic components,protective layer of metallic material and industrial products
Spray Test Chamber Featuers :
1. Integrally molded, corrosion-resistant, shock, easy to clean, no leakage.
2. Tower spray system, smoke evenly distributed free to adjust the amount of the settlement.
3. Fiberglass or PVC lid cover two options, the use of PVC cover can be clearly seen inside the test items and spray conditions.
4. Adopt water seal structure, keep there no salt overflow.
5. Water sealed tank, the bottom of the box body is using water system, drainage and convenient cleaning.
6. Easy inspection and maintenance about the Line control panel and other components are fixed in position for, the use of open-style side door lock, not only beautiful, but also easy to maintain.
7. Neutral salt spray can (NSS), acetic acid salt spray (AASS), copper accelerated salt spray (CASS) test in any one test.
Detailed Paraments:
| Item Name | Pressure Saturated Bucket Salt Spray Test Chamber Spraying Fog Tester Tower Shape | ||
| Model | PT-2070A | PT-2070B | |
| Standards | GB/T10125/10587,ASTM B117/B287,JIS Z2371,CNS3627 | ||
| Test Space | 60x45x40 cm (WxDxH) | 90x60x50 cm (WxDxH) | |
| Dimensions | 114x76x119 cm (WxDxH) | 142x78x128 cm (WxDxH) | |
| Temperature Range | Room Temperature ~ 80℃ | ||
| Control Method | P.I.D automatic Temperature Calculation control | ||
| Temperature Resolution | 0.1℃ | ||
| Temperature Control Accuracy | ±0.3℃ | ||
| Temperature Distribution Accuracy | ±1℃ | ||
| Timer | 0~999.9 hours (minutes) digital display | ||
| Accessories | Test Salt, Graduated Cylinder, Tools | ||
| Safety Protection | Independent EGO over-temperature power failure, safety overload switch | ||
| Spray Volume | 1~10c.c./Hour | ||
| Volume of Test Space | 108 liters | 270 liters | |
| Salt Sump | Volume | 15 liters | 30 liters |
| Test Time | 90 hours | 180 hours | |
|
Specimen 150x70mm |
Tilted 15° | 24 pieces | 48 pieces |
| Tilted 30° | 15 pieces | 30 pieces | |
| Material | F.R.P. | ||
| Weight | About 60 kg | About 150 kg | |
| Power | 1PH,AC220V,50/60Hz,6KW | 1PH,AC220V,50/60Hz,3KW | |
Other Sizes Choice:
| Model No. | Tset Size | Test Room Capacity |
| PT-2070C | 100*70*50cm | 350L |
| PT-2070D | 120*100*50cm | 600L |
| PT-2070E | 160*100*50cm | 800L |

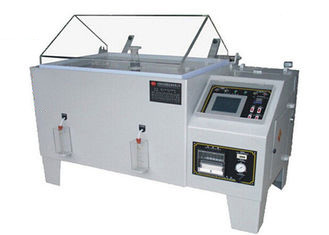

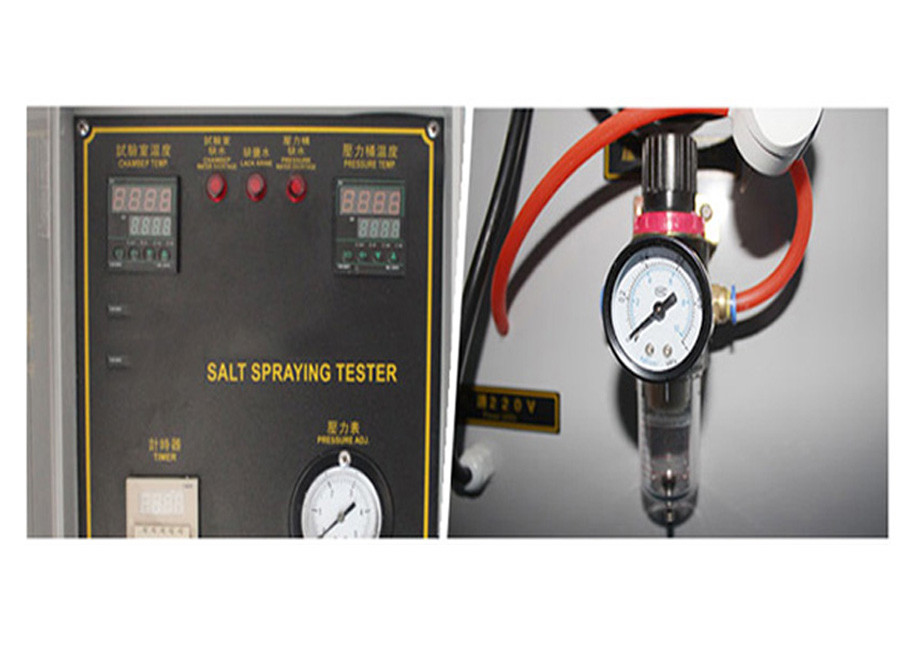

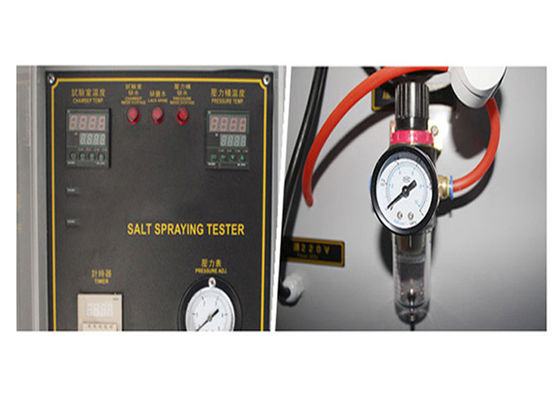

Salt Spray Test Chamber Picture:
