Simulated Ultraviolet Fading Accelerated Aging Test Chamber Yellow Resistant Tester
Purpose of Yellow Resistant Tester :
This Fading Accelerated Aging Test Chamber is the test equipment to provide the sun's heat and ultraviolet radiation simulation environment, use on yellowing accelerated testing of materials (normally test specimen put into test cabinet for 3 hours and set at 70℃ will equivalent in the natural environment 2 months yellowing results). Operator can take gray scale for staining as reference to determine the level of yellowing of materials; also can visual observation the degree of yellowing of specimen. if this Aging Oven Yellow Resitance Test Machine remove UV light source, can be used for aging oven or drying oven.
Applicable industries:
Simulated Ultraviolet Fading Accelerated Aging Test Chamber suitable for For Non-Woven Fabrics Yellow Test applied to control the product quality, such as electronic, plastic products, electrical appliances,
instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and
so on.
Standards : GB/T18830,ASTM D1148,ISO8580
Fading Accelerated Aging Test Chamber Feature :

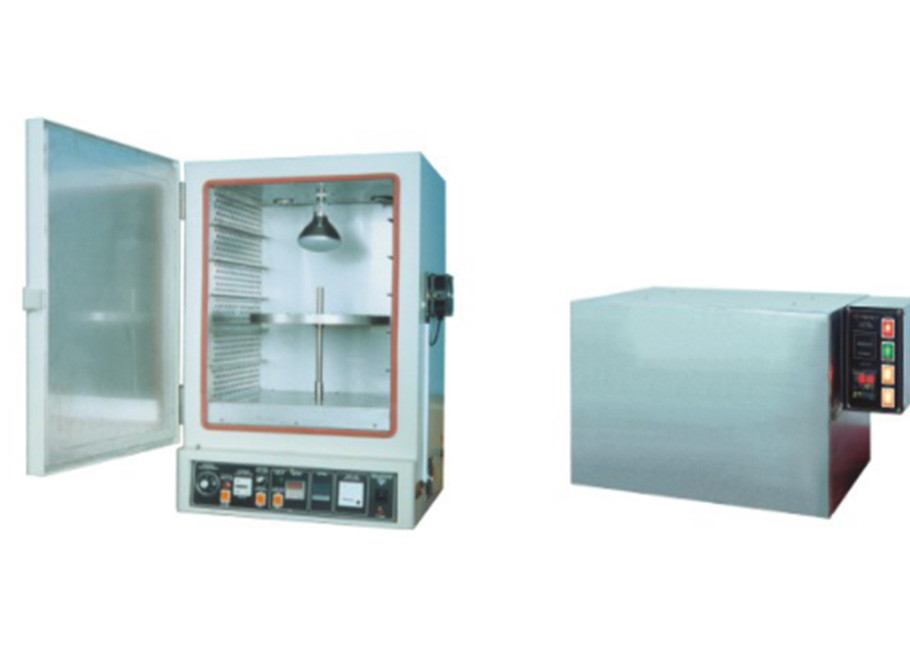

This tester has 2 models (please refer to follow picture), the PT-2030A is temperature control type, can be multi-purpose uses.
Fading Accelerated Aging Test Oven Parameter:
| Machine Name | Simulated Ultraviolet Fading Accelerated Aging Test Chamber Yellow Resistant Tester | |
| Model No | PT-2030A | PT-2030B |
| Inner Dimensions | 500×500×600 mm (W×D×H) | 510×320×260 mm (W×D×H) |
| Dimensions | 670×620×1110 mm (W×D×H) | 680×340×370 mm (W×D×H) |
| Temperature Range | Room temperature (+5℃)～200℃ | Room temperature |
| Temperature Controller | P.I.D. Automatic Calculation | |
| Temperature Resolution | 0.1℃ | |
| Control Accuracy | ±0.3 ℃ (Drying, aging) | |
| Distribution Accuracy | ±1% (1℃) at-room 100℃ | |
| Timer | 0～999.9 Hours/Minutes, Electronic display, Power failure memory type, Buzzer | |
| Compartment tray | Dia. 45cm, 3 R.P.M, Height-adjustable | 2 layer,Height not adjustable |
| UV light source | Light bulb, UV/300W,with Bulb life timer | Light Tube X 2,15W |
| Standard Accessories | Shelves x 2 | |
| Heating Mode | Heated air circulation | |
| Safety Protection | Independent EGO over-temperature power failure, safety overload switch | |
| Oven Body Material | Outside is paint coating, inside is SUS#304 stainless steel | |
| Weight | 80kg | 12kg |
| Power | 1PH,AC220V,15A | 1PH,AC220V, 1A |
