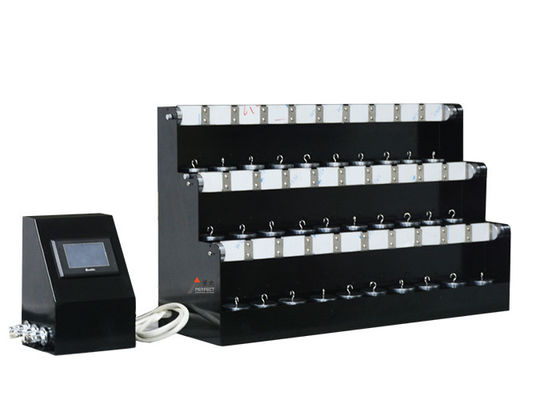

Adhesion Holding Force Testing Machine Adhesive Tape Multi - Position Tester
Adhesion Holding Force Testing Machine Description :
Adhesive Tape Multi - Position Testing Machine is to do the static load test for the adhesion force of the adhesive tape, under certain load automatic timing adhesive tape can holding time to confirm the timeliness of adhesive tape.
Testing Machine For Adhesive Tape is used to assess the durability of adhesive for adhesive tape, and after improved, the product can be adapted to a variety of high temperature, low temperature, high humidity, low humidity and other harsh environments.
Tape Multi - Position Test Machine Parameters :
| Machine Name | Adhesion Holding Force Testing Machine Adhesive Tape Multi - Position Tester | ||||
| Model | PT-6011-8 | PT-6010-20 | PT-6010-30 | ||
| Temperature | Room Temperature | ||||
| Test Fixture | 8 Sets | 20 Sets | 30 Sets | ||
| Weight | 1kg X 8 | 1kg X 20 | 1kg X 30 | ||
| Timer | 8 Sets | 20 Sets/PLC | 30 Sets/PLC | ||
| Stainless steel plate | SUS#304 X 8 | SUS#304 X 20 | SUS#304 X 30 | ||
| Connector | 8 Piece | 20 Piece | 30 Piece | ||
| Weight (without accessories) | About 15kg | About 25kg | About 30kg | ||
| Dimension (W×D×H) | About 40×22×71 cm | About 90×31×73 cm | About 90×31×103 cm | ||
| International Standards |
GB/T4851,CNS11888,PSTC7 |
||||
Note: Acceptable customer specified number of test sets !
Detail Use Introduction :
Cut 1 inch wide strip adhesive tape affixed to SUS # 304 stainless steel plate, after 2kg of standard rolling wheel to speed of 300mm per minute rolling back and forth for 3 times, the steel plate hanging on the test machine, plus provisions weight, when adhesive tape falling from steel, the timer automatically retention the test time.
