Horizontal Universal Material Testing Machine Microcomputer Controlled 300KN
Horizontal Universal Testing Machine Introduction :
The machine adopts the frame overall steel welding structure, single out the double-acting piston cylinder test force, cylindrical pin instrumentation sample, load sensor, according to the sample specification length can be adjusted step stretch space, computer screen test power and test curve, automatic processing according to the requirement of the test method of test data, the machine for lifting belt, chain and rope type do products by tensile test special equipment, used for hoisting belt products individually tensile load, destructive test, for convenient operation and slow loading smoothly, the body carrying capacity is strong, etc.
Detailed Specification :
| Model No. | PT-LEW-300 |
| Machine Name | Horizontal Universal Material Testing Machine Microcomputer Controlled 300KN |
| Max.Test Force | 300KN |
| Measuring Force Range | 60KN to 300KN |
| Test Force Resolution | 1/300000 code |
| Test Force Accuracy | 1% |
| Test Space | (not including the piston stroke): 500-6000mm (500mm) |
| Piston Stroke | 1000mm |
| Displacement Measurement Range | 1000mm |
| Displacement Measurement Resolution | 0.01mm |
| Pull Head No-Load Fast Forward Speed | not less than 200mm/min |
| Test Speed | 0-120mm/min; |
| Work Centre Height | 350mm |
| Measuring Force Mode | Load Sensor |
| Host Size |
9000x1200x500mm (L*W*H) |

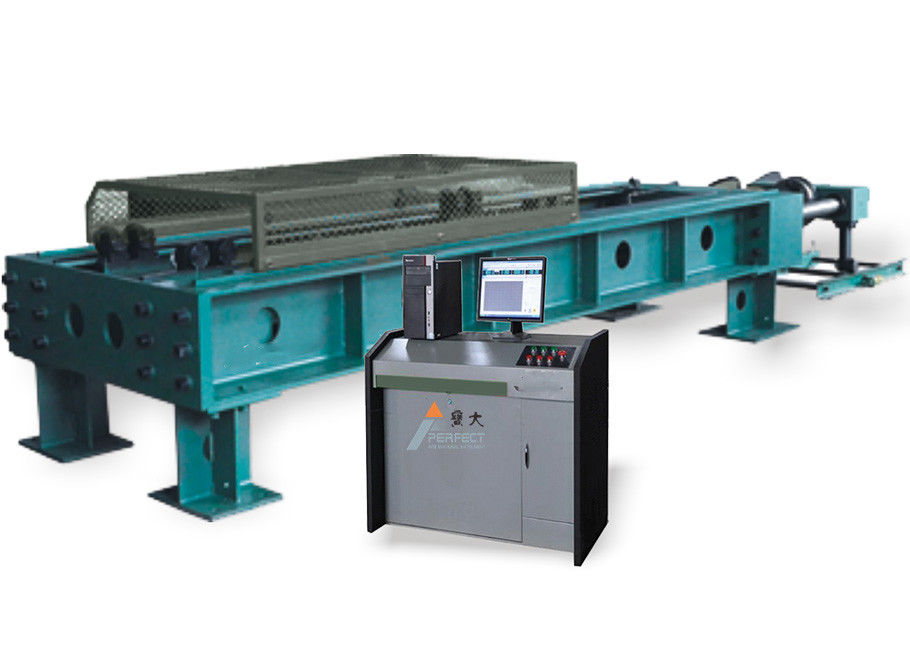

Horizontal Testing Machine Picture :
Machine Out Shape Picture :
