AC Servo Motor 3 Points Bending Testing Machine 10KN Tensile Press Flexural Tester
4 Points Bending Testing Machine Introduction :
AC Servo Motor 3 Points Bending Testing Machine 10KN Tensile Press Flexural Tester is suitable for various materials,including finished articles and semi-finished articles. It can test tensile strength, tensile elongation, compression, bending, puncture, splitting, tearing, shearing and adhesive force etc.
Tensile Press Flexural Tester controlled by an interior computer. It is easy to manipulate, The surface is made by extrusion molding aluminum board and has perfect painting coat, which is endurable and artistic.This machine has two columns, and we make a speical protective cover base on custom's requirement.
Tensile Press Flexural Tester Parameters:
| Machine Name | Tensile Press Flexural Tester |
| Model No. | PT-1166 |
| Capacity selection | 2,5,10,20,50,100,200,500,1000,2000kg Optional one |
| Measurement and control software | Professional test software Windows platform |
| Accuracy measurement | Be better than ±0.5% |
| Force resolution | 1/500,000 |
| Effective range of measurement | 0.5~100%F.S |
| Deformation display accuracy | Be better than ±0.5% |
| Test speed range | 0.5～500mm/min,Can be arbitrarily set |
| Test maximum stroke | Maximum 1000mm, not including fixture |
| Effective test space | Before and after ∝,About 400mm |
| Unit switch | A variety of measurement units, including international units, users can also customize the required units |
| Stop mode | Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure |
| Special function | Can be held in tension, holding pressure and fatigue test |
| Optional configuration | Business computer 1, 1 color printer, PT-211 two points to extend the fixture, a variety of test fixture |
| Machine size | About 76×46×160cm(W×D×H) |
| Machine weight | About 165kg |
| Power | AC servo motor,Japan |
| Power Supply | 1PH,AC220V,50Hz,10A Or specify |
Standard configuration of Tensile Press Flexural Tester :

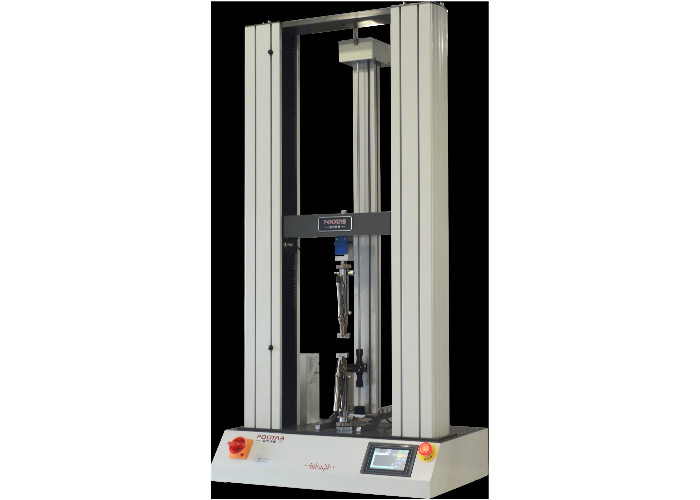

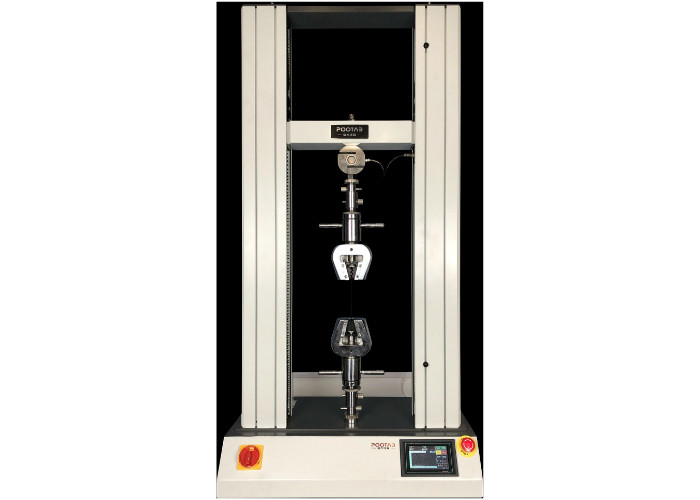

Bending Testing Machine Picture :
