High Low Temperature Pull Pres Tensile Testing Equipment Oven Type
Pull Pres Tensile Testing Equipment Oven Type Purpose:

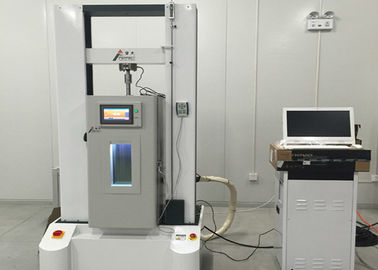

High Low Temperature Pull Pres Tensile Testing Equipment Oven Type is our company launched a new testing machine, The machine adopts the latest design concepts and manufacturing technologies, the integration of precision oven and tensile testing machine as a new model, is designed to simulate the physical properties of various materials testing improved models in different environmental conditions, if install of high-low temperature test chamber on this machine, can be test the materials physical characteristics of tensile, pressure, shear at different temperature. When using the normal temperature test, high-low temperature test chamber can be removed to increase the use of space and convenience.
Tensile Testing Equipment Oven Type features powerful and easy to operate, perform GB, ISO, ASTM, BS, DIN, JIS and other national or international standards for testing, for all factories and enterprises, technical supervision departments, inspection agencies, research institutes and universities, etc. sector ideal test and research equipment.
Detailed Specifications:
| Product Item | High Low Temperature Pull Pres Tensile Testing Equipment Oven Type |
| Capacity Options | 200kg, 500kg, 1000kg, 2000kg 5000kg option any one. |
| Temperature Range | Room temperature ~ 200℃ (with visual window, lighting). |
| Control Method | P.I.D. automatic temperature calculation. |
| Distribution Accuracy | ±1% (1℃) at- room 100℃. |
| Measurement and Control Software | The full open test software of Windows OS. |
| Force Measurement Accuracy | Better than ± 0.5%. |
| Force Measurement Resolution | 1/100,000. |
| Deformation Measurement Resolution | 0.01mm. |
| Effective Force Measurement Range | 0.5 ~ 100% F.S. |
| Deformation displayed value Accuracy | Better than ± 0.5%. |
| Test Speed Range | 0.5 ~ 1000mm/min, Can be set. |
| Tests stroke | Maximum 450mm, including griper’s length. |
| Effective test space | 220mm left to right, 350mm front and rear. |
| Unit switch | Contains a variety of internationally accepted unit of measurement, users can define their own desired unit. |
| Stop mode | Upper and lower security settings, emergency stop button, the program setting of strength and elongation, specimen damage sensing. |
| Special Features | Can do continuous tension, sustained pressure, fatigue, bending, flexural and shear tests; users can also according to their actual test needs to define its own test methods. |
| Standard accessories | Standard gripper X 1, tensile machine seat X1, RS-232 data lines X1, power cord X1. |
| Dimensions (W×D×H) | Tensile machine: 76×45×154cm, Oven: 105×45×60cm, base seat: 80×60×71cm, After assembly: 80×105×225cm. |
| Weight | About 280kg. |
| Motor | AC servo motor. |
| Power | 1PH, AC220V, 50/60Hz, 15A or assign. |
Characteristic :
