High Precision Vacuum Drying Oven PID Controller High Temperature Insulation
Precision Drying Oven Application :
High Precision Drying Oven PID Controller High Temperature Insulation is electrical devices which use dry heat to sterilize. They were originally developed by Pasteur.Generally, they can be operated from 50 to 300 °C, using a thermostat to control the temperature. Their double walled insulation keeps the heat in and conserves energy, the inner layer being a poor conductor and outer layer being metallic. There is also an air filled space in between to aid insulation. An air circulating fan helps in uniform distribution of the heat.
Design Standards: ASTM E145,DIN12880
High Temperature Drying Oven Specification :
| Precision Oven Name | Precision Drying Oven Environmental Chamber | |
| Model No. | PT-2010A | PT-2010B |
| Inner Dimensions | 40×40×45 cm (W×D×H) | 50×50×60 cm (W×D×H) |
| Dimensions | 62×52×91 cm (W×D×H) | 67×62×111 cm (W×D×H) |
| Temperature Range | Room temperature (+5℃) ~ 200℃(300℃) | |
| Temperature Controller | P.I.D. Automatic Calculation | |
| Temperature Resolution | 0.1℃ | |
| Temperature Sensing Bar | PT100 , A Grade | |
| Control Accuracy | ±0.3 ℃ | |
| Distribution Accuracy | ±1%(1℃) at- room100℃ | |
| Time Control | 0~999.9Hours/Minutes, with TIMER and HOLD option switch. | |
| Standard Accessories | Shelves x 2, Observation Window (Over 200℃ no Observation Window) | |
| Heating Mode | Heated air circulation | |
| Safety Protection | Independent EGO over-temperature power failure, safety overload switch | |
| Oven Body Material | Outside is paint coating, inside is SUS#304 stainless steel | |
| Power | 1PH,AC220V,50/60Hz,10A | |

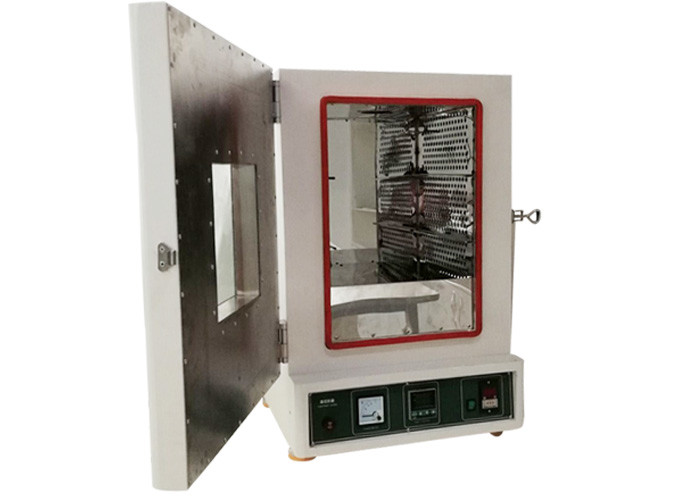

Oven Picture :
Drying Oven Features:
