P.I.D Tensile Test Machine

1 Set
MOQ
Negotiation
Price
P.I.D Tensile Test Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Sensor Capacity: Max 2000kgf (20KN)
Temperature Range: Room Temperature ~ 200℃
Special Design: Visual Window, Lighting
Control Method: P.I.D. Automatic Temperature Calculation.
Weight: About 300kg
Test Speed Range: 0.5 ~ 1000mm/min, Can Be Set Freely
Effective Test Space: 220mm Left To Right, 350mm Front And Rear.
Port: Shenzhen, Guangzhou,or As Customer's Request
High Light:

tensile test apparatus

,

tension testing equipment

Basic Infomation
Place of Origin: Guangdong,China
Brand Name: POOTAB , PERFECT
Certification: ISO9001, CE, SGS
Model Number: PT-1167HXX
Payment & Shipping Terms
Packaging Details: standard wooden case for exported
Delivery Time: 15-20 working days afer confirm order
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Product Description

High Temperature Tension Testing Machine , Tensile Testing Machine With Environmental Chamber



Machine Description :

Tensile Testing Machine With Environmental Chamber is our company launched a new testing machine, The machine adopts the latest design concepts and manufacturing technologies, the integration of precision oven and tensile testing machine as a new model, is designed to simulate the physical properties of various materials testing improved models in different environmental conditions, if install of high-low temperature test chamber on this machine, can be test the materials physical characteristics of tensile, pressure, shear at different temperature. When using the normal temperature test, high-low temperature test chamber can be removed to increase the use of space and convenience.



Tensile Testing Machine With Environmental Chamber is easy to operate, perform GB, ISO, ASTM, BS, DIN, JIS and other national or international standards for testing, for all factories and enterprises, technical supervision departments, inspection agencies, research institutes and universities, etc. sector ideal test and research equipment.



We could also custom the machine's tempererature, humidity, and inner cabinet size as clients's request.



High Temperature Tensile Tester Characteristic :

1. Elegant design: Dynamic-type base supplemented by senior spray treatment of aluminum profiles   column.

2. Precision transmission mechanism: Use high-precision, seamless ball screw and Timing belt as the guarantee accuracy of drive system.

3. Advanced control: Fully computerized data acquisition and motion control, powerful and easy to   operate.

4. Powerful software features: The full open test software of Windows OS, Users can use the software to complete almost all the existing functionality mechanical test items, but also according to their actual needs to edit their own testing methods. Test results can be shared with the vast majority of office and other office automation software.

5. Ultra-high precision: Better than force measurement accuracy of 0.5 degrees, 1/100,000 of the force value resolution, deformation measurement resolution up to 0.01mm.



Tensile Tester With Precision Oven Specifications:

Machine Name High Temperature Tension Testing Machine , Tensile Testing Machine With Environmental Chamber
Capacity Options 200kg, 500kg, 1000kg, 2000kgf option any one.
Temperature Range Room temperature ~ 200℃ (with visual window, lighting).
Control Method P.I.D. automatic temperature calculation.
Distribution Accuracy ±1% (1℃) at- room 100℃.
Measurement and Control Software The full open test software of Windows OS.
Force Measurement Accuracy Better than ± 0.5%.
Force Measurement Resolution 1/100,000.
Deformation Measurement Resolution 0.01mm.
Effective Force Measurement Range 0.5 ~ 100% F.S.
Deformation displayed value Accuracy Better than ± 0.5%.
Test Speed Range 0.5 ~ 1000mm/min, Can be set.
Tests stroke Maximum 450mm, including griper’s length.
Effective test space 220mm left to right, 350mm front and rear.
Unit switch Contains a variety of internationally accepted unit of measurement, users can define their own desired unit.
Stop mode Upper and lower security settings, emergency stop button, the program setting of strength and elongation, specimen damage sensing.
Special Features Can do continuous tension, sustained pressure, fatigue, bending, flexural and shear tests; users can also according to their actual test needs to define its own test methods.
Standard accessories Standard gripper X 1, tensile machine seat X1, RS-232 data lines X1, power cord X1.
Dimensions (W×D×H) Tensile machine: 76×45×154cm, Oven: 105×45×60cm, base seat: 80×60×71cm, After assembly: 80×105×225cm.
Weight About 300kg.
Motor AC servo motor.
Electric Power 1PH, AC220V, 50/60Hz, 15A or assign.

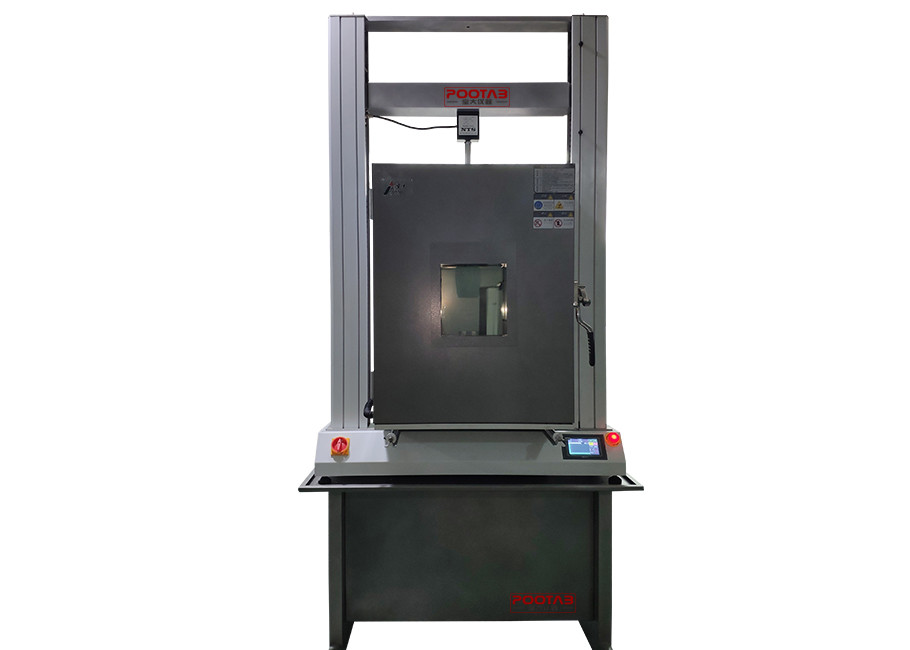

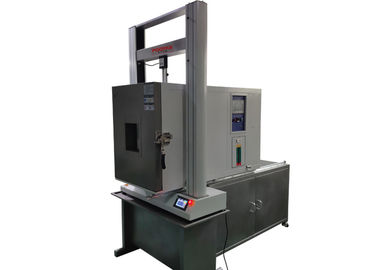

Tensile Tester With Precision Oven Picture:

P.I.D Tensile Test Machine 0
