Single Arm Drop Test Apparatus For Dould Wings / Travel Case / Suitcase Durability Testing

1 Set
MOQ
Negotiable
Price
Single Arm Drop Test Apparatus For Dould Wings / Travel Case / Suitcase Durability Testing
Features Gallery Product Description Request A Quote
Features
Specifications
Test Altitude: 300mm To 1500mm
Thickness Of Base Plate: 15mm
Test Method: Button Control Of Electromagnetic
Test Width: Max 80cm
Power: 1 PHASE, AC 220V/50 Or 60HZ
Test Platform: 61×31cm, Each Flat Piece At Left And Right Side,in The Middle Set A Hollow Circle Of 300mm
Warranty: 1 Year
High Light:

fatigue testing equipment

,

drop test equipmen

Basic Infomation
Place of Origin: Dongguan,Guangdong,China
Brand Name: PERFECT
Certification: ISO9001, CE, SGS
Model Number: PT-7071
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 150 set per month
Product Description



Bags Drop Test Machine Dould Wings , Travel Case Falling Drop Durability Test





Usage: Put the load luggage, travel bag, in accordance with the provisions to make its natural fall after the height of the rules, make sample impact oscillation, check sample chamber (inclusions), box, fixed parts, fittings, tie rod, wheel, axle and wheel frame and lock parts intact degree and the strength of the whole structure of the sample.Applicable to all kinds of daily luggage.Suitable for NIKE, adidas, samsonite and other standard requirements.


Standard :QB/T 2921-2007





Double Wings Drop Testing Machine Features :



  • The spindle is used by precision grinding shaft lever, high precision, good stability
  • LCD screen displays multi-parameter.
  • Power failure safety design, keeping the original state when the power is failed.
  • Up and down lifting limitation setting
  • Adopt single arm supports test object.
  • Swing arm system is controlled by air pressure.
  • Free adjust pressure and speed up to 2G with object weight.
  • Test elctronic parts, finished products or angle surfae of the package container.
  • Decompression change design, low noise.
  • Best after sales service: One year free parts maintenance.
  • Meet international test standards.
  • Customization is available & welcomed.

Machine Specification :

Model PT-7071
Test Height 35~150cm
Test Platform 61×31cm, each flat piece at left and right side,in the middle set a hollow circle of 300mm
Test Width 80cm (max.)
Height Adjustment Electric motor, Button Control, After reaching test altitude automatic stop.
Test Method Button control of electromagnetic
Base Plate 45 Steel Plate,Thickness :15mm
Accessories 45°Angle strut,90°Angle strut
Power 1 PHASE, AC 220V , 50 or 60HZ

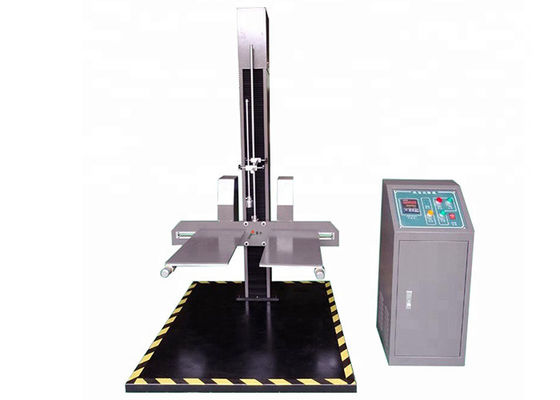

Bags Drop Tester Dould Wings :



Single Arm Drop Test Apparatus For Dould Wings / Travel Case / Suitcase Durability Testing 0



FAQ

Q1: Are you a factory or trading company?
A: We are a factory specializing in manufacturing all kinds of dynamics testing machines and instruments.
Q2: Where is the loading port?
A: Shenzhen Port.

Q3: What's the MOQ of the product?
A: Different items have different MOQ. Welcome to contact our sales for getting more details.

Q4: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.

Q5: How long is the production cycle after ordering?
A: General it is about 15-30 days. We will send the time according to the order’s quantity.
