3 inch core Servo Motor Touch Screen High Speed Unwind Tester; Adhesive Testing Equipment
PT-6088B High Speed Unwind Tester.pdf
Usage: With high speed to peel off entire roll adhesive tape, to observed strength change and analysis size of peel force during entire roll adhesive tape stripping process, as adhesive tape at high speed unwound provide references when in use.
Standards:PSTC-13 ASTM D1000
Invention Patent No.: ZL 2013 1 0292082.7
Utility Model Patent No.: ZL 2013 2 0413979.6
| Model | PT-6088B |
| Standard Specimen Size | Within reel diameter 75mm and width 75mm (reel can be customized), the maximum outer diameter of 300mm. |
| Capacity | 10kg,20kg,50kg Option One |
| Force Accuracy | ±0.5% |
| Force Resolution | 1/300,000 |
| Test Software | special software for unwind test, automatic recording of the time unwound 25%, 50% and 75% force value. |
| Unwinding Speed Range | 0 ~ 122m/min±3 m/min (can be set) |
| Unit Switch | All units can be arbitrarily selected; you can also define you own units. After test is completed also can be any conversion. |
| Dimension | About 50*40*30cm(W*D*H) |
| Machine Weight | About 27kg(not include packing) |
| Power | 1/2PH,AC220V(or 110V),5A |

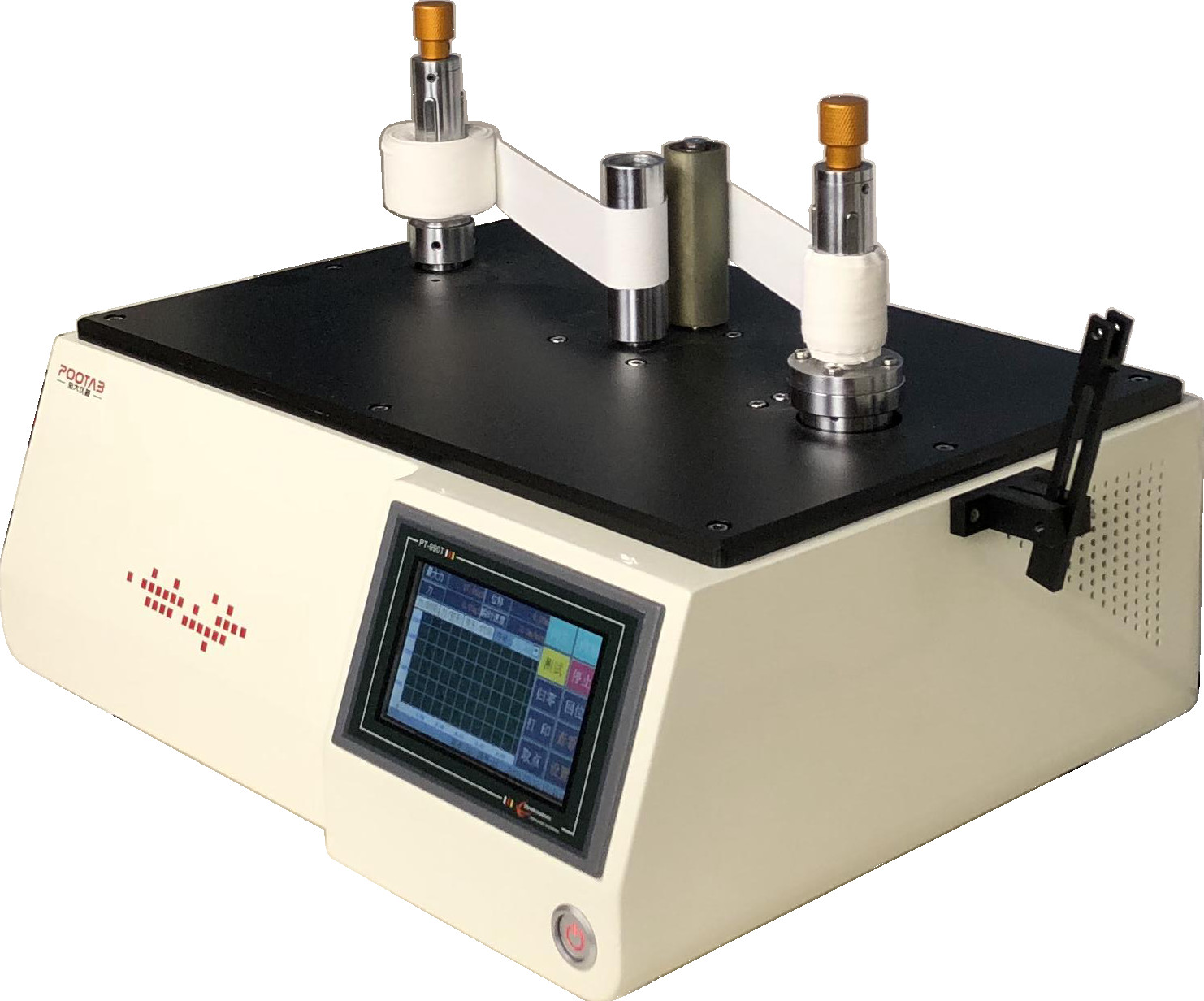

Image :

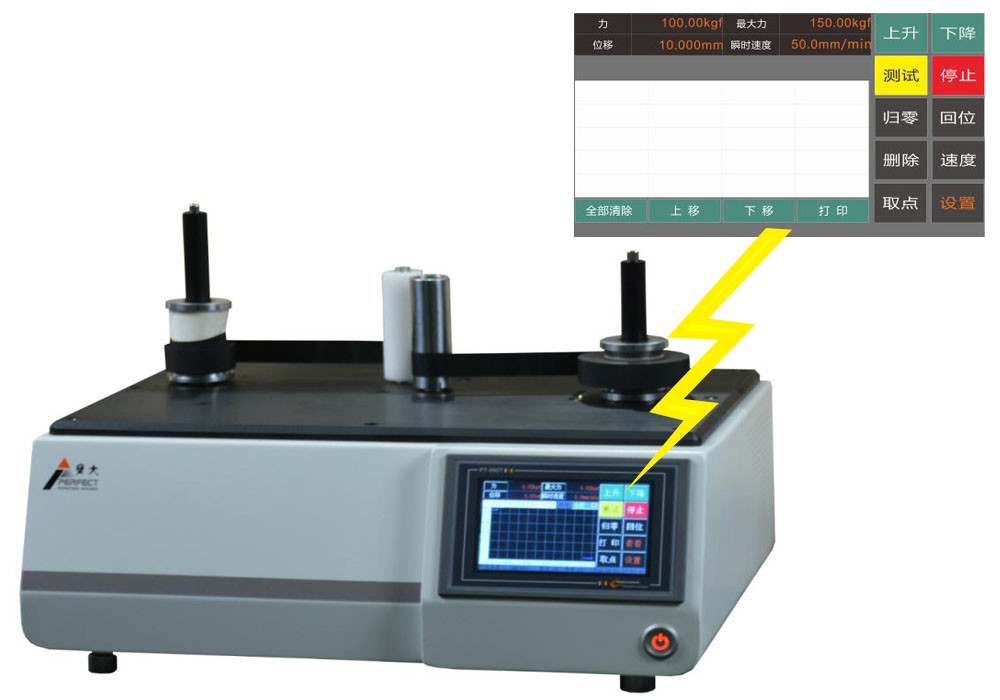

Touch screen display:
FAQ
Q1: Are you a factory or trading company?
A: We are a factory which has specialized in the production of various dynamics testing instruments and instruments, with more than 20 years of production experience and 3 years of export experience.
Q2: Where is the loading port?
A: Shenzhen Port.
Q3: What's the MOQ of the product?
A: 1 set.
Q4: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q5: How long is the production cycle after ordering?
A: General it is about 15-30 days. We will send the time according to the order’s quantity.
