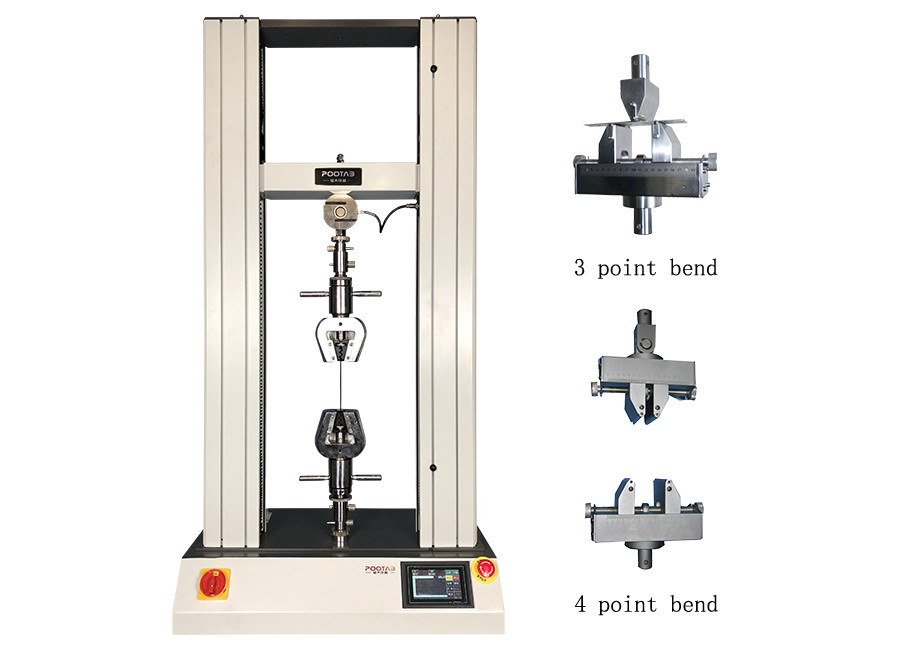

1000mm Stroke Universal Testing Machine, 10KN 3 Point Bending Test Machine
Use :
Three point bending strength testing machine,three dots bend tester is a anti flex tester. The specimen is placed on two supporting points with a certain distance, and a downward load is applied to the specimen at the midpoint of the two supporting points. When the three contact points of the specimen form two equal moments, three-point bending occurs. The specimen will fracture at the midpoint. The three-point bending test is often used to test the bending strength (flexural strength) of various materials.The three-point bending test is not the weakest area to measure the bending resistance of the backbone, but the area of interest on the specimen. Besides the bending test, this apparatus is also for tensile test, compress test,peeling, tearing, puncturing, bursting, shear, if equip corresponding fixtures.
Meet Standard :
GB/T232-2010 (Metal Material Bend Test Method), applicable to the bend test of specimens specified in the relevant product standards of metal materials.
3 Point Bending Testing Machine UTM Detailed Parameters :
| Model | PT-1166 3 Point Bending Testing Machine UTM 10KN Tensile Compress Flex Testing Equipment |
| Capacity | 1000N,2000N,5000N, !0KN,20KN, any one option |
| Software | Windows professional software |
|
Measurement Range |
0.5~100%F.S |
| Deformation Display Accuracy | ±0.5% |
| Test Speed | 0.05～1000mm/min |
| Test Travel | Max 1000mm,exclude fixture/grip |
| Effective Test Space | Front back no limit,left right 400mm |
| Unit Switch | MPa,kPa,kgf/cm2,Ibf/in2,kgf,gf ,N,kN,Ibf,etc |
| Stop Method | Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure |
| Standard Configuration | software and data line 1 sets, 1 sets of equipment power supply, operating instructions user manual, 1 product certification , 1 product warranty card |
| Purchase Configuration | Business computer , printer , various customized test grips |
| Size | About 76×46×160cm(W×D×H) |
| Weight | About 160kg |
| Motor | AC servo motor |
| Power Supply | 1PH,AC220V,50/60Hz,10A |

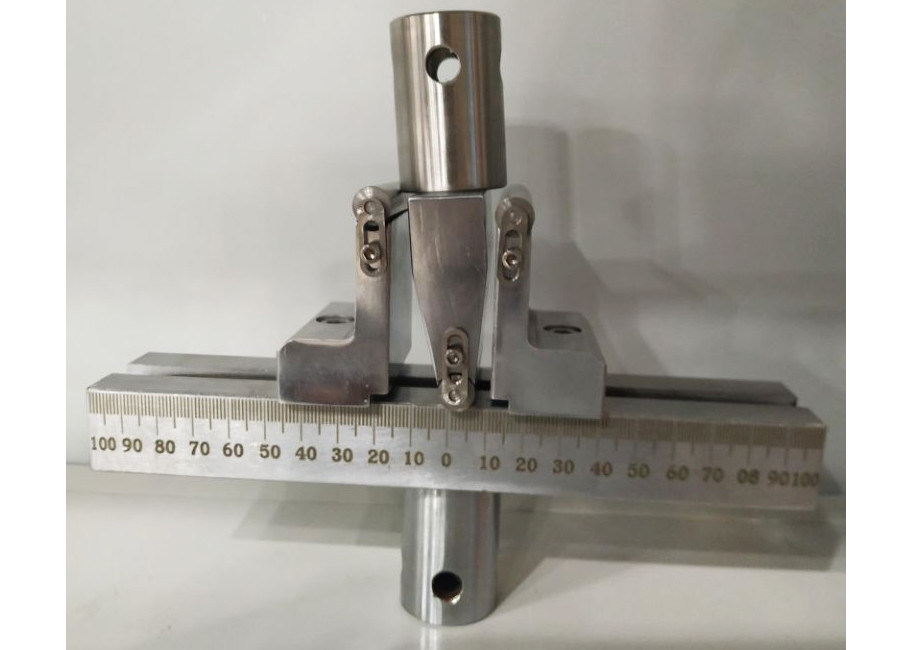

3 Point Bending Testing Diagram:
