IP5X Sand Climatic Test Chamber IP6X Dust Proof Test Cabinet
Application: Sand Dust Test Chamber, which simulates the destructive nature of the wind and sand climate on the product, is suitable for testing the enclosure sealing performance of the product, and is mainly used for the IP5X and IP6X tests specified in the enclosure protection level standard.It follow standards IEC60529-2001；GB4208-2008；GB/T7001-1986；GB/T4942.1-2001；GB/T4942.2-1993
Sand Climatic Test Chamber Features :
Dust Test Cabinet Specifications :
| Model | PT-2055A | PT-2055B | PT-2055C |
| Test Space | 800×800×800mm | 800×1000×1000mm | 1000×1000×1000mm |
| Temperature(℃) | RT+10～60℃(The circulating air duct is equipped with a heater to warm the dust to avoid condensation)The dust heating temperature is displayed on the operation panel to facilitate the customer to monitor the dust heating data. | ||
| Blowing dust metod | When the dust is blown upward, the air flow in the test chamber is mainly vertical airflow from top to bottom. The air flow speed should enable the dust to be evenly distributed in the test chamber. | ||
| Dust(talcum powder) concentration | 2 -4 Kg/m3 | ||
| Nominal diameter of metal screen mesh | The nominal spacing between the metal mesh is 50um, and the nominal spacing between the lines is 70nm. | ||
| Blowing sand time | 1S-99H , adjustable | ||
| Vibration time | 1S-99H, adjustable | ||
| Timing Range | 0S-99 H | ||
| Observation window | visual glass window with dust scraper | ||
| Vacuum system | equipped with a pressure gauge, air filter, pressure regulating triplex, connection pipe and vacuum pump | ||
| Vibration Device | 60W Eccentric motor | ||
| Shell material | High quality carbon steel plate, welded stiffeners around the plate to prevent noise during vibration.Surface phosphating electrostatic spraying treatment, the overall body color of computer grey; | ||
| Inner material | SUS304 Stainless steel | ||
| Chamber gate | Toughened steel glass door, easy to observe the test sample condition in the test box; | ||
| Bottom | 试 Dust replacement device at the bottom of the test box; | ||
| Control system | The sand and dust test chamber is controlled by programmable logic PLC to control the time and sequence of the dusting, vibration and vacuum system； | ||
| Dust preheating system | Stainless steel mica heating sleeve, safe and stable heat;With timing heating control | ||
| Air intake system | Air compressor intake , including air filter, pressure control device |
| Power | Dustproof socket AC 220V 16A |
| Blowing dust device | Both sides and Windows of the test box are equipped with air gun dust-blowing device. With vibration motor, all the dust is collected into the dust collector. There is no residual dust around the test box. |
| Dust removal device | The equipment is equipped with a dust removal device. After each test, the dust removal device is opened, and dust in the test box is collected in a short time to clean the air in the test box.The dust filter core can remove 0.3mu of particles at least, and the filter core can be removed and cleaned regularly |
| Self- locked door | to prevent the user from opening the test box door by mistake during the dust removal of the test box, the device is specially installed with self-locking door. The test box door cannot be opened until the equipment is opened and the dust is removed. |
| Electrical actuating components | Delixi ,Schneider ,etc |
| standard configuration | 1 test rack (stainless steel round tube is custom-made, and the bottom Angle of the cylinder is fixed, which is closely connected with the box body, and the cylinder runs without noise) and 2kg of talc powder. |

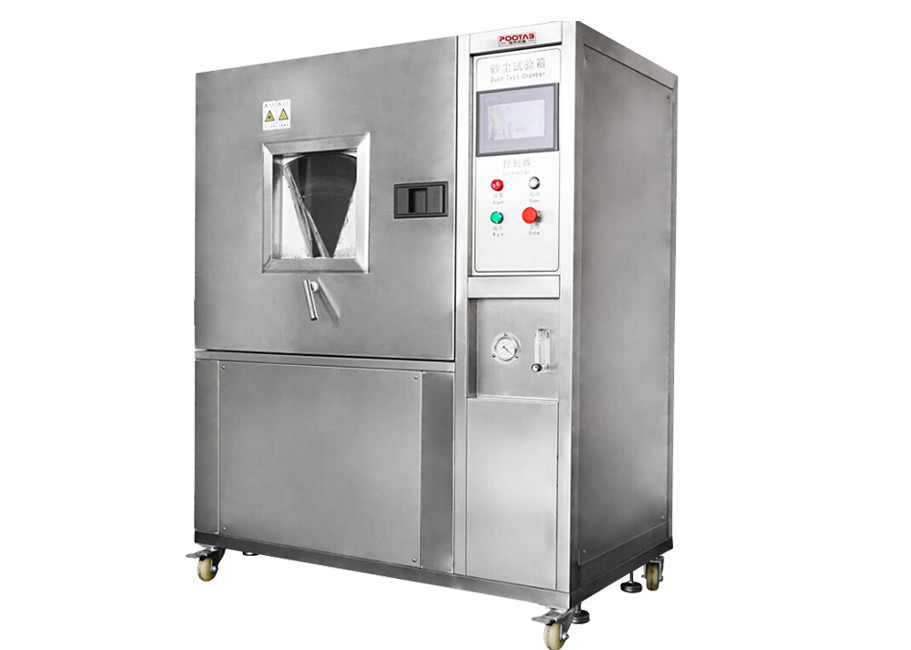

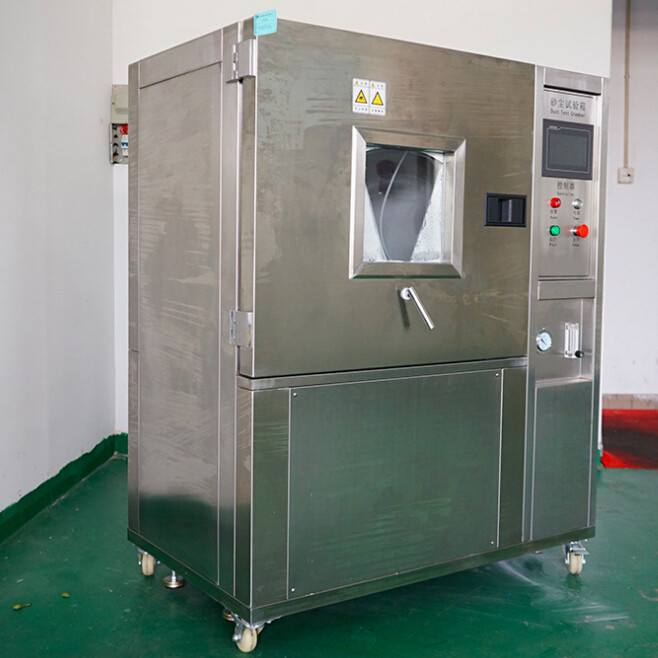

Sand Climatic Test Chamber Pictures:
