High Low Temperature Thermal Shock Test Chamber Air Cooling
Use:
The thermal shock tester is a necessary testing equipment for the metal, plastic, rubber, electronic and other material industries. It is used to test the material structure or composite material to the extent that it can withstand extremely high temperatures and extremely low temperatures in a continuous environment. It can detect the chemical changes or physical damage caused by thermal expansion and contraction of the sample in the shortest time. Divided into two-box type and three-box type.
Thermal Shock Test Chamber Features:
Thermal Shock Tester Parameters :
| Model | PT-2098A | PT-2098B | PT-2098C |
|
Test Cabinet Dimension(mm) W×D×H |
400×400×300 | 500×500×300 | 600×600×300 |
| Cabinet Outer Size (mm) | 1360×1920×2050 | 1460×2300×2200 | 1620×2320×2200 |
|
Temperature Range |
-20℃,-40℃,-70℃,-80℃~200℃ | ||
| Impact Range | 0℃,-20℃,-40℃,-60℃~80℃,100℃,150℃, | ||
| Temperature fluctuation | ±1℃ | ||
| Temperature uniformity | ≤±2℃ | ||
| Heating rate | 3℃~5℃/min (no load) | ||
| Cooling rate | 1℃~2℃/min (no load ) | ||
| Recovery time | ≤5min | ||
| High and low temperature conversion time | ≤10S | ||
| Test box specification | Two cases basket type | ||
| Cool System | Air cooled or water cooled | ||
| Temperature control system | Impoted LCD 5.7 Inch new color LCD touch controller | ||
| Refrigeration system | Compressor refrigeration system | ||
| Cooling Method | Air Cooling | ||
| Heat System | Nickel-chrome wire high efficiency heater, UL stainless steel plating heater | ||
| Inner Material | SUS #304 Stainless steel material | ||
| Outer Material | Steel plate and high spray treatment | ||
| Heat preservation material | Ultra-fine fiberglass insulation cotton | ||
| Structure | The sample frame moves up and down by means of a linear reciprocating drive system at the bottom of the box body | ||
| Protect System |
|
||
| Standard Configuration |
1. Power cord 4.0mm squared x5 pistils, low impedance rubber cable 3m long 2. Electrical schematic diagram of the equipment 3. Stainless steel SUS #304 square punch plate holder 2 pieces 4. Stainless steel adjustable spacing rack track 2 sets 5. One energy-saving lamp 6. The top of the body USES a 50mm test hole with 1 stainless steel hole cover and 1 silicone plug head.(optional) 7. One roll of weather gauze for standard test 8. One set of fuse (vulnerable parts) 9. One set of operating instructions |
Meet Standards:
1,GB/T2423.1-1989
2,GB/T2423.2-1989
3,GB/T2423.22-1989
4,GJB150.5-86
5,GJB360.7-87
6,GJB367.2-87 405

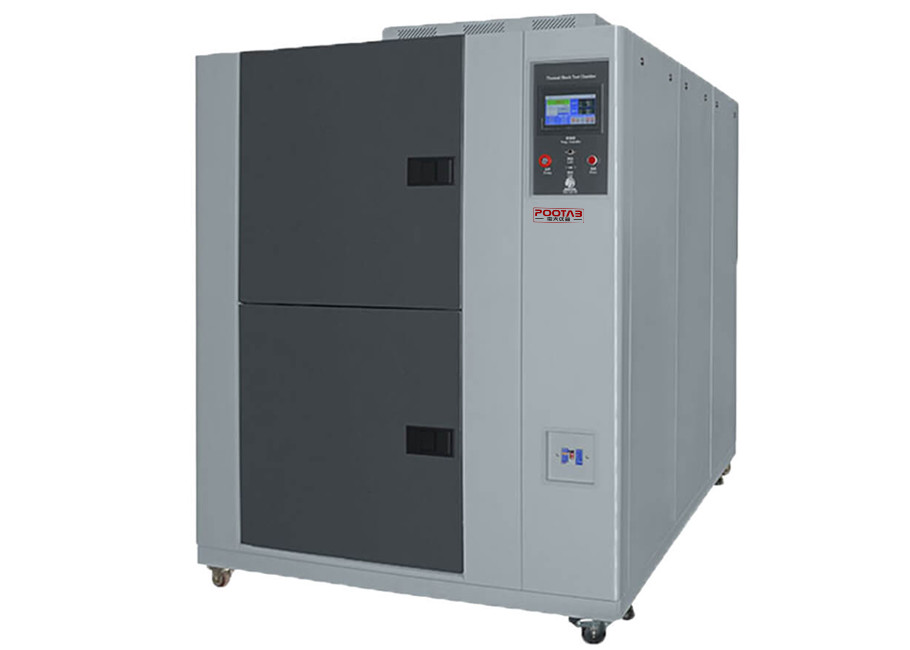

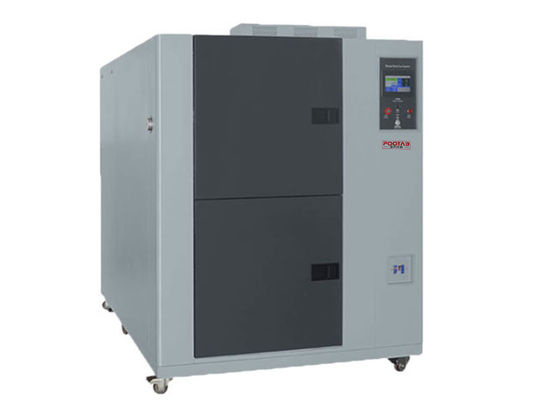

Thermal Shock Test Chamber Picture:
Chamber Inside:
