3 Box Type Thermal Shock Test Chamber 150℃ Impact Temperature
Application :3 Box Type Thermal Shock Test Chamber is use to test material structure or composite materials, in an instant time under continuous environment by the very high temperature and very low temperature can tolerate level, test in the shortest time by thermal expansion and contraction caused by chemical changes or physical damage. Applications include metal, plastic, rubber, electronics or other materials. Can be use for basis or reference as to improve their products.Divided into two-chamber and three-chamber, the difference lies in the test method and internal structure, the product conforms to the standards: GB/T2423.1-2008 test A, GB/T2423.2-2008 test B, GB-T10592-2008, GJB150 .3-198, GJB360A-96 method 107 temperature shock test requirements.
Hot Cold Impact Chamber Specifications:
| Model | PT-2099A | PT-2099B | PT-2099C | PT-2099D | PT-2099E |
| Test Space (mm) | 400×350×350 | 500×500×400 | 600×500×500 | 700×600×600 | 800×700×600 |
| Outer Cabinet (mm) | 1400×1650×1650 | 1500×1900×1750 | 1600×1950×1850 | 1700×2400×1950 | 1800×2600×2000 |
|
Temperature Range(℃) |
-20℃,-40℃,-70℃,-80℃~250℃ | ||||
| Impact Range(℃) | 0℃,-20℃,-40℃,-60℃~80℃,100℃,150℃, | ||||
| Temperature fluctuation(℃) | ±0.5℃ | ||||
| Temperature uniformity(℃) | ≤±2℃ | ||||
| Heating rate(℃) | 3℃~5℃/min (no load) | ||||
| Cooling rate(℃) | 1℃~2℃/min (no load) | ||||
| High and low temperature conversion time | ≤10S | ||||
| Recovery time | ≤5min | ||||
| Test box specification | Stationary,three-cased trial type | ||||
| Cool System | Air cooled or water cooled | ||||
| Temperature control system | Impoted LCD 5.7 Inch new color LCD touch controller | ||||
| Refrigeration system | Compressor | ||||
| Cooling Method | Air Cooling | ||||
| Heat System | Nickel-chrome wire high efficiency heater, UL stainless steel plating heater | ||||
| Inner Material | ＳＵＳ＃３０４ Stainless steel material | ||||
| Outer Material | Steel plate and high spray treatment | ||||
| Heat preservation material | Ultra-fine fiberglass insulation cotton | ||||
| Structure | The upper part is the low greenhouse, the middle is the studio, and the lower part is the high greenhouse.The test product is not moved in the working room, and the high and low temperature impact is automatically switched by pneumatic switch of the air door. The control cabinet is placed in the upper right corner for easy operation. | ||||
| Protect System |
1.Over temperature protection of test products (independent) 2.With non-fuse protection switch 3.Heater overtemperature protection switch 4.The compressor overloaded and overheated 5.High and low pressure protection of compressor 6.Overcurrent protection device of the system 7.The controller determines the fault and displays it 8.The cooling water pressure is too low for protection |
| Standard configuration |
1. Power cord 4.0mm squared x5 pistils, low impedance rubber cable 3m long 2. Electrical schematic diagram of the equipment 3. Stainless steel SUS #304 square punch plate holder 2 pieces 4. Stainless steel adjustable spacing rack track 2 sets 5. One energy-saving lamp 6. The top of the body USES a 50mm test hole with 1 stainless steel hole cover and 1 silicone plug head.(optional) 7. One roll of weather gauze for standard test 8. One set of fuse (vulnerable parts) 9. One set of operating instructions |
Follow Standards :
GB/T2423.1-1989
GB/T2423.2-1989
GB/T2423.22-1989
GJB150.5-86
GJB360.7-87
GJB367.2-87 405
SJ/T10187-91Y73
SJ/T10186-91Y73
IEC68-2-14_
GB/T 2424.13-2002
GB/T 2423.22-2002
QC/T17-92
EIA 364-32
Features :

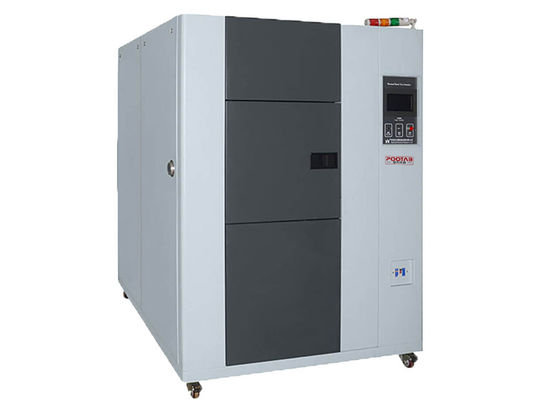

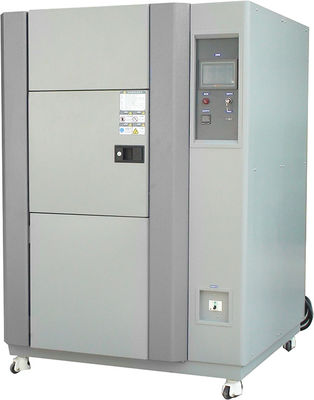

Thermal Shock Tester Refer Picture :
