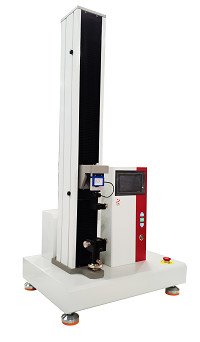

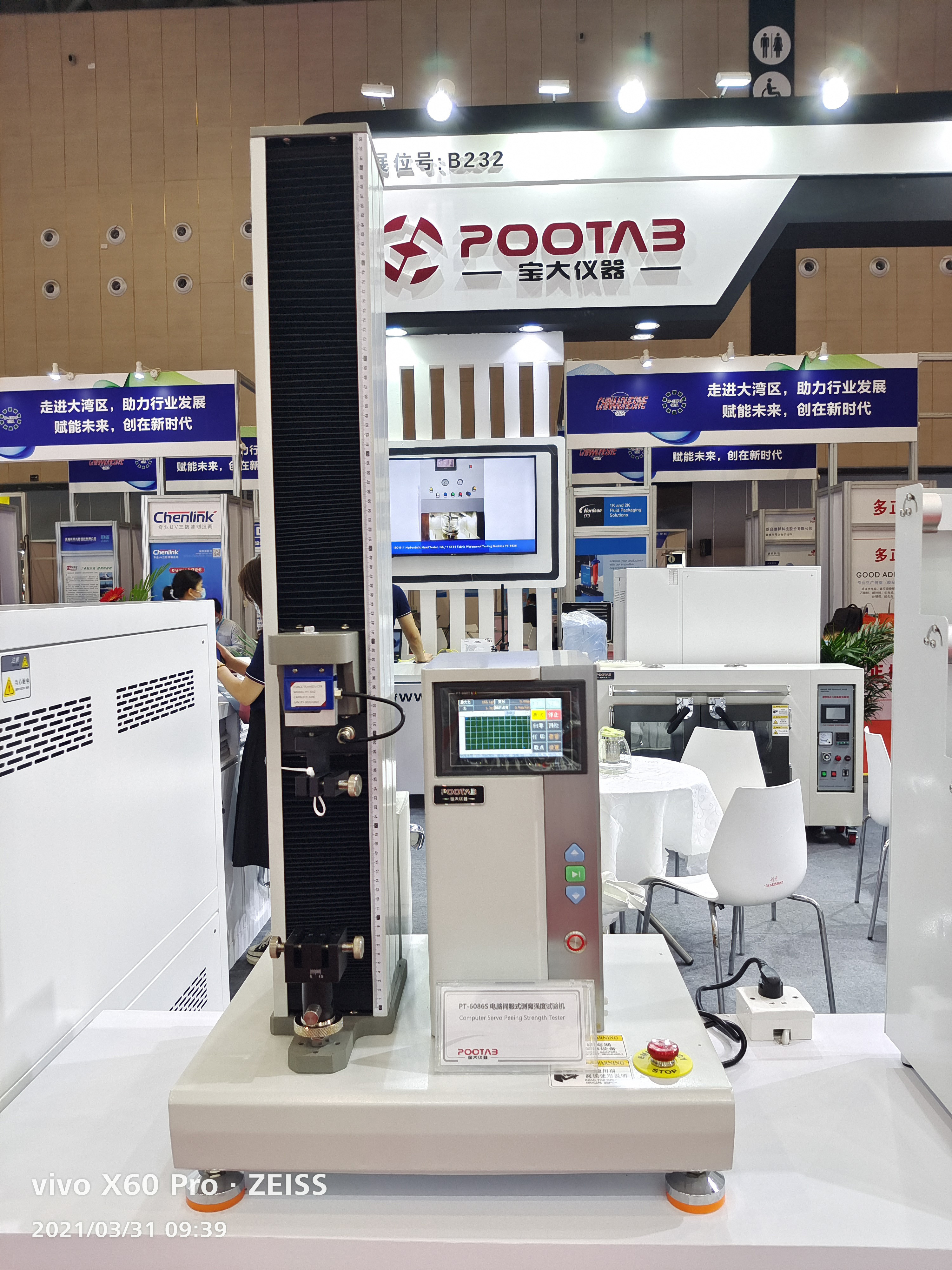

100KG Dual Display Dual Control Tension Compression Tester For Fabric
PT-1176S Double Control Tensile Testing Machine.pd...
Application :
specifications:
| Model | PT-1176S |
| Capacity | 2,5,10,20,50,100kg any one option |
| Measurement and Control Software | Windows Professional Sofeware |
| Measurement Accuracy | Better than ±0.5% |
| Force Resolution | 1/500,000 |
| Effective Range of Measurement | 0.5~100%F.S |
| Deformation Display Accuracy | Better ±0.5% |
| Test Speed | 0.01～1000mm/min,free set |
| Max Test Stroke | Max 650mm(Extended 1000mm,customized),not includes gripper |
| Effective Test Space | Dia 120mm |
| Unit Switch | A variety of measurement units including international units |
| Stop Method | Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure |
| Special Function | The holding, holding and fatigue testing can be done |
| Standard Configuration | 180° peel fixture 1 set , 3 pieces peel steel plates (50*150mm),PT-6020 manual rolling wheel 1 piece, software and RS232 data line 1 sets, 1 sets of equipment power supply, CD 1 CD-ROM operating instructions, product certification 1 copies, 1 copies of product warranty card |
| Purchase Configuration | 90° peel fixture ,loop tack fixture, business computer , color printer , kinds of test fixtures |
| Machine Size | About 57×47×120cm(W×D×H) |
| Machine Weight | About 70kg |
| Motor | AC Servo Motor |
| Control Method | Double Display Double Control(Touch Screen) |
| Power | 1PH,AC220V,50Hz,10A or specified |
Machine Features :
Machine:
