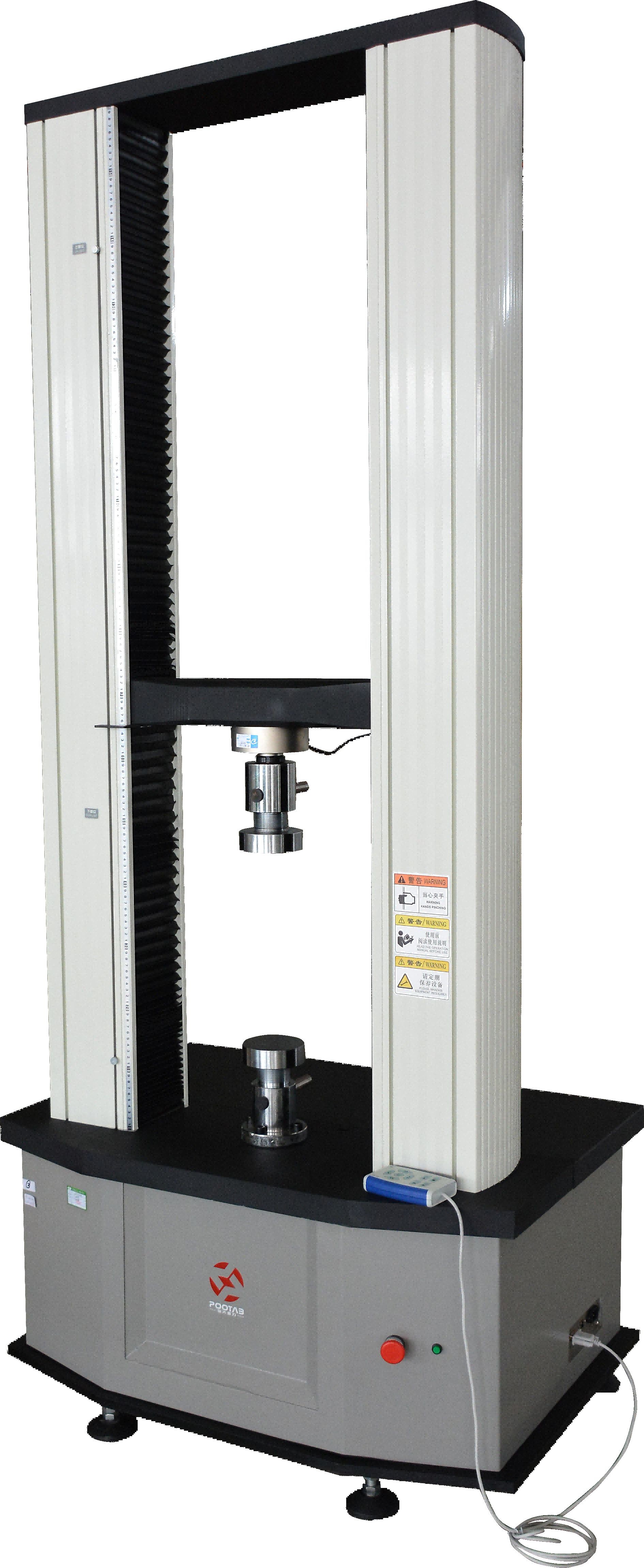

The PT-1100-100 Universal Testing Machine is a computer-controlled device used for various material testing purposes. It offers high precision and advanced features to provide accurate and reliable tensile, compression, and bending testing capabilities. Equipped with professional testing software, it complies with over thirty national standards, including GB228-87 and GB228-2002, and supports testing and data processing according to various standards such as GB, ISO, JIS, ASTM, DIN, and user-defined standards. With its versatility and expandability, it is an ideal choice for quality control, research and development, educational experiments, and material testing in industries such as manufacturing, construction, automotive, aerospace, and more.
| Parameter | Value |
|---|---|
| Maximum Testing Force | 100 kN |
| Testing Force Measurement Range | 0.4% - 100% |
| Testing Force Indication Accuracy | Better than ±1% of the indicated value |
| Testing Force Resolution | 1/300000 (full range or equivalent to 6 levels) |
| Beam Displacement Measurement Accuracy | Resolution higher than 0.0025 mm |
| Deformation Measurement Accuracy | ±0.5% (within the range of 0.2 - 10 mm) |
| Testing Speed Range | 0.01 - 500 mm/min, infinitely adjustable |
| Speed Control Accuracy | ±1% (0.01 - 10 mm/min); ±0.5% (10 - 500 mm/min) |
| Constant Force, Constant Deformation, Constant Displacement Control Range | 0.2% - 100% FS |
| Constant Force, Constant Deformation, Constant Displacement Control Accuracy | |
| - When set value < 10% FS | Within ±1.0% of the set value |
| - When set value ≥ 10% FS | Within ±0.1% of the set value |
| Deformation Rate Control Accuracy | |
| - Rate < 0.05% FS | Within ±2.0% of the set value |
| - Rate ≥ 0.05% FS | Within ±0.5% of the set value |
| Testing Space | A. Tensile Space: 600 mm B. Compression Space: 700 mm |
| Fixture Types | Wedge Fixture, Flat Jaw (0-7 mm), Round Jaw (Ø4-Ø7 mm) |
| Pressure Plate Size | φ100 mm |
| Bending Test Support Roller Spacing | 300 mm |
| Support Roller Width | 100 mm |
| Support Point Diameter | φ30 mm |
| Power Supply | Single-phase, 220V±10%, 50Hz, Power: 3 kW |
| Operating Environment | Ambient temperature -35°C, relative humidity not exceeding 80% |
| Main Unit Dimensions | Approximately 830 × 550 × 2000 mm |
| Weight | Approximately 720 kg |
The PT-1100-100 Universal Testing Machine is widely used in various industries and research institutions for material testing purposes. It can be applied in the following areas:
Quality control and inspection of materials
Mechanical properties testing of metals, plastics, composites, and other materials
Tensile, compression, bending, and shear testing
Research and development of new materials
Educational and academic experiments
We provide comprehensive support and services for the PT-1100-100 Universal Testing Machine, including:
Installation and setup assistance
Training on machine operation and software usage
Calibration and maintenance services
Technical support for troubleshooting and inquiries
Spare parts and accessories availability
How accurate is the testing force measurement?
The testing force measurement accuracy is better than ±1% of the indicated value.
Can the machine test different types of materials?
Yes, the machine is suitable for testing various materials such as metals, plastics, composites, etc.
What is the maximum testing speed?
The testing speed range is from 0.01 mm/min to 500 mm/min, with infinite adjustability.
