Computer Controlled Tensile Compression Testing Machine Curve Display 500N
Application :
This computer controlled tensile compression testing machine is suitable for all kinds of tape, adhesive products, plastic film, composite tension, electronic, textile, rubber, plastic, synthetic leather, metal and other industries such as tension and products to do test of stretching, compression, bending, shearing, peeling (90 Degree and 180 degrees), tearing, two-point extension (extensometer is required separately), elongation at break, constant elongation, constant stress elongation, ring initial adhesion test, constant stress value adhesion force and peak value Calculated value) and other tests.
Machine Parameters:
| Model | PT-1171B Computer Controlled Tensile Compression Testing Machine Curve Display 500N |
| Capacity | 20N,50N,100N,200N,500N,1000N,2000N optional |
| Measurement Software | CI701G for computer |
| Force Accuracy | ±1% |
| Force Resolution | 1/200,000 |
|
Measurement Range |
1~100%F.S |
| Deformation Display Accuracy | ±1% |
| Test Speed | 1～500mm/min,can be set freely |
| Test Travel | Max 650mm,exclude grip |
| Effective Test Space | Front back 120mm,left right ∝ |
| Unit Switch | A variety of measurement units including international units |
| Stop Method | Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure |
| Standard Configuration | software and data line 1 sets, 1 sets of equipment power supply, operating instructions user manual, 1 product certification , 1 product warranty card |
| Purchase Configuration | Business computer , printer , various test grips |
| Machine Size | About 57×47×120cm(W×D×H) |
| Machine Weight | About 55kg |
| Motor | Stepper Motor |
| Power Supply | AC220V,50/60Hz,10A or as specified |
Software Features :
1. Windows platform, parameter setting all click, simple operation;
2. Single screen operation, no screen switching
3. Software interface with simplified Chinese, traditional Chinese and English three languages, easy to switch;
4. Can test the form mode by itself.
5. Test data can be directly called in the main screen;
6. With a variety of units of measurement, the metric system can be switched;
7. The data of multiple curves can be compared simultaneously.
8. Automatic return
9. Automatic correction
10. Custom test method.
11. Test data operation and analysis
12. Automatic magnification to achieve the most appropriate size of the graphics;
13. It can be used for tensile test, compress test, bending test, stripping test, tension test, pressure test and fatigue test.

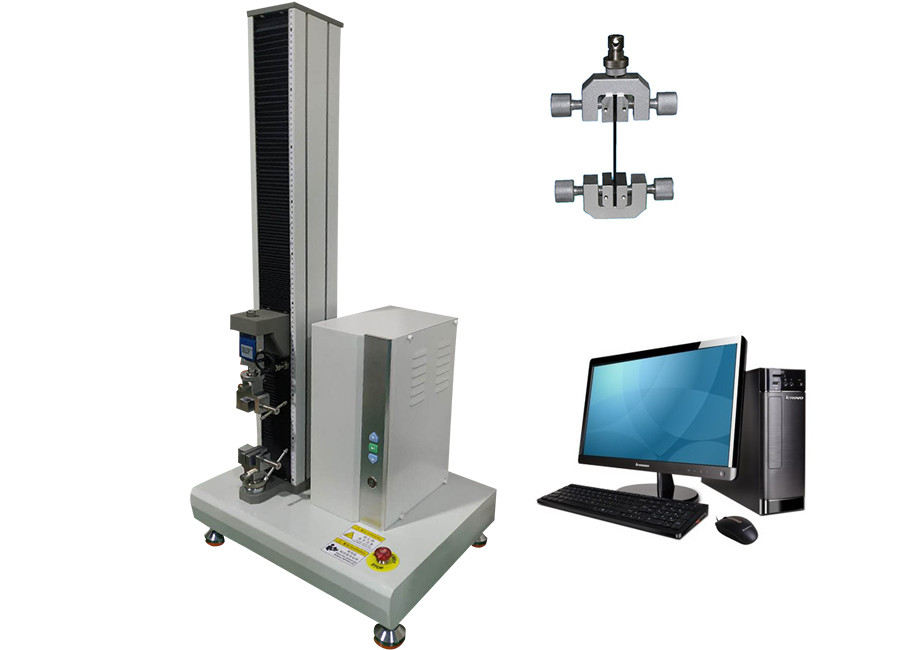

Detail Pictures Of Computer Controlled Tensile Compression Testing Machine :

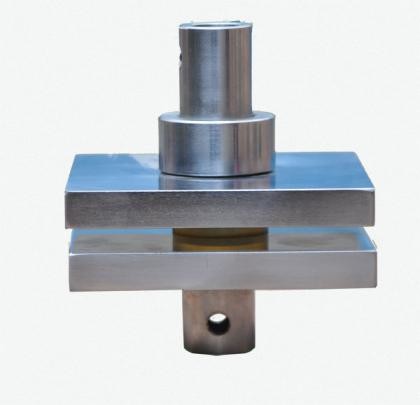

This tensile compression testing equipment also could be equipped with many other grips for other tests :
