PT-8216 Computer Servo Container Compression Tester
PT-8216 Container Compression Tester.pdf
Applications : PT-8216 Computer System Container Compression Tester shall be used for testing resistance about all kinds of packaging body and cartons, the result would be regarded as the important references of the height of piling up the cartons and design the cartons.
It is an ideal testing & research equipment for all factories, technical supervision departments, commodity inspection agencies, scientific research institutes and college and academy.
Features:

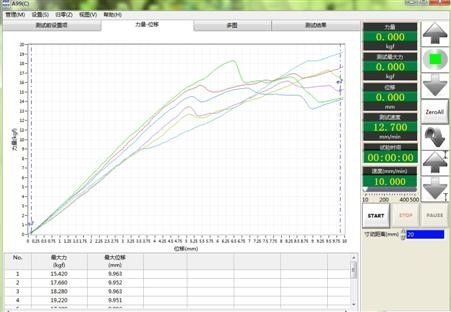

The structure of the machine adopts aluminum extrusion sealing plate with high precision, low resistance, no clearance ball screw and guide column;The data collection and operation speed of the measurement and control system is high. The test results can be read directly by the LCD screen or printed out by the printer. Pressure holding test can be carried out
| Model | PT-8211M | PT-8211A | PT-8211B | PT-8211C |
| Load Cell Capacity | 1000,2000,5000kgf , any one option | |||
| Display | LCD Screen | |||
| Force Accuracy | ±1.0% | |||
| Force Resolution | 1/10,000 | |||
| Effective Force Measurement Range | 1~100%F.S | |||
| Accuracy Of Deformation Indication | ±1.0% | |||
| Test Speed | 5～200mm/min,free set | |||
|
Test Space (W×D×H) |
60*60*60cm 80*80*80cm |
100*100*100cm
|
12*120*120cm |
150*150*150cm
|
| Stop Way | Upper and lower limit safety setting, emergency stop key, program strength and elongation setting, specimen failure detection | |||
| Special Function | Pressure Holding Test | |||
| Configuration Purchase Option | Machine pedestal *1 | No | ||
|
Machine Size (W×D×H) |
92*60*144cm 125*80*148cm |
142*100*171 cm
|
162*120*191 cm
|
200*150*218 cm
|
| Machine Weight | About 150kg | About 350kg | About 400kg | About 500kg |
| Motor | DC Motor | |||
| Electric Power | 1PH,AC220V,50/60Hz,15A or as request | |||

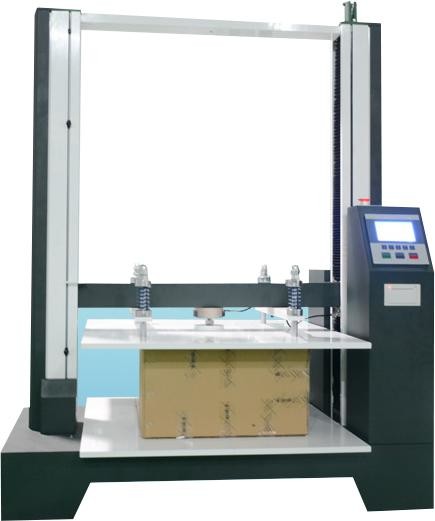

Picture:
