Product Details:
Payment & Shipping Terms:
|
| Temperature Controller: | P.I.D. Automatic Calculation | Temperature Resolution: | 0.1℃ |
|---|---|---|---|
| Inner Dimensions: | 50×50×60 Cm | Timer: | 0～999.9 Hours/Minutes, Electronic Display, Power Failure Memory Type, Buzzer |
| Control Accuracy: | ±0.3 ℃ (Drying, Aging) | Inside Material: | SUS#304 Stainless Steel |
| Temperature Range: | RT 5 ℃ To 200 ℃ | ||
| High Light: | accelerated aging chamber,uv aging chamber,ASTM D1148 Aging Oven |
||

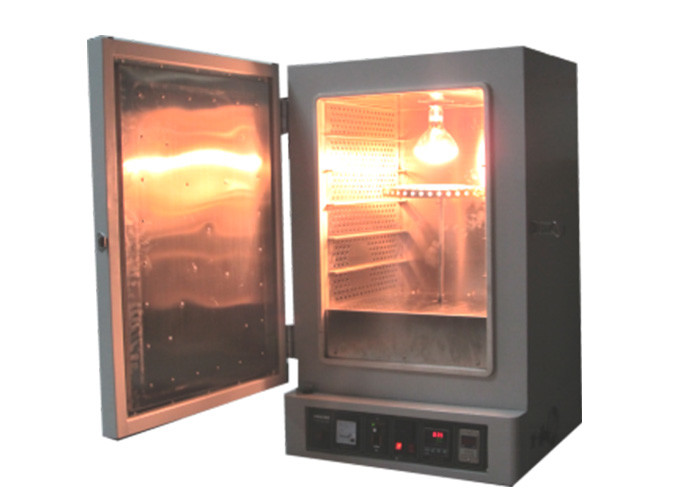

ASTM D1148 Aging Oven Yellow Resistant Testing Chamber With High Temperature
Aging Oven Descroption :
Aging Oven Yellow Resistant Testing Chamber is the test equipment to provide the sun's heat and ultraviolet radiation simulation environment, use on yellowing accelerated testing of materials (normally test specimen put into test cabinet for 3 hours and set at 70℃ will equivalent in the natural environment 2 months yellowing results). Operator can take gray scale for staining as reference to determine the level of yellowing of materials; also can visual observation the degree of yellowing of specimen. if Aging Test Cabinet Yellow Resistant Tester remove UV light source, can be used for aging oven or drying oven.
Yellow Resistant Testing Chamber Specification :
| Chamber Name | ASTM D1148 Aging Oven Yellow Resistant Testing Chamber With High Temperature | |
| Model No. | PT-2030A | PT-2030B |
| Inner Dimensions | 50×50×60 cm (W×D×H) | 51×32×26 cm (W×D×H) |
| Dimensions | 67×62×111 cm (W×D×H) | 68×34×37 cm (W×D×H) |
| Temperature Range | Room temperature (+5℃)～200℃ | Room temperature |
| Temperature Controller | P.I.D. Automatic Calculation | |
| Temperature Resolution | 0.1℃ | |
| Control Accuracy | ±0.3 ℃ (Drying, aging) | |
| Distribution Accuracy | ±1% (1℃) at-room 100℃ | |
| Timer | 0～999.9 Hours/Minutes, Electronic display, Power failure memory type, Buzzer | |
| Compartment tray | Dia. 45cm, 3 R.P.M, Height-adjustable | 2 layer,Height not adjustable |
| UV light source | Light bulb, UV/300W,with Bulb life timer | Light Tube X 2,15W |
| Standard Accessories | Shelves x 2 | |
| Heating Mode | Heated air circulation | |
| Safety Protection | Independent EGO over-temperature power failure, safety overload switch | |
| Oven Body Material | Outside is paint coating, inside is SUS#304 stainless steel | |
| Weight | About 80kg | About 12kg |
| Power | 1PH,AC220V,15A | 1PH,AC220V, 1A |
