| Machine Item: | Metal Tension Testing Machine | Load Cell: | 1KN，2KN，5KN，10KN，20KN |
|---|---|---|---|
| Speed Range: | 0.05～1000mm/min | Test Travel: | Max 1000mm |
| Effective Test Space: | Front Back No Limit，left Right 400mm | Test Content: | Tensile Test Of Metallic Materials，yield Strength, Yield Point Elongation, Tensile Strength, Elongation And Reduction Of Area |
| High Light: | ASTM E8 Tension Testing Machine,Metallic Materials Yield Strength Test,Metallic Materials Tension Testing Machine |
||
ASTM E8 Tension Testing Machine For Metallic Materials Yield Strength Test With Metal Extensomter
Applications :
This Tension Testing Machine For Metallic Materials is used for tensile test of metal materials of any shape at room temperature. Especially for the determination of yield strength, yield point elongation, tensile strength, elongation and reduction of area.
Metal Materials Specimen :
thin plates, plates, wires, round bars, bars, metal tubes.The sample forms are rectangular and circular cross-section samples.
Apparatus :
Universal testing machine, tensile testing equipment, for testing tensile strength and yield strength, could with wedge fixture, metal extensometer.
Metal Tension Testing Machine Parameters :
| Model | PT-1166 ASTM E8 Tension Testing Machine For Metallic Materials Yield Strength Test With Metal Extensomter |
| Capacity | 2,5,10,20,50,100,200,500,1000,2000kgf, any one option |
| Software | Windows software, core I3,I5,I6,I7,I8, WIN 7,8,9,10 |
| Force Accuracy | ±0.5%(GB/T 16491-2008) |
| Test Speed | 0.05～1000mm/min,free set |
| Test Travel | Max 1000mm,exclude fixture/grip |
| Effective Test Space | Front back no limit,left right 400mm |
| Unit Switch | kgf,gf ,N,kN,Ibf,MPa,kPa,kgf/cm2,Ibf/in2,mm,cm,in |
| Stop Method | Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure |
| Standard Configuration |
software and data line 1 sets, sets of equipment power supply, operating instructions user manual, 1 product certification , 1 product warranty card |
| Purchase Configuration | Business computer , printer , various test grips,purchase separtely |
| Size | About 76×46×160cm(W×D×H) |
| Weight | About 160kg |
| Motor | Panasonic AC servo motor |
| Power Supply | 1PH,AC220V,50/60Hz,10A or as specified |
ASTM E8 Metal Tension Testing Standard Content :

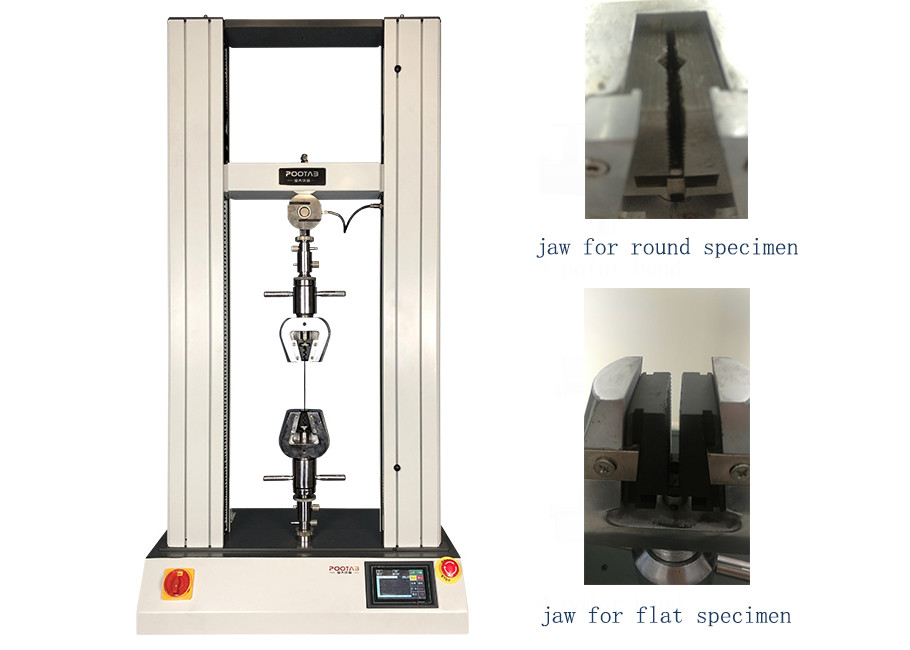

Refer Picture Of Metal Tension Testing Machine :
Testing software for computer:

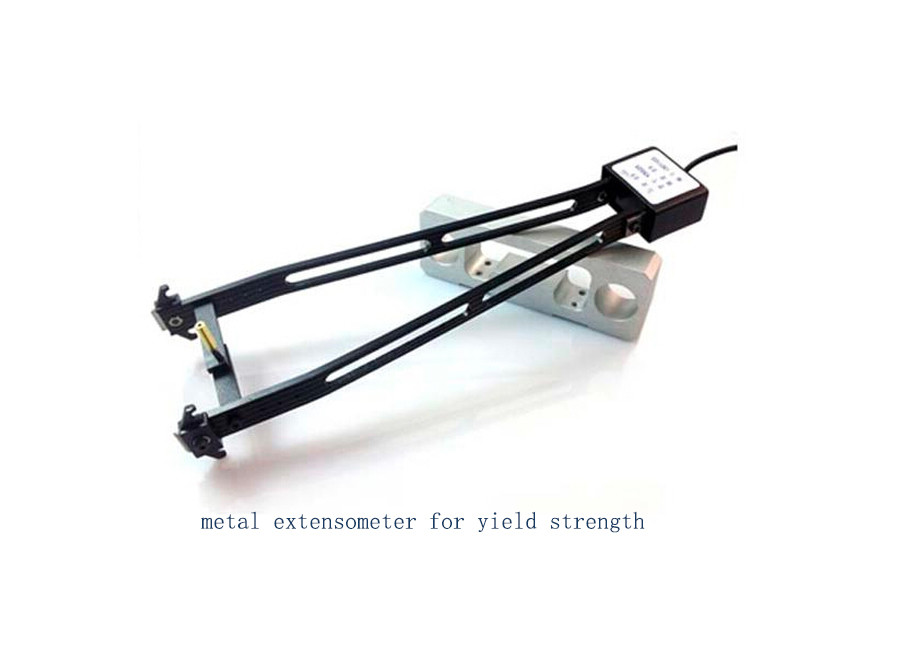

Tensile Clamp/Grip Jaw & Metal Extensometer :
