LCD Touch Screen Salt Spray Cyclic Test Chamber , Lab Corrosion Testing Machine
PT-2070 salt spray test machine.pdf
Purpose:
This corrosion test chamber has a standardized test method to check corrosion resistence of coated samples. Salt spray test is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have different behaviour in salt spray test and consequently, test duration will differ from one type of coating to another.
Salt Spray Cyclic Test Chambe Features:
Specifications:
| Item Name | LCD Touch Screen Salt Spray Cyclic Test Chamber , Lab Corrosion Testing Machine | ||
| Model | PT-2070A | PT-2070B | |
| Test Space | 60x45x40 cm (WxDxH) | 90x60x50 cm (WxDxH) | |
| Dimensions | 114x76x119 cm (WxDxH) | 142x78x128 cm (WxDxH) | |
| Temperature Range | Room Temperature ~ 80℃ | ||
| Control Method | P.I.D automatic Temperature Calculation control | ||
| Temperature Resolution | 0.1℃ | ||
| Temperature Control Accuracy | ±0.3℃ | ||
| Temperature Distribution Accuracy | ±1℃ | ||
| Timer | 0~999.9 hours (minutes) digital display | ||
| Accessories | Test Salt, Graduated Cylinder, Tools | ||
| Safety Protection | Independent EGO over-temperature power failure, safety overload switch | ||
| Spray Volume | 1~10c.c./Hour | ||
| Volume of Test Space | 108 liters | 270 liters | |
| Salt Sump | Volume | 15 liters | 30 liters |
| Test Time | 90 hours | 180 hours | |
|
Specimen 150x70mm |
Tilted 15° | 24 pieces | 48 pieces |
| Tilted 30° | 15 pieces | 30 pieces | |
| Material | F.R.P. | ||
| Weight | About 60 kg | About 150 kg | |
| Power | 1PH,AC220V,50/60Hz,6KW | 1PH,AC220V,50/60Hz,3KW | |
| Meet Stands | GB/T10125/10587,ASTM B117/B287,JIS Z2371,CNS3627 | ||
More Size To Choose:
| Model No. | Test Size | Test Room Capacity |
| PT-2070C | 100*70*50cm | 350L |
| PT-2070D | 120*100*50cm | 600L |
| PT-2070E | 160*100*50cm | 800L |
Corrosion Test Chamber Principles Map

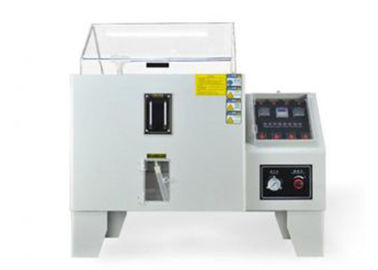

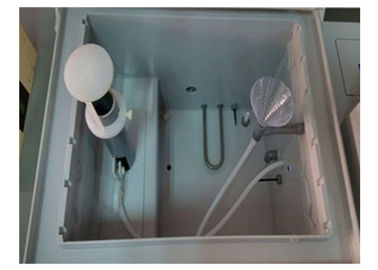

Product Photo :
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:
15-20 days after confirming order,detail delivery date should be decided according to production season and order
