Electric Cycling Salt Spray Test Chamber Corrosion Resistance LCD Touch Screen
PT-2070 salt spray test machine.pdf
Product Introduction :
Electric Cycling Salt Spray Test Chamber is against all kind material after anti-corrosion treatment then to test its corrosion resistance.It is ideal for testing the resistance to salt spray corrosion of some products by measuring and comparing similar materials, their usability quality. It is applicable to test salt spray corrosion resistance of such products as parts, electronic components,protective layer of metallic material and industrial products
Salt Spray Chamber Characteristics:
A. LCD display and a pid controller or touch screen programmable controller.
B. Entire PVC sheet material, the internal ring with the use of advanced three-dimensional flutter high technology products, strong structure, fresh, never deformation and acid and alkali, high temperature and never aging, for salt spray, copper acetate, and other test specifications.
C. Controller are in the same panel, the operation simple and clear.
D. Neutral salt spray (NSS), acetic acid salt spray ( AASS ), copper accelerated salt spray ( CASS ) either of the test laboratory
Detailed Paraments:
| Item Name | Electric Cycling Salt Spray Test Chamber Corrosion Resistance LCD Touch Screen | ||
| Model | PT-2070A | PT-2070B | |
| Test Space | 60x45x40 cm (WxDxH) | 90x60x50 cm (WxDxH) | |
| Dimensions | 114x76x119 cm (WxDxH) | 142x78x128 cm (WxDxH) | |
| Temperature Range | Room Temperature ~ 80℃ | ||
| Control Method | P.I.D automatic Temperature Calculation control | ||
| Temperature Resolution | 0.1℃ | ||
| Temperature Control Accuracy | ±0.3℃ | ||
| Temperature Distribution Accuracy | ±1℃ | ||
| Timer | 0~999.9 hours (minutes) digital display | ||
| Accessories | Test Salt, Graduated Cylinder, Tools | ||
| Safety Protection | Independent EGO over-temperature power failure, safety overload switch | ||
| Spray Volume | 1~10c.c./Hour | ||
| Volume of Test Space | 108 liters | 270 liters | |
| Salt Sump | Volume | 15 liters | 30 liters |
| Test Time | 90 hours | 180 hours | |
|
Specimen 150x70mm |
Tilted 15° | 24 pieces | 48 pieces |
| Tilted 30° | 15 pieces | 30 pieces | |
| Material | F.R.P. | ||
| Weight | About 60 kg | About 150 kg | |
| Power | 1PH,AC220V,50/60Hz,6KW | 1PH,AC220V,50/60Hz,3KW | |
More Type Option:
| Model No. | Test Size | Test Room Capacity |
| PT-2070C | 100*70*50cm | 350L |
| PT-2070D | 120*100*50cm | 600L |
| PT-2070E | 160*100*50cm | 800L |

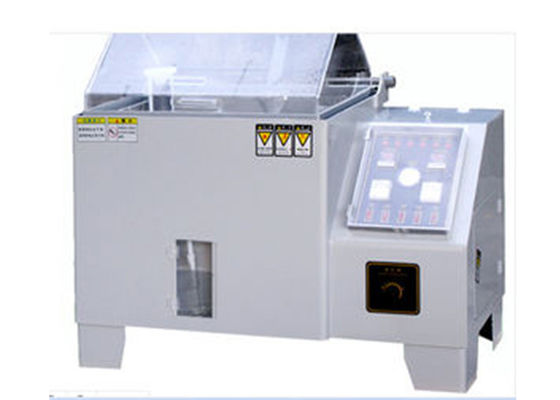

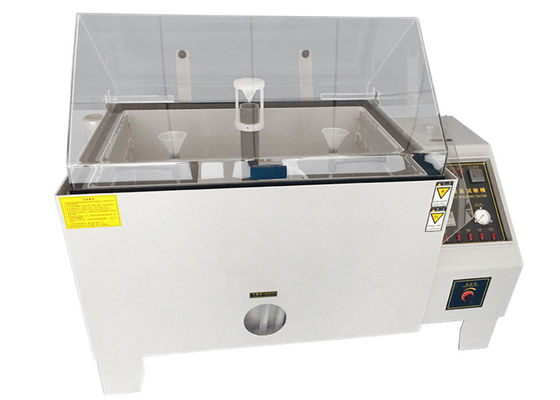

Salt Spray Test Chamber Pictures:
FAQ
Q1: Are you a factory or trading company?
A: We are a factory which has specialized in the production of various dynamics testing instruments and instruments, with more than 20 years of production experience and 3 years of export experience.
Q2: Where is the loading port?
A: Shenzhen Port.
Q3: What's the MOQ of the product?
A: Different items have different MOQ. Welcome to contact our sales for getting more details.
Q4: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q5: How long is the production cycle after ordering?
A: General it is about 15-30 days. We will send the time according to the order’s quantity.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:
15-20 days after confirming order,detail delivery date should be decided according to production season and order
