Constant Temperature Humidity Test Chamber , Temperature Controlled Chamber 225 Liters

Constant Temperature Humidity Test Chamber , Temperature Controlled Chamber 225 Liters
Constant Temperature Humidity Test Chamber , Temperature Controlled Chamber 225 Liters

Large Image :  Constant Temperature Humidity Test Chamber , Temperature Controlled Chamber 225 Liters

Product Details:

Place of Origin: Guangdong , China
Brand Name: PERFECT
Certification: ISO9001
Model Number: PT-2091C

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard exported wooden case
Delivery Time: 20-25 Days Afer Deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 Sets Per Month
Detailed Product Description
Humidity Range: 20%R.H ~ 98%R.H .Normal Temperature Range: -20℃ ~ 150℃(lowest About -70℃)
Inner Material: SUS#304 Stainless Steel. Outer Material: Spray Color Galvanized Steel Sheet.
Inner Cabinet (mm): 50×60×75cm And Other Sizes Insulation Materials: Ultra-fine Glass Fiber Insulation Cotton.
Cooling Rate (℃): 0.7 ~ 1℃/min (No-load) Port: Shenzhen, Guangzhou,HK
High Light:

high temperature test chamber

,

temperature humidity test equipment

Contant Temperature Humidity Test Chamber 225 Liters Lab Testing Equipment





Test Chamer Application:



This 225 Liters constant temperature humidity test chamber for lab is mainly used for products in accordance with the requirements of the national standard or user-defined requirements, at low temperatures, high temperature, humidity and temperature cycling conditions, physical and other relevant characteristics of the product environmental simulation test, after tested by detecting to judge the performance of the product, it is still able to meet predetermined requirements in order for the product design, improvement, identification and factory inspection use.





Temperature Humidity Test Chamber 225 Liters Deatil Specification



Model No. PT-2091A PT-2091B PT-2091C PT-2091D

PT-2091E

PT-2091F

Product Name  Contant Temperature Humidity Test Chamber 225 Liters Lab Testing Equipment
Inner Cabinet (cm) 40×40×50 50×50×60 50×60×75 60×80×85

E:100×80×100

F: 100×100×100



Temperature Range (℃) F: -20℃, L: -40℃, T: -60℃, G: -70℃ ~ 150℃
Humidity Range (%RH) 20%R.H ~ 98%R.H
Temperature Fluctuation (℃) ±0.5℃
Temperature uniformity (℃) ≤ ±2℃
Humidity fluctuation (%RH) ±2.5%RH
Humidity uniformity (%RH)
  • > 75%RH: ≤+2, -3%RH;
  • <75%RH: ≤±5%RH
Heating rate (℃) 3℃/min (No-load)
Cooling rate (℃) 0.7 ~ 1℃/min (No-load)
Temperature and humidity control system Imported LCD digital display controller.
Heated Humidification system Nichrome wire-efficiency heater, UL-shaped stainless steel plating heater
Cooling System
  • Compressor: French imported hermetic compressors.
  • Refrigerant: Environmentally friendly refrigerant R404A, the destruction of the ozone layer was 0 (ODP = 0.00).
  • Condenser: Fin-type with the cooling motor.
  • Evaporator: Fin-type multi-stage automatic load capacity adjustment.
  • Other accessories: Desiccant, repair valves, solenoid valves in Japan.
  • Expansion systems: Capacity automatic control throttling of the refrigeration system.
Inner Material SUS#304 stainless steel.
Outer Material Spray color galvanized steel sheet.
Insulation Materials Ultra-fine glass fiber insulation cotton.
Communication Equipped with a standard RS232C / RS485 communication interface, the maximum transmission distance of 1.2Km, the fastest communications up to 9600bps, can be realized with a computer connected to the remote monitoring, easy to operate.
Subsidiary function Fault alarm and reason prompts, you can change the name of the fault, the upper temperature limit protection, timing and the reservation (automatic stop and start function), multiple (up to 6 groups) PID temperature control separate segments, curve display and save the function display PV curve 0-8 days. Temperature can be set according to the linear operation (liters can set per hour up / cooling rate).
Standard configuration
  • Power cable 4.0 mm² x 5 cores, low-impedance rubber cable 3m x 1.
  • SUS # 304 square punching stainless steel shelf x 2.
  • Stainless steel adjustable shelf track pitch of 2 groups.
  • An energy-efficient lighting.
  • Machine left Փ50mm a test hole attached stainless steel manhole cover, and with a silica gel plug.
  • Standard Test Meteorological gauze Volume x 1.
  • Fuse set x 1 set (wearing parts).
  • Operation Manual x 1.





225L  Temperature Humidity Chamer Features:



  • Under same volume have a larger place space and load heat.
  • Using US new PWM refrigerant control technology to achieve low energy-saving operation.
  • To prevent test samples will not dew condensation control conditions.
  • Communication configuration RS232 interface and USB storage download functions.
  • Machines with multiple alert monitor, configure the wireless remote alarm functions.
  • The safest water systems and renewable water loop circulation system.
  • Humidity Effects can reach 15℃ / 5% RH performance, dehumidification speed fast.
  • To prevent static electricity-saving ability to achieve the industry's best performance.

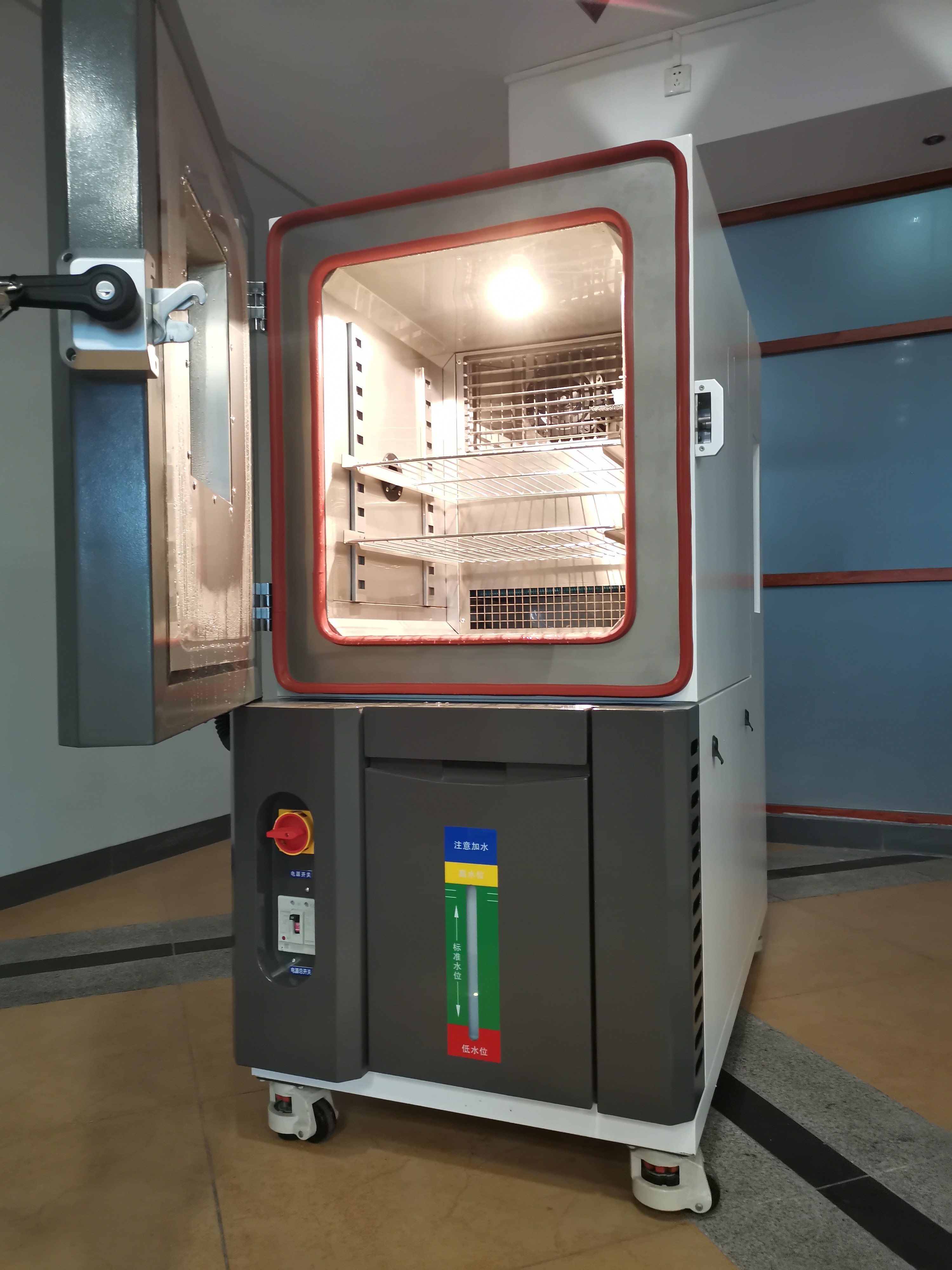

225 Liters Test Chamber Referring Picture:



Constant Temperature Humidity Test Chamber , Temperature Controlled Chamber 225 Liters 0





Appearance Didplay:



No. Name Explanation
1 Observation window For the customer to observe the status of the object which is being tested
2 Test area Area for putting the test object
3 Controlling table Interface for operating the machine
4 Right side of the machine Build-in power device
5 Door handle For fixing and connecting the door and machine





Work principle:



1. The controlling system for adjusting temperature and humidity evenly controls SSR through PID. It             makes the heating and moisture content equal the loss of heating and moisture


2. The dry and wet balls are used for measuring temperature signal by comparing the A/D conversion input controller CPU and RAN, and input to I/O board. The I/O board gives commands and instructions to operate air circulation system and cooling and freezing system, meanwhile, PID controls SSR, or heats or humidifies SSR for operation in order to make the hot and wet content deliver to the test box evenly through air circulation system, and finally achieve the purpose of adjusting the temperature and humidity evenly
