200kg Double Control Display Electronic Universal Testing Machine For Various Materials

1 Set
200kg Double Control Display Electronic Universal Testing Machine For Various Materials
Features Gallery Product Description Request A Quote
Capacity: 2、5、10、20、50、100、200、500kgf Option
Max Stroke: 650mm ,extended 1000mm
Unit Switchover:: G, KG, N, LB
Power: 1PH,AC 220V,50Hz,10A
Software Control: Windows XP Operating System
Optional Configuration: Printer ,Fixtures
Test Speed: 10~500 Mm/min
Motor: Servo Motor
Packaging: Wooden Case
Port: Shenzhen,Guangzhou
High Light:

tensile strength machine


tensile testing equipment

Basic Infomation
Place of Origin: Donggguan,Guangdong,China
Brand Name: PERFECT
Certification: ISO9001
Model Number: PT-1176S
Payment & Shipping Terms
Packaging Details: Packed Strong Wooden Case
Delivery Time: 7-10 working days after order confirmed
Payment Terms: T/T, , Western Union, L/C
Supply Ability: 100 Sets Per Month
Product Description

Double Control Display Electronic Universal Testing Machine For Various Materials

PT-1176S Double Control Tensile Testing Machine.pd...



Apparatus Application :


Double Control Display Test Machine is suitable for various materials, including finished goods and semi-finished goods. Take differences grippers can test tensile strength, tensile elongation, compression, bending, puncture, splitting, tearing, shearing and adhesive force etc.Customer can choose to connect to the computer or not. It is doule use.



Detailed Specifications:


Item Name Double Control Display Test Machine Apparatus for Wire Cable Tensile Testing 5 KN
Product model PT-1176S
Capacity  max. 500kg
Software of testing and controlling Special testing software on Windows2000/xp
Correctness of testing force Better than±0.5%
Resolution of testing force 1/500,000
Effectual range of testing force 0.5~100%F.S
Correctness of distortion reading Better than±0.5%
Speed range of testing 0.5~500mm/min
Maximal distance of testing 650mm,( not including clamp)
Effective testing space In front and back∝,Left and right to120mm
switching Units Various of measuring units including international units, user can customise the necessary units
stopping mode Set the limits of security,urgent stop key,programmable force and elongation setting,specimen damage sensing
Special functions can do the tests of extension&compression endurance
Standard collocation Standard gripper*1,software and USB cable*1,power line *1,CD operating instruction*1,work certificate*1,warranty card*1
Optional collocation Computer*1,color printer*1,different grippers
Dimension of main body About 57×47×100cm(W×D×H)
Weight of main body About 70kg
Motivity Ac servo motor
Power supply 1PH,AC220V,50Hz,10A
Remarks Do not include the computer,can be chose to buy

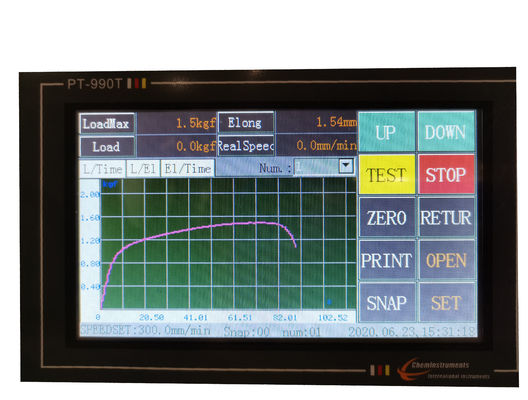

The control mode Double display double control




Special Characteristics:

  1. Elegant design --- the dynamic type of base is supplemented by a spray treatment of aluminium extrusions column
  2. Sophisticated transmission --- using high-precision, the gapless ball screw in a timely manner Timing Belt drive system accuracy guarantee;
  3. Advanced control function --- the whole computer data acquisition and motion control; powerful software features full open test ---
  4. Windows XP operating system software, users can use existing software to complete almost all of the mechanical test items can also edit their own test methods according to their actual needs. The test results can be shared with the Office, and the vast majority of office automation software
  5. High test accuracy --- better than a force measurement accuracy of 1/200, 000 force values ​​resolution, distortion measurement resolution up to 0.0001mm;u new interface design --- reserved for metal extensometers, displacement encoder and large deformation two extended interface, easy to access
  6. humane operation --- on the basis of fully computer-controlled operation can also select an external manual control box to operate the instrument.



Equipment Picture of PT-1176S  :



 200kg Double Control Display Electronic Universal Testing Machine For Various Materials 0
