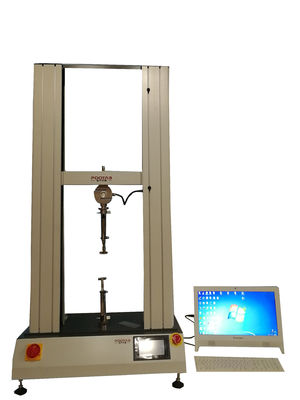

Foam Compression Strength Testing Machine Pressure Tensile Tester 200 KGF
Foam Testing Machine Introduce:
This machine is designed for testing porous elastic material compression depression hardness test, such as foam.
Foam Tester Theorem: Test the strength of the object under specified conditions needed to form the required degree of depression.Put the test sample between upper and lower compression plate, then make upper plate go down with regular speed, when upper plate to compress test sample the load cell will get the strength and transfer to signal to send to computer and show compress force value on screen
Standards: GB/T10807, GB/T 12825, GB/T18942.1, ISO 2439: 1997
Detailed Parameters:
| Tester Name | Foam Compression Strength Testing Machine Pressure Tensile Tester 200 KGF |
| Model No. | PT-3166 |
| Capacity | 200kg |
| Software | Professional testing software under Windows2000/XP |
| Load Accuracy | Superior to ±0.5% |
| Load Resolution | 1/500,000 |
| Effective Load Range | 0.5~100%F.S |
| Accuracy of Deformed Value Display | Superior to ±0.5% |
| Test Speed Range | 0.5～500mm/min, can be setting |
| Test Max. Stroke | Max. 1000mm, not include gripper |
| Effective Test Space | Front, rear, left, right 400mm |
| Upper Plate | Dia. 200mm, R Ø 1mm |
| Lower Plate | 420mm X 420mm, Ventilation holes diameter 6mm, Spacing 20mm. |
| Specimen | Length 380mm, Thickness 50mm |
| Unit Switch | Including the use of a variety of international unit of measurement. |
| Stop Mode | Upper and lower limited security settings, emergency stop button, program force & extend setting, specimen damaged sensor. |
| Special Function | Can do sustained tension, continuing pressure and fatigue test. |
| Dimensions | 76×44×150cm (W×D×H) |
| Weight | About 160 kg |
| Motor | AC Servo Motor |
| Power | 1PH, AC220V, 50Hz, 10A or assign |
Screen:
