150 ℃ Small Desktop Temperature Humidity Tester 36L Constant Test Chamber
Temperature Humidity Tester 36L Description :
150 ℃ Small Desktop Temperature Humidity Tester 36L Test Chamber can simulate the hot and humid, high temperature low humidity, low temperature and humidity of different test environments. Simulation tests of various materials for specific environments in a variety of anti-aging properties, other properties can also be tested as a sample pre-treatment.
Temperature Humidity 36L Test Chamber Specifications:
| Item Name | 150 ℃ Small Desktop Temperature Humidity Tester 36LConstant Test Chamer | ||
| Model | PT-2090 | ||
| Inner Cabinet (mm) | 300×300×400(W×D×H) | ||
| Dimensions (mm) | 815×722×816(W×D×H) | ||
| Volume (Liter) | 36 | ||
| Performance | Temp Range | -10,-20,-40～1000C (Max arrive 1500C) | |
| Temp Control Accuracy | ±0.3℃ | ||
| Temp Dist. Accuracy | ±0.5℃ | ||
| Humidity Range | 30％～98％(see Humidity Range Table) | ||
| Humidity Control Accuracy | ± 2.5％RH | ||
| Humidity Dist. Accuracy | ± 3.0％RH | ||
| Recycle system | Fan forced circulation mode | ||
| Heating system | SUS # 304, stainless steel heater | ||
| Humidification system | Surface evaporation, transparent structure | ||
| Cooling System | Fan cooling mode, the whole closed-type high-efficiency compressor | ||
| Dehumidification system | Latent heat of freezing dehumidification mode | ||
| Water Supply | Water pumps to enhance water supply | ||
| Water Storage Tank | Built-in drawer storage tank, water tank for easy water | ||
| Return Water Recycling System | Return water recycling system automatically, eliminating the long-troubled water, and ensure clean water | ||
| Material | Inner | SUS#304 stainless steel | |
| Outer | SUS#304 stainless steel, matte stripes processing or coating painct processing. (assign by customer) | ||
| Insulation | New PU foam insulation materials | ||
| Safety device | Leakage, overload, compressor overload, over temperature, over humidity, water scarcity, humidification overheating protection | ||
| Standard Accessories | Shelf X 2, Vacuum observation window, Interior lights, Anti-sweat fogging device | ||
| Power | 380V, 8KW | ||
Standard : GB/T2423//5170/10586,JIS C60068,ASTM D4714,CNS3625/12565/12566

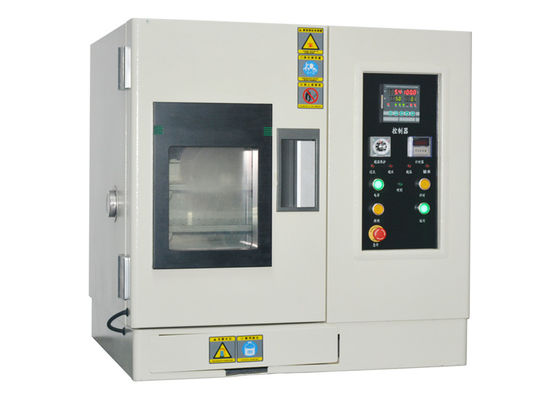

36L Desktop Temperature Humidity Tester Picture:
