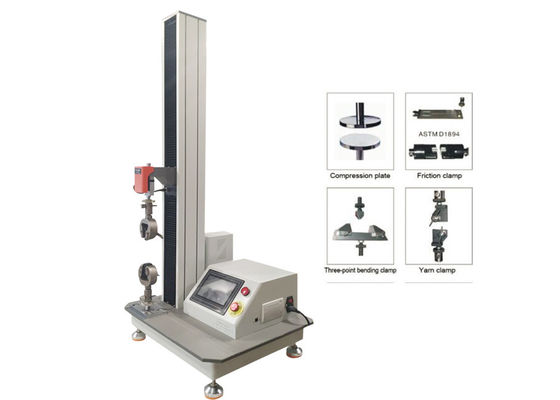

Computerized Electronic Material Testing Machine High Test Accuracy For Film

Computerized Electronic Material Testing Machine High Test Accuracy For Film
Computerized Electronic Material Testing Machine High Test Accuracy For Film
video play

Large Image :  Computerized Electronic Material Testing Machine High Test Accuracy For Film

Product Details:
Place of Origin: Donggguan,Guangdong,China
Brand Name: PERFECT
Certification: ISO9001:2015
Model Number: PT-1176S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Wooden Case
Delivery Time: 7-10 working days after order confirmed
Payment Terms: T/T, , Western Union, L/C
Supply Ability: 100 Sets Per Month
Detailed Product Description
Max Stroke: 650mm ,extended 1000mm Unit Switchover:: G, KG, N, LB
Power Supply: 1PH,AC 220V,50Hz,10A Software Control: Windows XP Operating System
Optional Configuration: Printer ,Fixtures Test Speed: 10~500 Mm/min
Motor: AC Servo Motor Capacity: 2、5、10、20、50、100、200、500kg
Port: Shenzhen
High Light:

tensile strength machine

,

spring force tester

Computerized Electronic Tensile Test Equipment Materials Testing Machine For Film

PT-1176S Double Control Tensile Testing Machine.pd...





Machine Use :



Computerized Electronic Tensile Test Equipment is suitable for various materials, including finished goods and semi-finished goods.specially film, plastic, off-form paper/film, adhesive tape, paper, compound belt, packing tape, aluminum foil, protective film, aluminum plastic plate. Take differences grippers can test tensile strength, tensile elongation, compression, bending, puncture, splitting, tearing, shearing and adhesive force etc.Customer can choose to connect to the computer or not. It is doule use.





Machine Specifications :



Machine Name Computerized Electronic Tensile Test Equipment Materials Testing Machine For Film
Product model PT-1176S ( Double Display )
Capacity 2,5,10,20,50,100,200,500kg,max. 5KN
Software of testing and controlling Special testing software on Windows2000/xp
Correctness of testing force Better than±0.5%
Resolution of testing force 1/500,000
Effectual range of testing force 0.5~100%F.S
Correctness of distortion reading Better than±0.5%
Speed range of testing 0.5~500mm/min
Maximal distance of testing 650mm,( not including clamp)
Effective testing space In front and back∝,Left and right to120mm
switching Units Various of measuring units including international units, user can customise the necessary units
stopping mode Set the limits of security,urgent stop key,programmable force and elongation setting,specimen damage sensing
Special functions can do the tests of extension&compression endurance
Standard collocation Standard gripper*1,software and USB cable*1,power line *1,CD operating instruction*1,work certificate*1,warranty card*1
Optional collocation Computer*1,color printer*1,different grippers
Dimension of main body About 57×47×100cm(W×D×H)
Weight of main body About 70kg
Motivity Ac servo motor
Power supply 1PH,AC220V,50Hz,10A
Remarks Do not include the computer,can be chose to buy
The control mode Double display double control





Software :



1. Work with Windows platform, parameter setting, the operation is simple;

2. Using a single screen operation, do not need to switch from the picture

3. Software interface has three kinds of simplified Chinese, traditional Chinese and English language, easy to switch;

4. To the guild regulations test table mode;

5. Test data can be directly call in the main picture;

6. Multiple measurement units, metric system can switch;

7. Data comparison of  can be more curves at the same time;

8. With the function of automatic return;

9. Automatic correction function;

10. With the function of custom test method;

11. Test data computation analysis function;

12. Automatic magnification function, in order to achieve the most appropriate size of the graphics.

13. Do tensile, compressive, flexural, stripping, pull, pressure, fatigue test;





Characteristics:

  • Elegant design --- the dynamic type of base is supplemented by a spray treatment of aluminium extrusions column
  • Sophisticated transmission --- using high-precision, the gapless ball screw in a timely manner Timing Belt drive system accuracy guarantee;
  • Advanced control function --- the whole computer data acquisition and motion control; powerful software features full open test ---
  • Windows XP operating system software, users can use existing software to complete almost all of the mechanical test items can also edit their own test methods according to their actual needs. The test results can be shared with the Office, and the vast majority of office automation software
  • High test accuracy --- better than a force measurement accuracy of 1/200, 000 force values ​​resolution, distortion measurement resolution up to 0.0001mm;u new interface design --- reserved for metal extensometers, displacement encoder and large deformation two extended interface, easy to access
  • Humane operation --- on the basis of fully computer-controlled operation can also select an external manual control box to operate the instrument.
