ASTM D4714 Climate Control Chamber , High Low Temperature And Humidity Test Chamber
Design Standard:GB/T2423//5170/10586,JIS C60068,ASTM D4714,CNS3625/12565/12566
Usage: To simulate different test environments, such as high temperature, high humidity, high temperature and low humidity, low temperature and low humidity.It can be used to simulate the aging properties of various materials in a variety of specific environments, as well as other physical test samples.
Chamber Specification :
| Model | PT-2090 |
| Inner Cabinet Size | 450mm×300mm×400mm(W×D×H) |
| Outer Cabinet Size | 965mm×722mm×816mm(W×D×H) |
| Volume | 54L |
| Temperature Range | -10,-20,-40～100℃(Max 150℃) |
| Humidity Range | 20％～98％ |
| Temp Control Accuracy | ±0.3℃ |
| Temp Dist. Accuracy | ±0.5℃ |
| Cycling System | Fan forced circulation mode |
| Heating system | SUS # 304, stainless steel heater |
| Humidification system | Surface evaporation, transparent structure |
| Cooling System | Fan cooling mode, the whole closed-type high-efficiency compressor |
| Dehumidification system | Latent heat of freezing dehumidification mode |
| Water Supply | Water pumps to enhance water supply |
| Water Storage Tank | Built-in drawer storage tank, water tank for easy water |
| Return Water Recycling System | Return water recycling system automatically, eliminating the long-troubled water, and ensure clean water |
| Inner Cabinet Material | SUS#304 Heat-resistant and cold-resistant stainless steel materials |
| Outer Cabinet Material | SUS#304SUS#304 stainless steel, matte stripes processing or coating paint processing. (assign by customer) |
| Insulation | New PU foam insulation materials |
| Safe Device | Leakage, overload, compressor overload, over temperature, over humidity, water scarcity, humidification overheating protection |
| Standard Accessories | Shelf X 2, Vacuum observation window, Interior lights, Anti-sweat fogging device |
| Power | 220V,5KW |

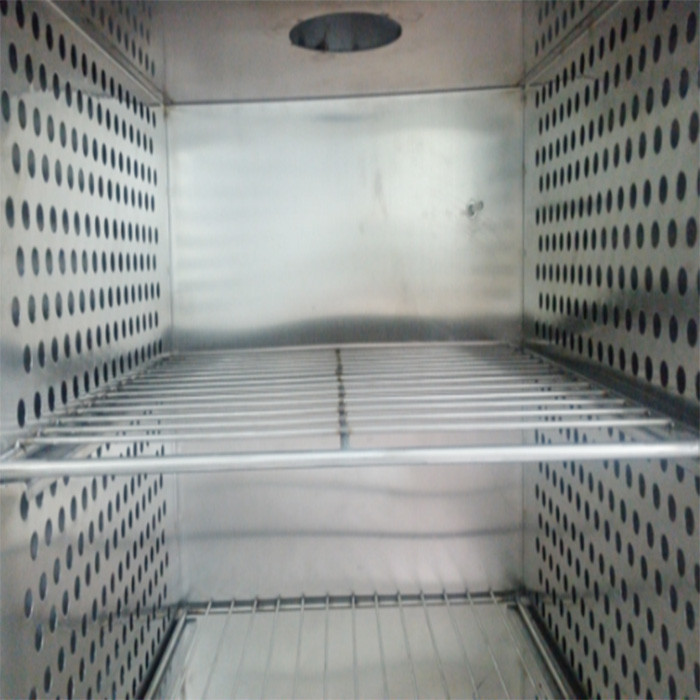

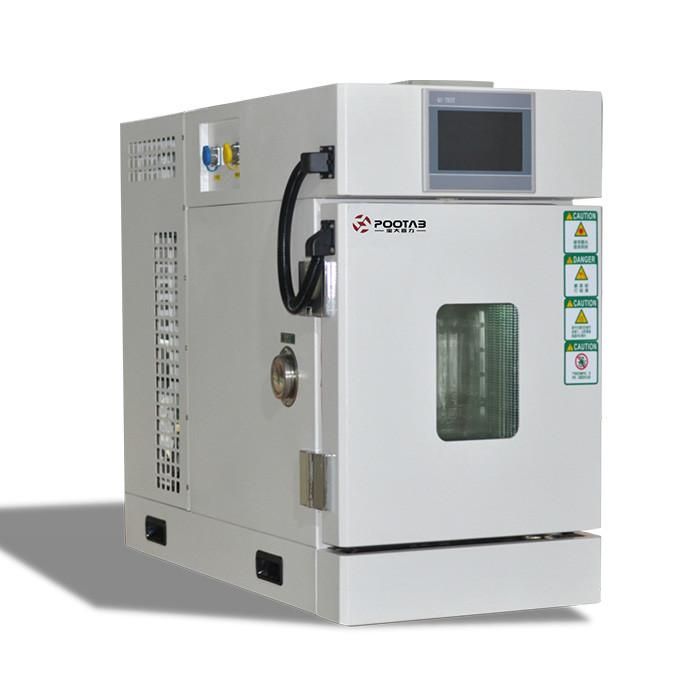

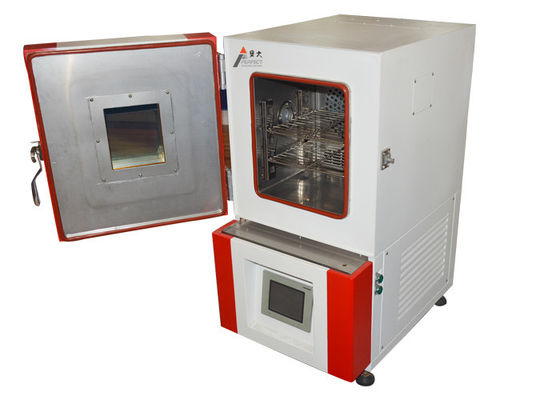

chamber Picture :
