CNS3625 Temperature Humidity Test Chamber , Chemical And Hardware Environmental Simulation Chamber

1 set
MOQ
Negotiable
Price
CNS3625 Temperature Humidity Test Chamber , Chemical And Hardware Environmental Simulation Chamber
Features Gallery Product Description Request A Quote
Features
Specifications
Heating System: SUS # 304, Stainless Steel Heater
Humidity Range: 20%-98%
Volume: 54L
Temperature Range: -10、-20、-40~100℃(Max 150℃)
Inner Cabinet Size: 450mm×300mm×400mm(W×D×H)
Cycling System: Fan Forced Circulation Mode
High Light:

high temperature test chamber

,

temperature humidity chamber

Basic Infomation
Place of Origin: Dongguan, Guangdong, China
Brand Name: PERFECT & POOTAB
Certification: ISO, SGS,CE
Model Number: PT-2090
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 15-20 Days after confirm order
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 Sets Per Month
Product Description

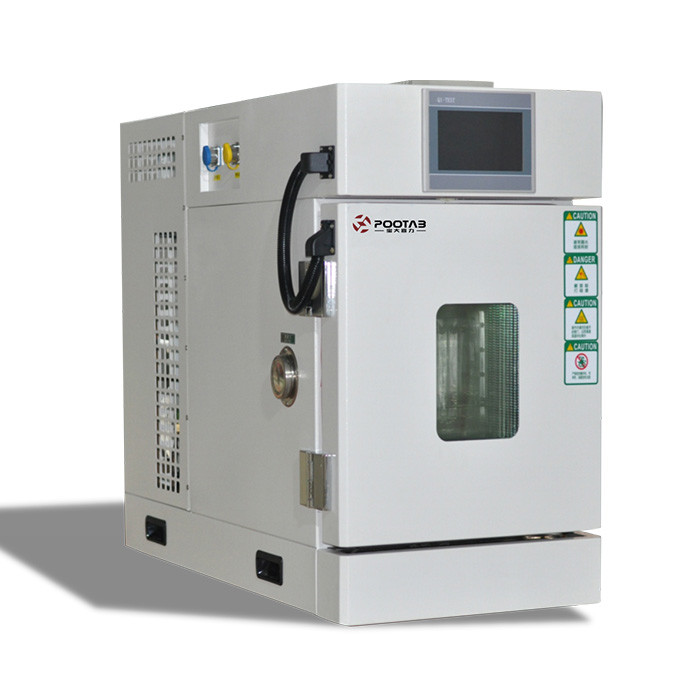

CNS3625 Temperature Humidity Test Chamber , Chemical And Hardware Environmental Simulation Chamber



Meet Standard: GB/T2423//5170/10586,JIS C60068,ASTM D4714,CNS3625/12565/12566



Machine Usage: Simulating different test environments, such as high temperature, high humidity, high temperature and low humidity, low temperature and low humidity.It can be used to simulate the aging properties of various materials in a variety of specific environments, as well as other physical test samples.



CNS3625 Temperature Humidity Test Chamber , Chemical And Hardware Environmental Simulation Chamber 0





Temperature Humidity Chamber Specification :

Model PT-2090
Inner  Size 450mm×300mm×400mm(W×D×H)
Outer  Size 965mm×722mm×816mm(W×D×H)
Volume 54L
Temperature Range -10,-20,-40~100℃(Max 150℃)
Humidity  20%~98%
Temp Control Accuracy ±0.3℃
Temp Dist. Accuracy ±0.5℃
Cycling System Fan forced circulation mode
Heating system SUS # 304, stainless steel heater
Humidification system Surface evaporation, transparent structure
Cooling System Fan cooling mode, the whole closed-type high-efficiency compressor
Dehumidification system Latent heat of freezing dehumidification mode
Water Supply Water pumps to enhance water supply
Water Storage Tank Built-in drawer storage tank, water tank for easy water
Return Water Recycling System Return water recycling system automatically, eliminating the long-troubled water, and ensure clean water
Inner Material SUS#304 Heat-resistant and cold-resistant stainless steel materials
Outer Material SUS#304SUS#304 stainless steel, matte stripes processing or coating paint processing. (assign by customer)
Insulation New PU foam insulation materials
Safe Device Leakage, overload, compressor overload, over temperature, over humidity, water scarcity, humidification overheating protection
Standard Accessories Shelf X 2, Vacuum observation window, Interior lights, Anti-sweat fogging device
Power 220V,5KW
