Luggage Drum Tumble Tester , Qualified Leather Case Drum Drop Test Machine
Luggage Drum Tester Introduction:
Through the test of the hexagonal roller testing machine, the adaptability of the transport package with square body or similar shape to the repeated impact and collision in the circulation process and the protective ability of the package to the inner contents can be tested.
Luggage Roller Drum Testing Machine applies to rubbing resitance test of little substance.Such as the wheels of luggage,skiting shoes,cart.It can test the rubbing resistance of the material and whether the whole structure damages or deforms.And the result can be as reference of improvement.Wtat is more,
For the suitcase and luggage that occur during transport, such as rolling, shock of collision scenarios for simulation.Suitcase in the drum roll and shock, the required number of revolutions completed, check the luggage of the damaged condition, as the basis for product improvement.
Suit for NIKE, adidas, samsonite standard.
Leather Case Drum Drop Test Machine Parameters :
| Model | PT-9028 |
| Item Name | Luggage Drum Tumble Tester , Qualified Leather Case Drum Drop Test Machine Hexagon |
| Standard | QB/T 4116-2010 |
| Patent No. | ZL 200820048720.5 |
| Rolling Speed of Drum | 2 R.P.M |
| Times Setting | 0~999999 times, Auto stop |
| Impact Plate | 96 degree × 2 sets |
| Impact Body | Conical metal |
| Safety Protection | Metal shield |
| Dimensions | 230×160×260cm (W×D×H) |
| Weight | 850kg |
| Power | 1PH, AC220V, 50/60Hz, 15A |

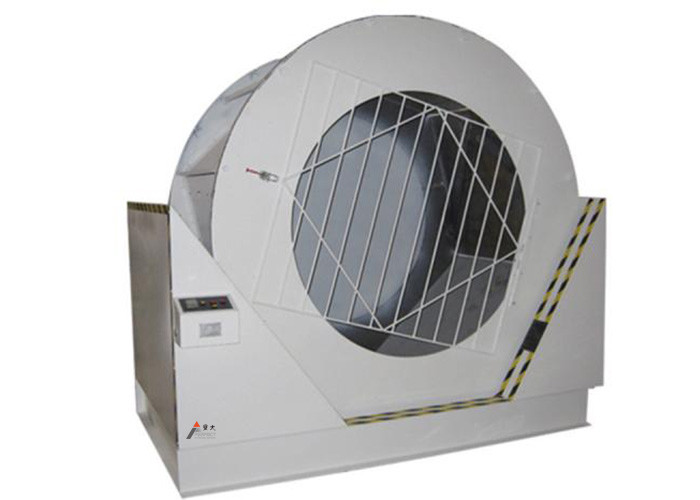

Luggage Roller Drum Testing Machine :
Drum Tester Touch Cotroll Screen :
