36° Suitcase Wheel Tester , Skates Wheel Tear Testing Machine
Standard :QB/T 2917-2007
Suitcase Wheel Tester Description:
This machine is used for the wear-resisting test of small wheels, such as suitcase, skates, buggies and wheelbarrow wheels.The abrasion resistance and the overall structure of the wheel material can be measured, and the test results can be used as a reference for improvement.
Wheel Tear Testing Machine Specifications:
1. Test wheel: 36 degrees
2. Test speed: (0 ~ 10) km/hr, adjustable
3. Time setting: 999 seconds, 2 groups;999 points 2 groups
4. Frequency setting: 0 ~ 999999 automatic stop
5. Wheel center load: 10kg, 20kg, 30kg, 50kg
6. Power: AC220V,50HZ
7. Size: 700 * 500 * 680 mm
8. Weight: 70 kg

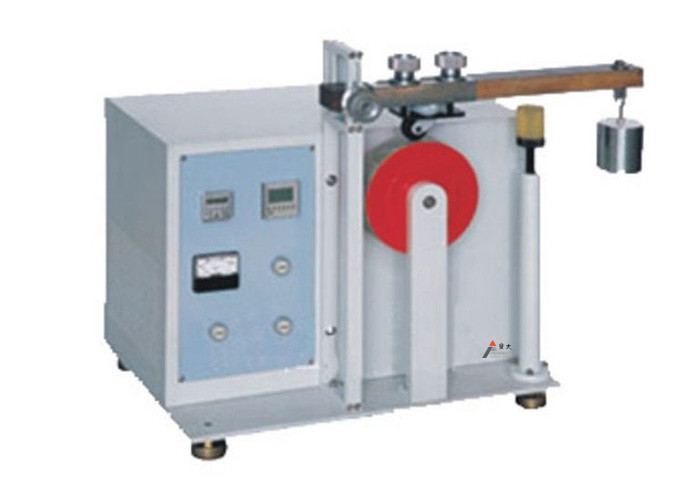

Refering wheel Tester Picture :
