Pressure Sensitive Tape Unwind Force Tester , Unwind Adhesion Peel Tester High Speed
PT-6088B High Speed Unwind Tester.pdf
International Standards: PSTC-13 , ASTM D1000
Tape Unwind Force Tester Usage : At the condition high speed to peeled off entire roll adhesive tape, Adhesive Unwind Peeling Strength Tester is to observed the strength change and analysis size of peel force during entire roll adhesive tape stripping process, as adhesive tape at high speed unwound provide references when in used.

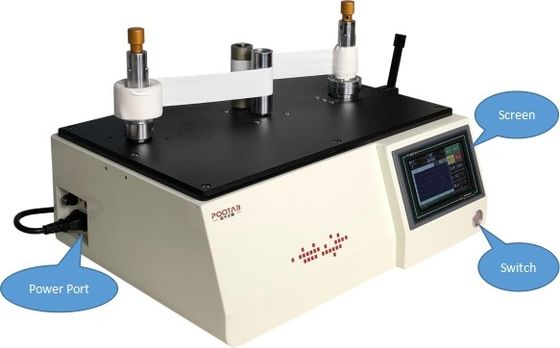

Refer Picture of Uncoil Tester :
Specification of unwind adhesion tester :
|
Model |
PT-6088B |
|
Standard Specimen Size |
Within reel diameter 75mm and width 75mm (reel can be customized), the maximum outer diameter of 300mm. |
|
Load Cell |
10kgf,20kgf,50kgf Option One |
|
Load Cell Accuracy |
±0.1%(Whole) |
|
Force Resolution |
1/300,000 |
|
Test Software |
A99 special software for unwind test, automatic recording of the time unwound 25%, 50% and 75% force value. |
|
Unwinding Speed Range |
0 ~ 122m/min±3 m/min (can be set) |
|
Force Unit Switch |
All units can be arbitrarily selected; you can also define you own units. After test is completed also can be any conversion. |
|
Machine Dimension |
About 50*40*30cm(W*D*H) |
|
Machine Weight |
About 27kg(not include packing) |
|
Motor |
Servo Motor |
|
Operation Mode
|
7 inches PLC, touch screen control, can connect computer operation |
|
Electric Power |
1/2PH,AC220V(or 110V),5A |
