|Standard:||QB/T 2922-2007||Patent Number:||ZL 2006 3 0189726.0 Suitacase Shock Impact Tester|
|Dimensions:||1400 *1200 * 2500 Mm (W X D X H)||Tester Weight:||380kg|
|Impact Stroke:||4 Inches (0 ~ 6 Inches Can Be Adjustable)||Warranty:||1 Year From Shipped Date|
fatigue testing equipment,
drop test equipmen

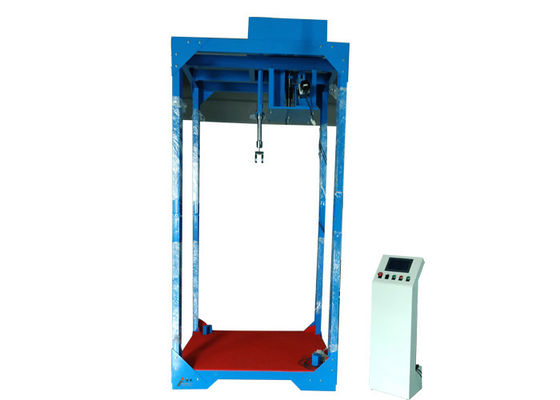

Suitacase Shock Impact Tester , 4 Inches Stroke Bags Impact Testing Machine
PT-9020 luggage shock impact tester .pdf
Suitacase Shock Impact Tester Application :
Suitacase Shock Impact Tester , 4-6 Inches Stroke Bags Impact Testing Machine is to test the strength of handle, buckle, sewing thread and overall structure of luggage, baggage or suitcase etc.
Put the loading weight into luggage, baggage or suitcase, then make 30 times/min speed impact and 4 inches stroke impact test to test project at least 2500 times, and the test results can be a reference to improve products.
Specifications of Suitacase Shock Impact Tester :
|Model Number||PT-9020 Bags Impact Testing Machine|
|Impact Stroke||4 Inches (0 ~ 6 inches adjustable)|
|Vibration Mode||Spring 1.79kg/mm|
|Test Speed||0 ~ 50 c.p.m adjustable|
|Times Setting||0~999999, auto stop|
|Accessibility||Test object fall auto stop|
|Dimensions||140 X 120 X 250 cm (W X D X H)|
|Machine Weight||About 380 kg|
|Power Sipply||1Ø, AC 220V, 50~60HZ, 8A|
Luggage Vibration Impact Tester Maintenance Methods :
Precautions of Bags Impact Testing Machine:
1, in vibration, rocking occasions.
2. Direct sunlight.
3. High temperature, dusty and humid place.
4. The ac power supply to the machine shall be well connected to the ground to ensure safe operation.
5, do not use strong solvent (such as: benzene, nitro oil) cleaning machine enough.
6. Water and sundries shall not be injected into the machine to prevent electrical components from damage and electric shock.
7. The disassembly and debugging of the instrument display can only be undertaken by the unit and the company approved by the national metrology department, and other people shall not dismantle or repair it without authorization.
