1000N Tensile Testing Machine With Oven , High Temperature Tensile Testing Equipment
Machine Application: PT-1175HXX Tensile Testing Machine adopts the latest design concepts and manufacturing technologies, the integration of precision oven and tensile testing machine as a new model, is designed to simulate the physical properties of various materials testing improved models in different environmental conditions, if install of high-low temperature test chamber on this machine, can be test the materials physical characteristics of tensile, compression, shearing, bending, flex at different temperature. When using the normal temperature test, oven can be removed, to increase the use space.
Besides the high temperature type tensile machine, we also make high & low temperature type tensile strength machine, temperature humidity type tensile testing machine, and for big force testing, structure use the double column type.
Tensile Machine Specifications:
| Model | PT-1175HXX High Temperature Tensile Machine |
| Force Capacity | 20kgf, 50kgf, 100kgf, 200kgf, 500kgf, any one option. |
| Temperature | Room temperature to 200℃ |
| Control Method | P.I.D. automatic temperature calculation. |
| Measurement and Control Software | The full open test software of Windows OS. |
| Force Measurement Accuracy | ± 0.5%. |
| Effective Force Measurement Range | 0.5 ~ 100% F.S. |
| Deformation displayed value Accuracy | ± 0.5%. |
| Test Speed Range | 0.5 ~ 500mm/min, Can be set. |
| Test stroke | Maximum 450mm, including griper’s length. |
| Effective test space | 220mm left to right, 350mm front and rear. |
| Unit switch | Contains a variety of internationally accepted unit of measurement, users can define their own desired unit. |
| Stop mode | Upper and lower security settings, emergency stop button, the program setting of strength and elongation, specimen damage sensing. |
| Special Features | Can do continuous tension, sustained pressure, fatigue, bending, flexural and shear tests; users can also according to their actual test needs to define its own test methods. |
| Standard accessories | machine seat X1, RS-232 data lines X1, power cord X1. |
| Dimensions (W×D×H) | Tensile machine: 75×50×125cm, chamber size: 40*40*60cm or customized |
| Weight | About 120 kg. |
| Motor | AC servo motor. |
| Power | 1PH, AC 220V, 50/60Hz |

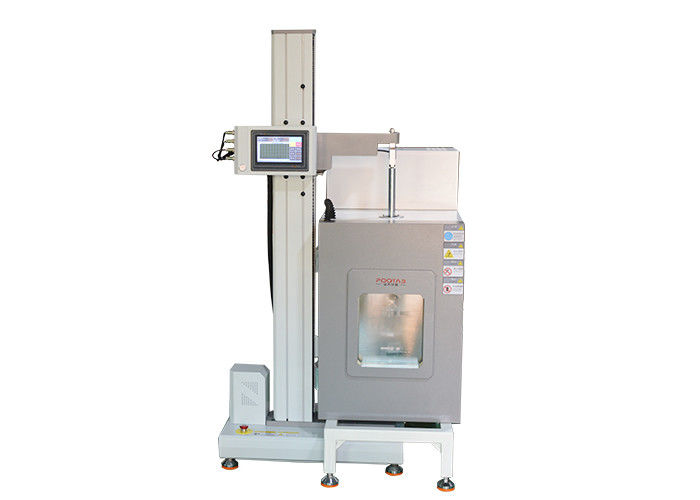

Tensile Testing Machine With Oven :
