AC220V Tensile Testing Machine

AC220V Tensile Testing Machine
AC220V Tensile Testing Machine AC220V Tensile Testing Machine

Large Image :  AC220V Tensile Testing Machine

Product Details:
Place of Origin: Dongguan,Guangdong,China
Certification: ISO9001
Model Number: PT-1136
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 15 days after confirm order
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Detailed Product Description
Capacity: 500kgf、1000kgf, 2000kgf, 5000kgf ,Max 50KN Dimensions: About 76×50×175cm(W×D×H)
Weight: About 350 Kg Max Test Stroke: 1000mm,include Gripper
Power: 1PH,AC220V,50/60Hz,10A Or Custom Test Force Resolution: 1/100,000
Port: Shenzhen
High Light:

tensile strength machine


spring force tester


AC220V Tensile Testing Machine

50KN Universal Testing Machine For Steel Metal Rubber Plastic


Machine Introduction :

Universal Testing Machine , Computer Control Spring Tester For Wire Rope is designed for Trial tests and analysis, research institutes, universities, industrial and mining enterprises, technical supervision, inspection and arbitration department of the ideal test equipment .he series of electronic universal testing machine is mainly used for metal, non-metallic, composite materials and the tensile, compression, bending, shearing, tearing and other forms of mechanical properties, while according to GB, ISO, JIS, ASTM, DIN and provide users with a variety of standards for testing and data processing.


It's suitable for tensile, compression, bending test of rubber, plastic, electrical wire and cable, composite, plastic profiled bar, waterproof roll, etc. They may add test methods or rules according to customers requirement. They are essential testing instrument for quality testing section, university and college, research institution and industrial and mining enterprise.


Specifications of 5T UTM :

Machine Name 50KN Universal Testing Machine
Model PT-1136
Capacity 500kgf, 1000kgf, 2000kgf,5000kgf any one option
Software Windows XP platform fully open test software
Force measurement accurate Better than ±0.5%
Force measurement resolution 1/100,000
Effective force measurement range 0.5~100%F.S
Deformation measurement resolution Better than ±0.1%
Test speed range 0.5~300mm/min,adjustable.
Test maximum stroke Maximum 1000mm,include griper
Test space Front and back ∝,left and right 400mm
Stop mode The upper and lower limit of the security settings, emergency stop button, the program strength and elongation set, test failure sensing
Special Features Able to do hold pull and hold pressure test
Optional configuration Gripper*1,software and USB *1,power line*1,CD operation illustration*1,certificate*1,warranty card*1
Dimensions Business computer*1, color printer*1,PT-211 two point’s extensimeter,and kinds of grippers.
Dimensions About 76×50×175cm(W×D×H)
Weight About 350kg
Motor AC servo motor
Power 1PH,AC220V,50/60Hz,10A or order


Universal Testing Machine Characteristic :

(1). The structure adopts duralumin stuff after burned lacquer handling, the inner setting were non-gap double balls bearing screws and double oriented standing poles which were high precision; it has a good load efficiency and steady structure. Panasonic digital AC servo system can ensure the driving system to be high efficiency, steady driving, low noise, speed precision which is from﹣0.2% to﹢0.2%.

(2). Flexed dustproof curtain made of imported PVC material, wear well and beautiful & top grade.

(3). Adopt imported high precision transducer, the effective testing range is within 0.5%~100%F.S, the precision is better than 0.085%;

(4). Double high definition coder can test the sample to be anamorphic or not.

(5). Aluminium alloy stuff and spray molded handling make the appearance more exquisite.

(6). Special software can finish all testing reference setting, controlling of working status and collecting data & analysis, results shown and printing output;

(7). Business computer controlling, convenient collocations, professional testing program, 32 digits fast speed data procured, all can output various charts and curves.

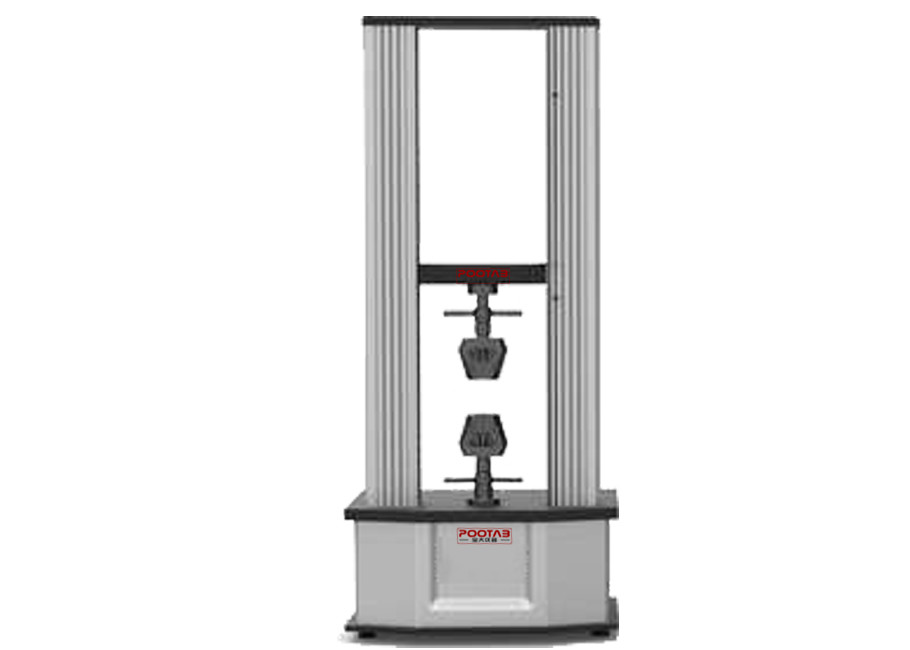

5T Universal Testing Machine Photo:

AC220V Tensile Testing Machine 0


Part Test :

AC220V Tensile Testing Machine 1
