5000kg Capacity Tensile Tester For Steel Rebar , Wire Cable Tensile Strength Testing Machine

5000kg Capacity Tensile Tester For Steel Rebar ,  Wire Cable Tensile Strength Testing Machine
5000kg Capacity Tensile Tester For Steel Rebar ,  Wire Cable Tensile Strength Testing Machine 5000kg Capacity Tensile Tester For Steel Rebar ,  Wire Cable Tensile Strength Testing Machine

Large Image :  5000kg Capacity Tensile Tester For Steel Rebar , Wire Cable Tensile Strength Testing Machine

Product Details:
Place of Origin: Dongguan,Guangdong,China
Brand Name: POOTAB, PERFECT
Certification: ISO9001
Model Number: PT-1136
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 15 days after confirm order
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets per month
Detailed Product Description
Capacity: 500kg、1000kg, 2000kg, 5000kg ,Max 50KN Dimensions: About 76×50×175cm(W×D×H)
Weight: About 350 Kg Max Test Stroke: 1000mm,include Gripper
Power: 1PH,AC220V,50/60Hz,10A Or Custom Test Force Resolution: 1/100,000
Port: Shenzhen
High Light:

tensile strength machine

,

spring force tester

5000kg Capacity Tensile Tester For Steel Rebar , Wire Cable Tensile Strength Testing Machine



Steel Rebar Tensile Machine Introduction :

5000kg Capacity Tensile Tester For Steel Rebar , Wire Cable Tensile Strength Testing Machine is designed for Trial tests and analysis, research institutes, universities, industrial and mining enterprises, technical supervision, inspection and arbitration department of the ideal test equipment .he series of electronic universal testing machine is mainly used for metal, non-metallic, composite materials and the tensile, compression, bending, shearing, tearing and other forms of mechanical properties, while according to GB, ISO, JIS, ASTM, DIN and provide users with a variety of standards for testing and data processing.

Computer Control Spring Tester For Wire Rope widely used in wire and cable, textiles, waterproof materials, non-woven fabric, seat belts, rubber, plastic, thin film, wire rope, steel, metal wire, metal foil, sheet metal and metal wire and other metal materials and nonmetal materials.



Specifications of 5T UTM :

Machine Name 5000kg Universal Testing Machine , Tensile Tester For Steel Rebar ,
Model PT-1136
Capacity 500kgf, 1000kgf, 2000kgf,5000kgf option (max load force 5 tons)
Software Windows XP platform fully open test software
Force measurement accurate Better than ±0.5%
Force measurement resolution 1/100,000
Effective force measurement range 0.5~100%F.S
Deformation measurement resolution Better than ±0.1%
Test speed range 0.5~300mm/min,adjustable.
Test maximum stroke Maximum 1000mm,include griper
Test space Front and back ∝,left and right 400mm
Stop mode The upper and lower limit of the security settings, emergency stop button, the program strength and elongation set, test failure sensing
Special Features Able to do hold pull and hold pressure test
Optional configuration Gripper*1,software and USB *1,power line*1,CD operation illustration*1,certificate*1,warranty card*1
Dimensions Business computer*1, color printer*1,PT-211 two point’s extensimeter,and kinds of grippers.
Dimensions About 76×50×175cm(W×D×H)
Weight About 350kg
Motor Japanese AC servo motor
Electric Power 1PH, AC 220V, 50/60Hz,



50KN Tensile Machine Characteristic :

(1). The structure adopts duralumin stuff after burned lacquer handling, the inner setting were non-gap double balls bearing screws and double oriented standing poles which were high precision; it has a good load efficiency and steady structure. Panasonic digital AC servo system can ensure the driving system to be high efficiency, steady driving, low noise, speed precision which is from﹣0.2% to﹢0.2%.

(2). Flexed dustproof curtain made of imported PVC material, wear well and beautiful & top grade.

(3). Adopt imported high precision transducer, the effective testing range is within 0.5%~100%F.S, the precision is better than 0.085%;

(4). Double high definition coder can test the sample to be anamorphic or not.

(5). Aluminium alloy stuff and spray molded handling make the appearance more exquisite.

(6). Special software can finish all testing reference setting, controlling of working status and collecting data & analysis, results shown and printing output;

(7). Business computer controlling, convenient collocations, professional testing program, 32 digits fast speed data procured, all can output various charts and curves.

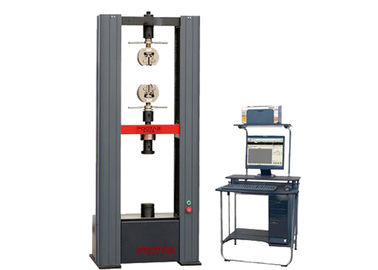

Tensile Testing Machine Photo :



5000kg Capacity Tensile Tester For Steel Rebar ,  Wire Cable Tensile Strength Testing Machine 0

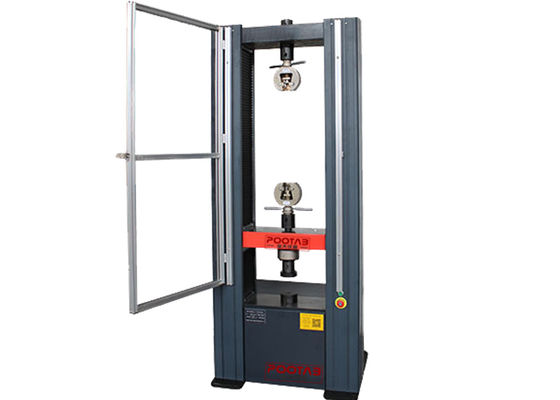

Steel Rebar Tensile Test :









                 5000kg Capacity Tensile Tester For Steel Rebar ,  Wire Cable Tensile Strength Testing Machine 1



FAQ

Q1: Are you a factory or trading company?
A: We are a factory specializing in manufacturing all kinds of Testiing Machines and Instruments.

Q2: Where is the loading port?
A: Shenzhen port.

Q3: What's the MOQ of the product?
A: Different items have different MOQ. Welcome to contact our sales for getting more details.

Q4: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.

Q5: How long is the production cycle after ordering?
A: General it is about 15-30 days. We will send the time according to the order’s quantity.

Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C,Western Union.
