Temperature Humidity Controlled tensile test apparatus - 60℃ ~ 150℃ PC Servo force testing machine

Temperature Humidity Controlled tensile test apparatus - 60℃ ~ 150℃ PC Servo force testing machine
Temperature Humidity Controlled tensile test apparatus - 60℃ ~ 150℃ PC Servo force testing machine

Large Image :  Temperature Humidity Controlled tensile test apparatus - 60℃ ~ 150℃ PC Servo force testing machine

Product Details:
Place of Origin: Guangdong,China
Brand Name: PERFECT
Certification: ISO9001
Model Number: PT-1167HWHS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 25-30 days afer confirming order
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets per month
Detailed Product Description
Capacity Options: 200kg ,500kg,1000kg,2000kg Temperature Range: -20℃、-40℃、-60℃~150℃
Special Design: With Visual Window, Lighting Test Stroke: Max 450mm, Not Including Gripper
Test Speed Range: 0.5 ~ 1000mm/min, Can Be Set. Effective Test Space: 220mm Left To Right, 350mm Front And Rear.
Motor: AC Servo Motor Port: Shenzhen
High Light:

Temperature Humidity Controlled Tensile Tester

,

200kg Universal Material Tensile Tester

,

PC Servo force testing machine

Temperature Humidity Controlled Universal Material Tensile Tester - 60℃ ~ 150℃ PC Servo





Machine Introduction :



Temperature Humidity Controlled Universal Material Tensile Tester is the company launched new material testing machine, the machine adopts the latest design concepts and manufacturing technology, integrated with tensile testing machine, constant temperature and humidity test chamber is designed for simulation of various materials under different environmental conditions improved by physical testing machine, such as the machine is equipped with constant temperature and humidity chamber, but in different temperature and humidity environment test material tension, pressure, physical properties such as shear. Use normal temperature test, constant temperature and humidity test chamber can be removed to increase use of space and convenience.This machine computer ability strong, easy to operate, can implement GB, ISO, ASTM, BS, DIN, JIS and other national or international standard test, for all the factories and enterprises, technical supervision department, the commodity inspection authorities, research institutes and colleges and departments such as the ideal testing and research equipment





Machine Specifications:



Model PT-1167HWHS
Product Name Temperature Humidity Controlled Universal Material Tensile Tester - 60℃ ~ 150℃ PC Servo
Capacity Options 200kg, 500kg, 1000kg, 2000kg option any one.
Temperature Range

-20℃,-40℃,-60℃~150℃,(with visual window, lighting).

Humidity Range

20%R.H~98%R.H

Force Measurement Accuracy Better than ± 0.5%.
Force Measurement Resolution 1/100,000.
Deformation Measurement Resolution 0.01mm.
Effective Force Measurement Range 0.5 ~ 100% F.S.
Deformation displayed value Accuracy Better than ± 0.5%.
Test Speed Range 0.5 ~ 1000mm/min, Can be set.
Test stroke Maxc 450mm, not include gripper length.
Effective test space 220mm left to right, 350mm front and rear.
Unit switch Contains a variety of internationally accepted unit of measurement, users can define their own desired unit.
Stop mode Upper and lower security settings, emergency stop button, the program setting of strength and elongation, specimen damage sensing.
Special Features Can do continuous tension, sustained pressure, fatigue, bending, flexural and shear tests; users can also according to their actual test needs to define its own test methods.
Standard accessories Standard gripper X 1, tensile machine seat X1, RS-232 data lines X1, power cord X1.
Dimensions (W×D×H) Tensile machine: 76×45×154cm, Oven: 105×45×60cm, base seat: 80×60×71cm, After assembly: 80×105×225cm.
Weight About 280kg.
Motor AC servo motor.
Power 1PH, AC220V, 50/60Hz, 15A

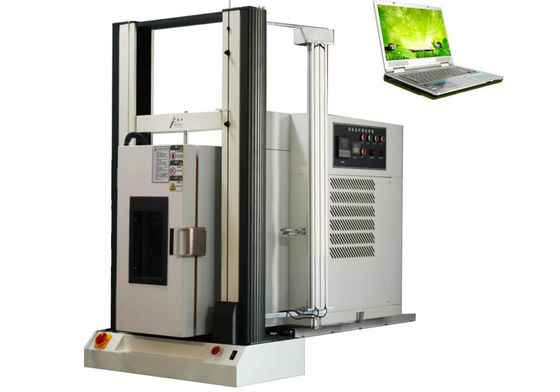

Machine Picture :



Temperature Humidity Controlled tensile test apparatus - 60℃ ~ 150℃ PC Servo force testing machine 0
