Accuracy ±0.5% AC Servo Motor 5000N Strength Testing Machine

China Perfect International Instruments Co., Ltd certification
China Perfect International Instruments Co., Ltd certification
Xin chào, the tensile tersting machine satisfied me, with detailed operating manual guide.I can test my products scientifically.

—— Phong from Vietnam

Assalamu alaykum , I think it is a reliable factory supplier. The testers sent to PK with resonable price.Let's meet in next order.

—— Muhammad Imran from Pakistan

Realmente muchas gracias. Perfect Instrument , Perfect Group. Its very patient and professional , helping clarify ASTM standard, and machine training

—— Garnica from Ecuador

I'm Online Chat Now

Accuracy ±0.5% AC Servo Motor 5000N Strength Testing Machine

Accuracy ±0.5% AC Servo Motor 5000N Strength Testing Machine
Accuracy ±0.5% AC Servo Motor 5000N Strength Testing Machine

Large Image :  Accuracy ±0.5% AC Servo Motor 5000N Strength Testing Machine

Product Details:

Place of Origin: Dongguan, Guangdong,China
Brand Name: PERFECT
Certification: SGS, CE, ISO ...as customers' request
Model Number: PT-1176S

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Packed in standard wood case
Delivery Time: 7 Working Days After Confirm Deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 Set Per Month
Detailed Product Description
Sensor Capacity: 2kgf, 5kgf, 10kgf, 20kgf, 50kgf, 100kgf, 200kgf, 500kgf, Any One Option Motor: AC Servo Motor
Test Speed: 0.5-1000mm/min Test Stroke: 650mm, 1000mm(customized)
Electric Power: 1 Phase , AC 220V, 50Hz Power Plug: European Standard Plug , British Standard Plug, American Standard Plug, South African Plug, Any One Option
Machine Weight: About 70 Kg Operation: Microcomputer On Tester
High Light:

5000N Strength Testing Machine

,

50Hz Strength Testing Machine

,

AC Servo Motor tensile strength machine

Accuracy ±0.5% Servo Motor Dual Display Dual Control Material Strength Testing Machine





Description: Water bottle Pressure Testing Machine is also called universal testing machine. with different grips, tensile tester could do lots of tests, such as tensile strength test, tear strength test, peel strength test , compression tester, 3 point bend test, 4 point bend test, elongation test, break force test, tensile-stress and many other testing items. Thus, tensile testing equipment is widely used in factories, lab research, uinversities and other fields for improving their products quality.



Features: Water bottle Pressure Testing Machine can be computer controlled and touch screen control. It can be just operated on the touch screen controller. Besides, after installing the software, this equipment connected to computer, customers could edit the test method, curve , and test result output by WORD, PDF, EXCEL..



Main Parameters:

Model PT-1176S
Capacity 20N,50N,100N,200N,500N,1000N,2000N,5000N ,any one option
Measurement and Control Software Professional Sofeware
Measurement Accuracy  ±0.5%
Force Resolution 1/500,000
Effective Range of Measurement 0.5~100%F.S
Deformation Display Accuracy Better ±0.5%
Test Speed 0.5~1000mm/min,free set
Max Test Stroke Max 650mm(Extended 1000mm,customized),not includes grip
Effective Test Space Front & Back 120mm, Right Left No Limit
Unit Switch A variety of measurement units including international units
Stop Method Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure
Special Function The holding, holding and fatigue testing can be done
Machine Size About 57×47×120cm(W×D×H)
Machine Weight About 70kg
Motor Ac servo motor
Control Method Double Display Double Control
Electric Power 1PH,AC220V,50Hz,10A or specified





Standard Configuration:

Standard fixture 1 payment, software and data line 1 sets, 1 sets of equipment power supply, operating instructions, product certification 1 copies, 1 copies of product warranty card



Purchase Configuration:



Business computer 1 set, color printer 1 set, kinds of test fixtures





Screen display

Accuracy ±0.5% AC Servo Motor 5000N Strength Testing Machine 0



Accuracy ±0.5% AC Servo Motor 5000N Strength Testing Machine 1





Accuracy ±0.5% AC Servo Motor 5000N Strength Testing Machine 2

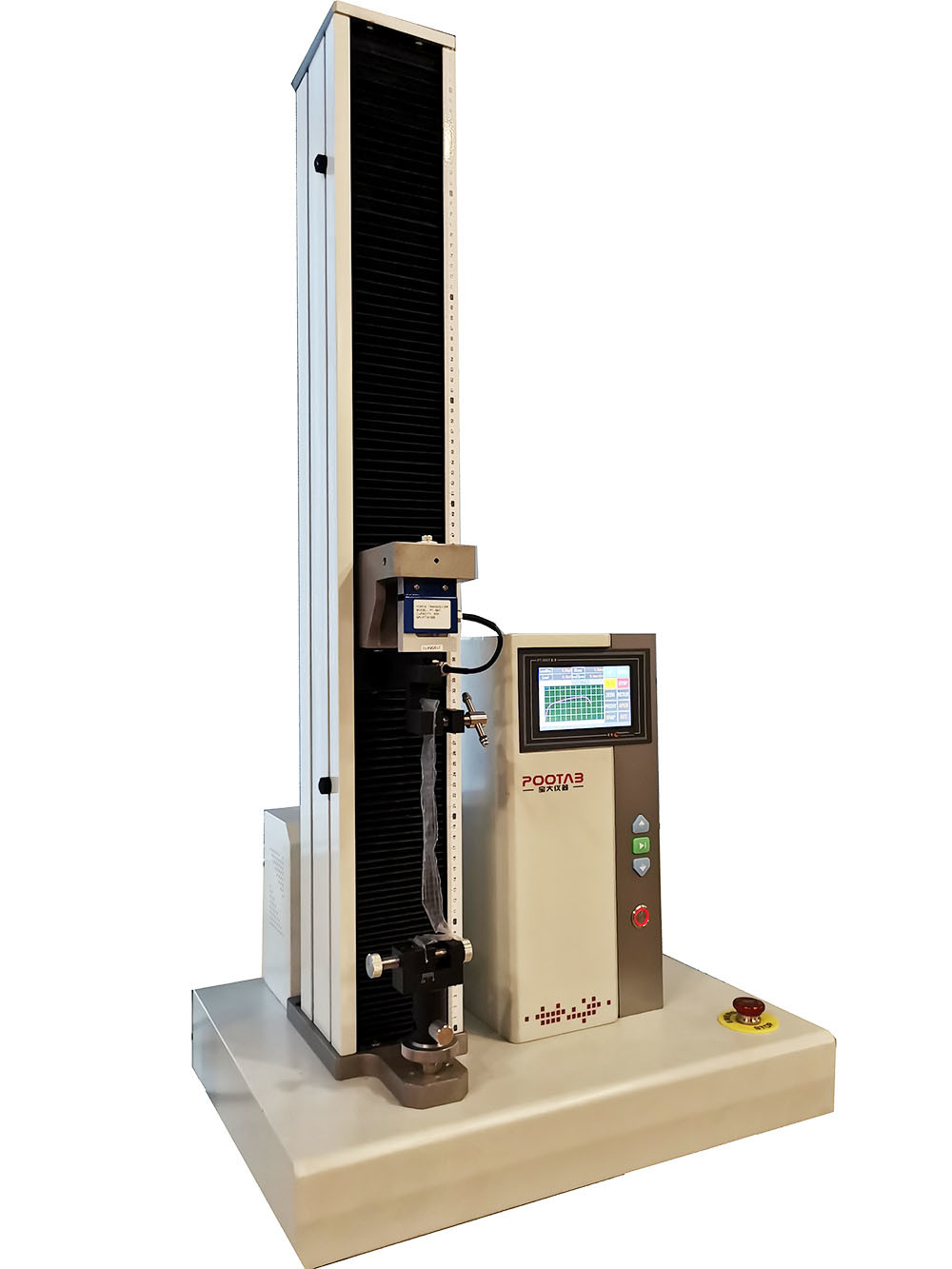

Picture of Water bottle Pressure Testing Machine :



Accuracy ±0.5% AC Servo Motor 5000N Strength Testing Machine 3
