Introduction:

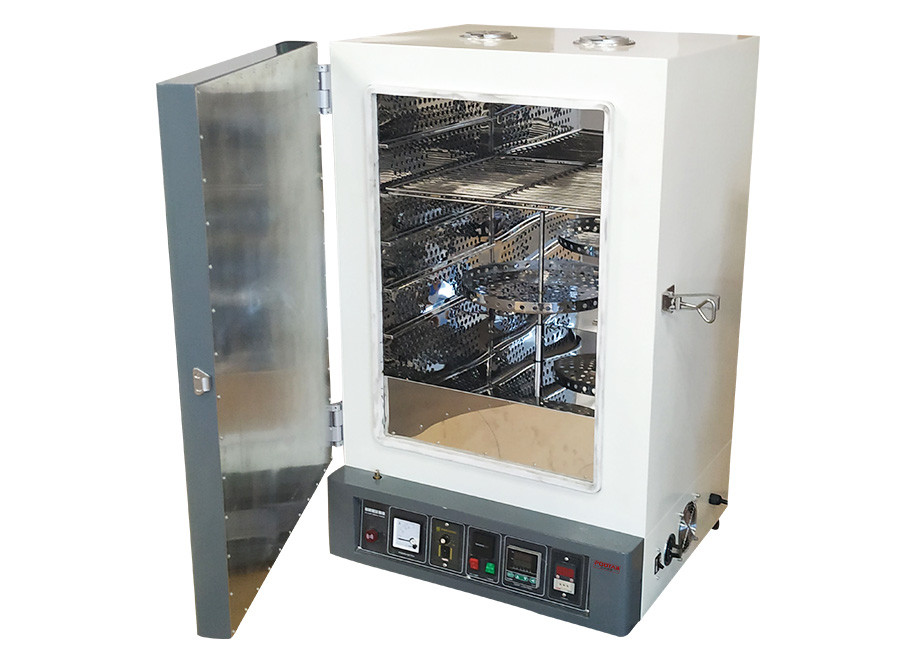

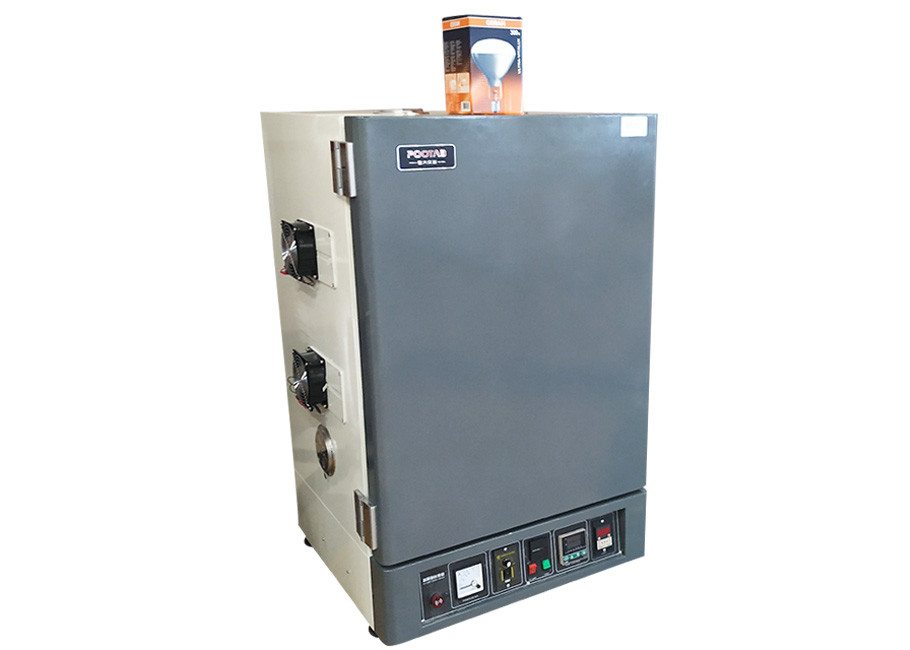

this yellow resistance aging oven This machine is specially designed to measure the yellowing resistance of white or light-colored state materials, substrates, leather, PU, fabrics and other shoe materials to light. It uses solar bulbs and heating temperature control devices to irradiate samples and test samples The ability to resist yellowing under sunlight.
Design Standards:
ASTM D5423-9(R2005),ASTMD 5374-93 (2005) ,UL-1581,JIS-P8127,ASTM D1148
Specifications :
| Model No. | PT-2030A | PT-2030B |
| Inner Chamber Size | 50×50×60 cm (W×D×H) | 51×32×26 cm (W×D×H) |
| Outer Chamber Size | 67×62×111 cm (W×D×H) | 68×34×37 cm (W×D×H) |
| Temperature Range | RT+5℃～200℃ | Room Temperature |
| Control Method | P.I.D. Automatic temperature calculation | |
| Temperature Resolution | 0.1℃ | |
| Control Accuracy | ±0.3 ℃(drying,aging) | |
| Distribution Accuracy | ±1%(1℃) at-room 100℃ | |
| Timer |
0～999.9 Hours/Minutes, Electronic display, Power failure memory type, Buzzer
|
|
| Compartment tray | Dia. 45 cm,3 R.P.M, Height-adjustable | 2 layer,Height not adjustable |
| UV Light Source | Osram Bulb type,UV/300W,with bulb life timer | Tube type,15W,2 pieces |
| Standard Accessories | Shelves x 2 | |
| Heating Mode | Hot air circulation | |
| Safety Protections | Independent EGO over-temperature power failure, safety overload switch | |
| Body Material | Outside is paint coating, inside is SUS#304 stainless steel | Inner and outer SUS#304 |
| Machine Weight | about 160kg | 15kg |
| Power Supply | 1PH,AC 220V,15A or as requested | 1PH,AC220V, 1A |
This yellow resistance tester can be used a high temperature chamber or aging chamber :
