| Equipment Name: | Top Compression Testing Machine | Load Cell Capacity: | 1000N,2000N Or 5000N |
|---|---|---|---|
| Test Stroke: | 650mm | Motor: | AC Servo Motor |
| Compress Fixture: | Round Compress Plate, Rectangular Pressure Plate | Compress Plate Size: | Dia.120mm |
| High Light: | Compression Testing Machine For Container,1000N Top Compression Testing Machine,Compression Testing Machine For Container |
||
1000N Top Compression Testing Machine For Container Compressive Test
Description:
1000N Top Compression Testing Machine For Container Compressive Test is used to test the physical properties of drink bottles and other packaging containers in the food processing industry, and test the compression strength, top pressure strength, top pressure deformation, and holding pressure deformation of the packaging bottle body.It widely for compression test of plastic bottle,medicine bottle,food package bottle.The top compress load tester meet standard of QB/T1868,QB/T2665. It can connect to computer, save and print the test results.
Top Compression Tester Specifications :
| Model | PT-5066 1000N Top Compression Testing Machine For Container Compressive Test |
| Applicable Specimen | PET bottle, plastic bottle and other container of package |
| Capacity |
1000N,2000N,5000N, one option |
| Measurement and Control Software | Windows Testing Software for WIN7,8,9,10,Core I3,I5,I6,I7 |
| Force Measurement Accuracy | ±0.5% |
| Testing Speed | 0.5～1000mm/min |
| Test Travel | Max 650mm, not including gripper |
| Effective Test Space | Front & Back 120mm, Right Left No Limit |
| Unit Switch | N,KGF,GF,LB, Mpa, Pa..... |
| Stop Method | Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure |
| Standard Configuration | Standard fixture 1 set, software and data line 1 sets, 1 sets of equipment power supply, operating instructions, product certification 1 copies, 1 copies of product warranty card |
| Machine Size | About 57×47×120cm(W×D×H) |
| Machine Weight | About 70kg |
| Motor | AC servo motor |
| Control Method | Electric type & computer controlled type |
| Power Supply | 1PH,AC220V,50Hz, or as customers's local voltage and electry |
Top Compression Testing Machine Characteristic :
The computer servo system top pressure meter is an upgraded advanced top pressure meter. The control software has been upgraded. It has pioneered the remote service function and greatly improved the efficiency of technical services.
1.The control system adopts a fully digital AC server to control the AC servo motor with high response frequency to ensure high efficiency of the transmission system, stable transmission, low noise, and speed accuracy can be controlled within ±0.2%;
2.The microcomputer system uses a commercial computer as the main control machine, and cooperates with the company's fully open test software to complete all test parameter settings, working status control, data acquisition and processing analysis, result display and print output;

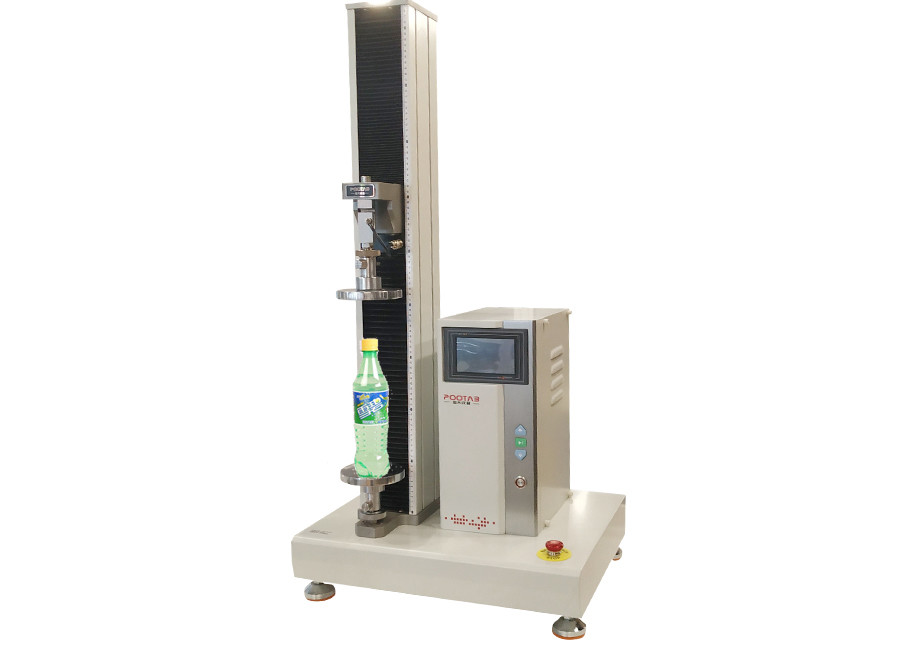

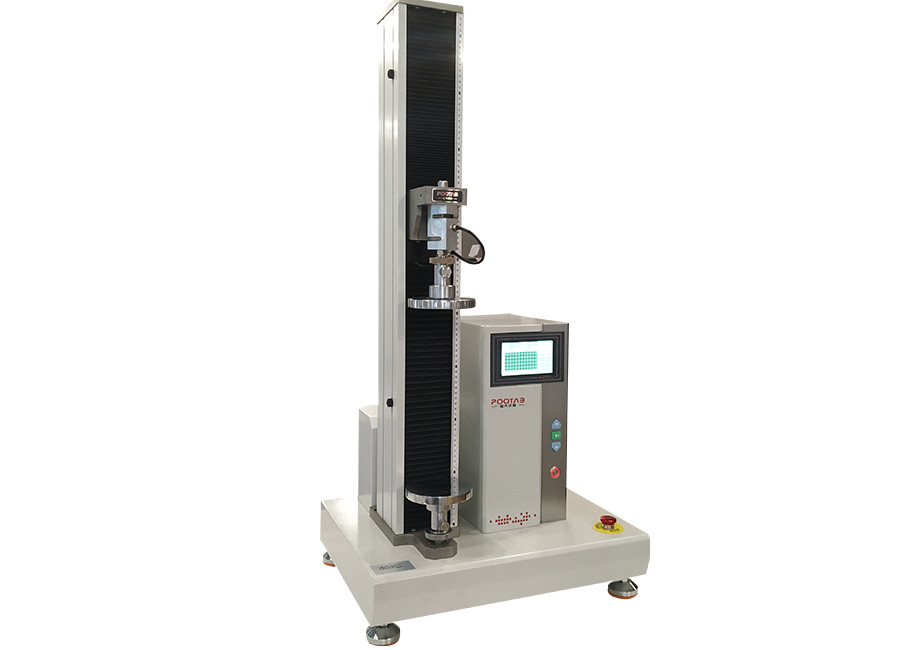

Top Compression Testing Machine Photo:
Fixtures Of Top Compression Testing Machine :
Noted: the standard plate size is diameter 120mm, the top compression tester and compress plate can be customized according to customer's bottle size.
