Multi Lights D65 JIS Z8110 Durability Testing Machine

1 Set
MOQ
Negotiable
Price
Multi Lights D65 JIS Z8110 Durability Testing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Equipment Name: Color Comparison Light Box
Light Sources: D65,TL84,CWF,UV, F/A (5 Kinds)
Design Standards: JIS Z8110/8724,CIE 30,GB/T7922,
Power Supply: 1PH,AC 220V,50/60Hz
High Light:

TL84 Durability Testing Machine

,

D65 Durability Testing Machine

,

JIS Z8110 Durability Testing Machine

Basic Infomation
Place of Origin: Dongguan,Guangdong,China
Brand Name: POOTAB
Certification: ISO,CE,SGS
Model Number: PT-6501
Payment & Shipping Terms
Packaging Details: Polywood Case
Delivery Time: 7 working days after deposit
Payment Terms: T/T, Western Union, L/C
Supply Ability: 350 sets per month
Product Description

Multi Lights Color Comparison Box JIS Z8110 Colour Contrast Cabinet



Introduction Of Color Comparison Light Box :
Standard light source color matching light boxes are widely used in textiles, printing and dyeing, printing, plastics, pigments, paints, inks, photography and other color fields to accurately check the color deviation of goods.
Because different light sources have different radiant energy, they will show different colors when irradiated on the object. In the color management of industrial production, although quality inspectors have carefully compared the colors of goods, because the environmental light source is not standard or inconsistent with the light source used by the merchants, the colors seen under different light are different, and the color difference of the goods is difficult determination. When inspecting the goods, merchants will complain or even return the goods because the color difference exceeds the standard range, which seriously affects the company's goodwill.



To effectively solve the above problems, the most useful method is to verify the color of the goods under the same light source and controllable conditions. For example, artificial daylight D65 is often used in international general standards as the standard light source for evaluating the color of goods. The color comparison box plays an more imprtant role.



Especially during night shifts, it is especially important to use standard light sources to verify the color deviation of goods.
In addition to the D65 light source, the light box also provides TL84, CWF, UV, F/A and other light sources, which have the function of testing metamerism.



Meet standards :

GB/T7922,JIS Z8110/8724,CIE 30



Specifications of color match box:

1. Light Sources:

(1). D65 --- International-standard Artificial Daylight

Color temperature:6500K Power:20W

(2).F/A --- Comparison referential light source, Applicable to family / hotel

Color temperature:2700K Power:40W

(3). CWF (Cool White Fluorescent)

Color temperature:4150K Power:20W

(4). TL84 --- Applicable to stores in Europe, Japan and China

Color temperature:4000K Power:18W

(5). UV ---- Ultraviolet light source

Wavelength:365nm Power:20W

(6)SOURCE : D65*2 ; CWF*2 ; TL84*2 ; UV*1 ; F/A*4

2. Switch: touch switch

3. Integrated timer: Record and display running Time of each light source lamp.

4. Dimensions: 71×40.5×57cm

5. Weight: 30kg

6. Power: 1PH,AC 220V,50/60Hz

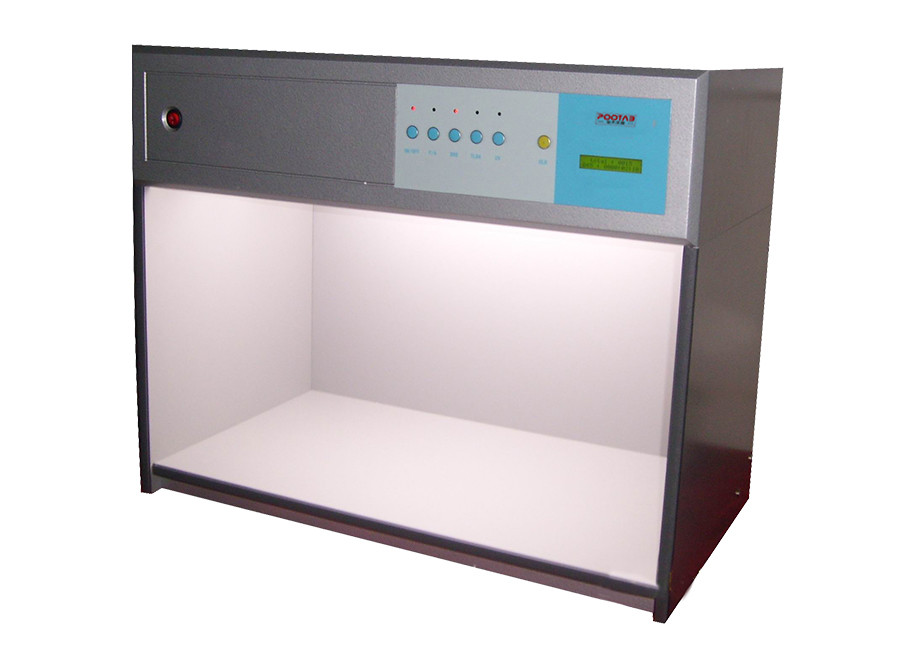

Color Comparison Light Box Photo :

Multi Lights D65 JIS Z8110 Durability Testing Machine 0





Standard Configuration: D65*2, TL84*2, F*4, UV*1, CWF*2

Multi Lights D65 JIS Z8110 Durability Testing Machine 1
