300J Pendulum Impact Testing Machine Semi Automatic For Metal Material

1 Set
MOQ
Negotiable
Price
300J Pendulum Impact Testing Machine Semi Automatic For Metal Material
Features Gallery Product Description Request A Quote
Features
Specifications
Meet Standards: ASTM E23 , GB/T3808-2002, GB/T229-2007
Impact Energy: 300J (big Hammer), 150J (small Hammer)
Impact Speed: 5.2m/s
Pendulum Pre Lift Angle: 150°
Span Of Specimen Support: 40mm
Machine Size: 2124*600*1340mm
Weight: About 450Kg
Item: Impact Tester
High Light:

300J Pendulum Impact Testing Machine

,

Metal Material Pendulum Impact Tester

,

Semi Auto Pendulum Impact Testing Machine

Basic Infomation
Place of Origin: China
Brand Name: POOTAB
Certification: ISO,CE,SGS
Model Number: PT-CJ300
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 15 working days after order confirmation
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 Sets Per Month
Product Description

300J Pendulum Impact Testing Machine Semi Automatic For Metal Material



Application:

The pendulum impact testing machine is used to measure the resistance of metal materials to impact under dynamic load, so as to judge the quality of the material under dynamic load. This machine is a semi-automatic control testing machine with simple operation and high work efficiency. It is electrically controlled for swing, impact, and placement, and can automatically use the remaining energy after breaking the sample to prepare for the next test. It is especially suitable for continuous testing. Impact test laboratories and metallurgical and machinery manufacturing industries that do a large number of impact tests. The 150J 300J imapct tester complies with the national standard GB/T3808-2002 "Inspection of Pendulum Impact Testing Machines", and conducts impact tests on metal materials according to the national standard GB/T229-2007 "Metal Materials Charpy Pendulum Impact Test Method".



Features:

1. Single-supported column structure, cantilever hanging pendulum, U-shaped pendulum body

2. Impact knife is fixed with screws ,easy to replace

3. Specimen simple beam type support

4. With safety protection pin, and safety protection net

5. The testing machine is semi-automatic control, swing, swing, impact, release pendulum are electrical control, and can use the residual energy after the impulse test sample automatically swing to prepare for the next test.



Impact Tester Parameters:

Model Name PT-CJ300 Pendulum Impact Testing Machine Semi Automatic For Metal Material
Impact Energy

300J (big hammer), 150J (small hammer)

Impact Speed 5.2m/s
Pendulum Pre-lift Angle 150°
Span Of Specimen Support

40mm

Round Corner Of Support Clamp R1.0~1.5mm
Rounded Corner Of Impact Blade

R2.0~2.5mm; R8

Distance From Pendulum Center To Impact Point

750mm
Standard Specimen Size

10×10(7.5 or 5)×55mm

Pendulum Moment

M=160.7695N.m 80.3848N.m

Power Supply

3 phase 4 wire, 50Hz, 380V, 180W

Machine Size

2124*600*1340mm

Weight

About 450Kg



Meet Standards:  ASTM E23 , GB/T3808-2002, GB/T229-2007



Main Configurations :

1. Main machine, 1 set

2. Pendulum: 150J , 300J, 1 piece

3. Inner hexagon wrench( S=12): 1 piece

4. Support adjuster: 1 piece

5. Specimen centralizer: 1 piece

6. Disassembler (for swing): 1 piece

7. Foundation screws: 4 pieces

8. Adjust inclined iron : 4 pieces

9. Protective net ; 1 piece



Pendulum Impact Testing Machine Picture :

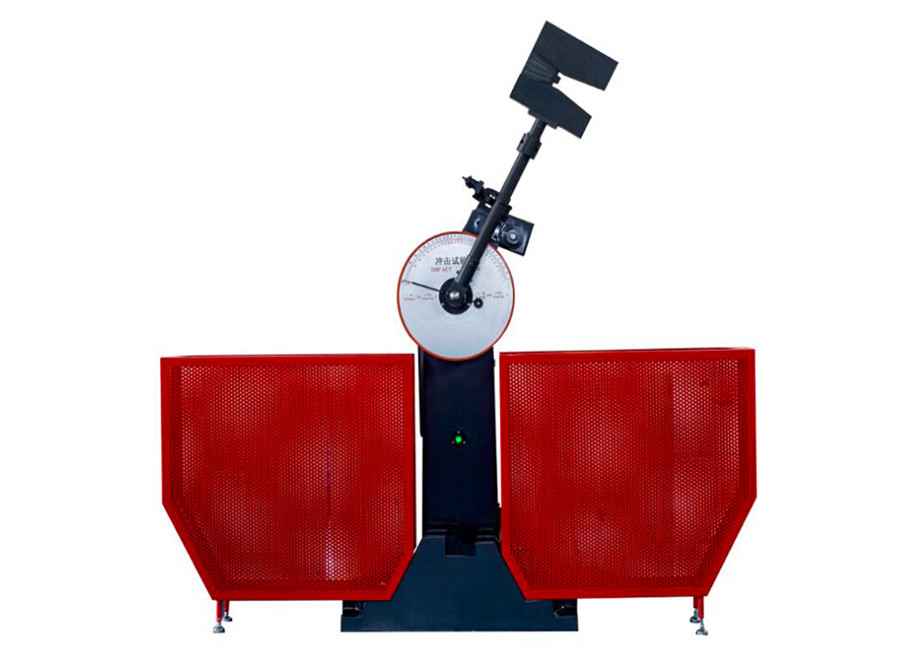

300J Pendulum Impact Testing Machine Semi Automatic For Metal Material 0

Impact Tester Detailed Photos :

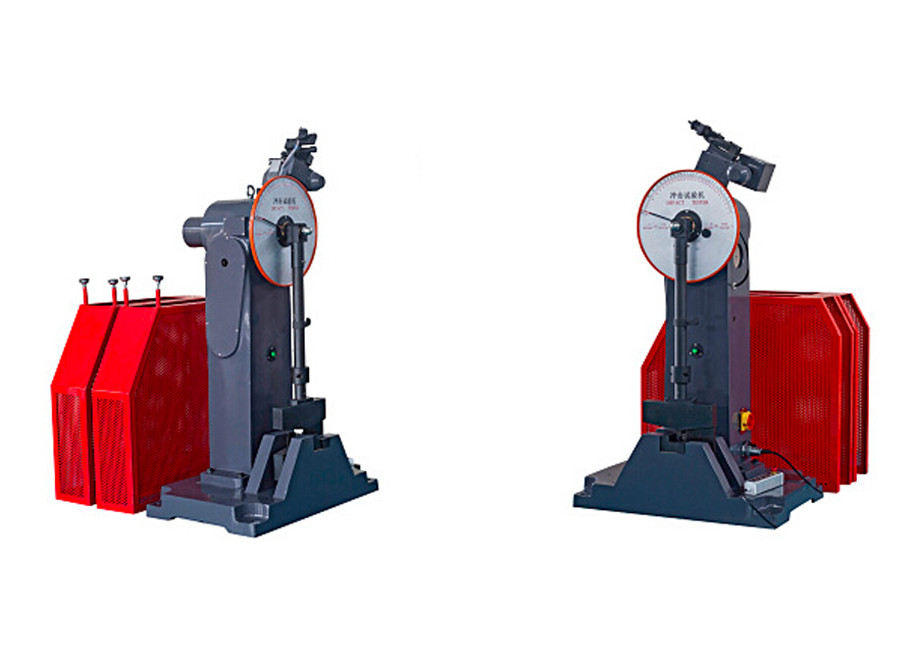

300J Pendulum Impact Testing Machine Semi Automatic For Metal Material 1





300J Pendulum Impact Testing Machine Semi Automatic For Metal Material 2



300J Pendulum Impact Testing Machine Semi Automatic For Metal Material 3



300J Pendulum Impact Testing Machine Semi Automatic For Metal Material 4
