| Power: | 1PH,220V,50/60Hz | Capacity: | 1000,2000,5000kg Option |
|---|---|---|---|
| Force Resolution: | 1/10,000 | Accuracy: | Within ±1.0% |
| Testing Speed: | 5～200mm/min，Adjustable | Effective Measuring Range: | 1~100%F.S |
| Test Space: | 60*60*60cm,80*80*80cm,1000*1000*1000,etc | Display: | LCD Screen |
| High Light: | 5T Digital Compression Testing Machine,2T Electric Compression Testing Machine,Digital Compression Testing Machine Capacity 2000 Kn |
||
2T / 5T ELECTRIC TYPE CONTAINER COMPRESSION TESTING MACHINE
Application:
This packing container compression testing machine is suitable for the compression and compression test of various packing bodies and cartons.
It is an ideal testing & research equipment for all factories, technical supervision departments, commodity inspection agencies, scientific research institutes and college and academy.
Design Standards:TAPPI T804,JIS Z0212,ISO2872,NF H13-001,CNS 2236/3511
Features of carton testing machine :
Carton Box Compression Test Machine Specifications :
| Model | PT-8211M | PT-8211A | PT-8211B | PT-8211C |
| Load Cell Capacity | 1000,2000,5000kgf , any one option | |||
| Display | LCD Screen | |||
| Force Accuracy | ±1.0% | |||
| Force Resolution | 1/10,000 | |||
| Effective Force Measurement Range | 1~100%F.S | |||
| Accuracy Of Deformation Indication | ±1.0% | |||
| Test Speed | 5～200mm/min,free set | |||
|
Test Space (W×D×H) |
60*60*60cm 80*80*80cm |
100*100*100cm
|
12*120*120cm |
150*150*150cm
|
| Stop Way | Upper and lower limit safety setting, emergency stop key, program strength and elongation setting, specimen failure detection | |||
| Special Function | Pressure Holding Test | |||
| Configuration Purchase Option | Machine pedestal *1 | No | ||
|
Machine Size (W×D×H) |
92*60*144cm 125*80*148cm |
142*100*171 cm
|
162*120*191 cm
|
200*150*218 cm
|
| Machine Weight | About 150kg | About 350kg | About 400kg | About 500kg |
| Motor | DC Motor | |||
| Electric Power | 1PH,AC220V,50/60Hz,15A or as request | |||

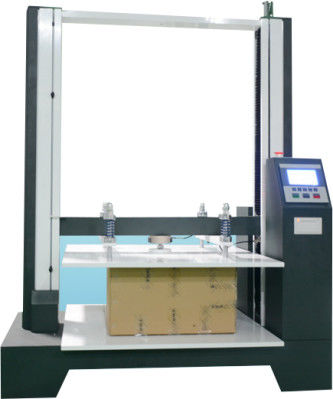

Carton Box Compression Test Machine Picture :
