Electric Vacuum Dry Oven Digital Display
Application :
vacuum drying ovens, the company's successful experiments in box heating for many years, through the painstaking research, breaking through the traditional technology and creatively solved the "bottleneck" in the heat conduction process to find the perfect conduction mode. It is widely used in research and application fields such as biochemistry, chemical pharmacy, medical and health, agricultural research, environmental protection, etc., for powder drying, baking and disinfection and sterilization of various glass containers. It is especially suitable for fast and efficient drying of heat sensitive, oxidizable substances and complex ingredients.
Parameters :
| Model | PT-2012C | PT-2012D | ||
|
Inner Szie (W*H*D) |
45*45*45cm | 56*64*60cm | ||
|
Outer Size (W*H*D) |
61*68*148cm | 72*82*175cm | ||
| Temperature | RT+10℃~200℃ | |||
| Temperature Accuracy | ±1.5℃ | |||
| Temperature Control | Electric LED Digital Display | |||
| Vacuum Degree | 760~1TORR | |||
| Vacuum Indicator | TK TYPE : arch culverts | |||
| Inner Material | SUS #304 Stainless steel | |||
| Outer Material | Special steel plate, galvanized anti-rust treatment, with high - grade resin paint coating. | |||
| Visual Window | High temperature resistant reinforced glass. | |||
| Tight material | Resistance temperature Silicon Rubber | |||
| Power Supply |
220V ,50Hz
|
|||
| Safe Device | Over-temperature power cut protection | |||
| Standard Accessories |
Adjustable stainless steel shelf board 2 pieces
|
|||
Vacuum Oven Features :
1. Intelligent temperature controller for maximized performance , eliminating the need of human intervention in parameter setting.
2. Evenly distributed heating elements for gentle drying throughout the chamber interior and absolute temperature uniformity.
3. High performance MCU-based temperature controller with advanced PID algorithm to maintain temperature
4. Equiped with dual layer observation window, force-adjustable door handle, to maintain constant vacuum level even for long-term operation.
5. Good thermal insulation of vacuum chamber for low energy consumption.
6. Easy-to-clean and heavy-duty SUS304 electropolished vacuum chamber.
7. Built-in adjustable temperature limiter and fuse for the protection of both sample and oven.
8. Strong mirror-polished SUS304 shelf plates (each of them has 15kg load capacity).
9. Complete application-specific vacuum drying system contains vacuum drying oven, vacuum pump, fume/mist filter, cold trap & connection kit of various sizes and features.
10. Electrical components are isolated from the inner chamber for the protection of user.
11. Various options (programmable controller, independent temperature switch, digital pressure indicator, etc) for your own customized system.
12. Modular design for easy and cost-effective maintenance and future upgrades.
13. Built-in timer of 9999 minutes/hours.

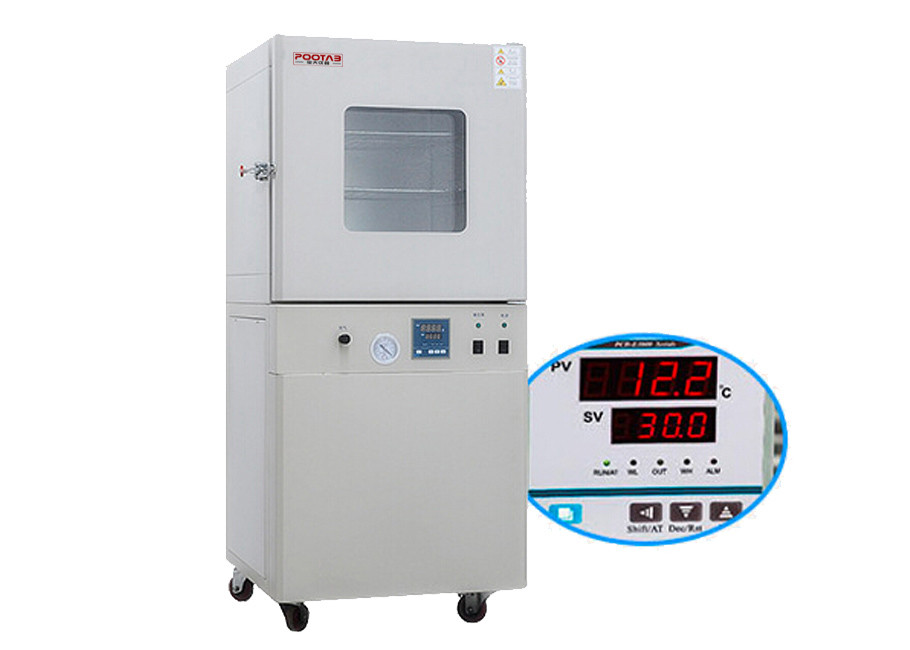

Picture Of Vacuum Oven :
