Simulated Transportation Vibration Testing Table Max 100kg

1 Set
Simulated Transportation Vibration Testing Table Max 100kg
Features Gallery Product Description Request A Quote
Rotation Speed: 0-300 Rpm Per Minute
Frequency: 60HZ;
Amplitude: 25.4mm
Load: Max 100kg
Test Bench: 1000*1200mm
Vibration Mode: Rotary Type
High Light:

Simulated Transportation Vibration Testing Table


Max 100kg Vibration Table Test Equipment

Basic Infomation
Place of Origin: Dongguan,Guangdong,China
Brand Name: POOTAB
Certification: ISO,CE,SGS
Model Number: PT-7033D
Payment & Shipping Terms
Packaging Details: Wooden Case
Delivery Time: 10 Working Days After Prepayment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 Sets Per Month
Product Description

Simulated Transportation Vibrating Test Table


Use :Simulating automobile transportation shaking table test machine is suitable for transportation test of toys, electronics, furniture, gifts, ceramics and other packaging and transportation parts.


Vibrating Table Specifications :

Model Name PT-7033D Simulated Transportation Vibrating Test Table
Rotation Speed 0-300 rpm/min
Load max 100kg
Amplitude 25.4mm (1 inch)
Vibration Mode rotary type
Test Bench 1000*1200mm
Power AC 220V, 50Hz


Operation Steps :
a) Confirm that the power supply meets the requirements and confirm that the grounding is reliable;
b) Adjust the plum blossom handle so that the sample clamping device can move flexibly back and forth, left and right;
c) Place the sample to be tested in the middle of the work surface;
d) Move the clamping device around the sample and fix it with a plum blossom handle. The clamping force should be controlled and the sample should not be damaged;
e) Connect the power supply (220V/50Hz); the touch screen displays at this time, and the machine is in standby state;
f) Press <Enter Test> as shown in the figure below. After setting the time, press to select <Scan Frequency> in <Fixed Frequency>, and then press Test. When the machine runs for the set time, the machine will Automatic shutdown;

g) After the test is completed, turn off the power switch, remove the test product, and write down the test data;
h) Organize the machine and fix the guardrail.

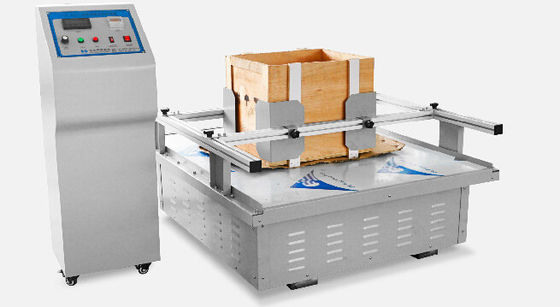

Vibrating Table Picture :

Simulated Transportation Vibration Testing Table Max 100kg 0
