0.5% Accuracy 500KG Tensile Testing Machine For Wooden Board

1 Set
0.5% Accuracy 500KG Tensile Testing Machine For Wooden Board
Features Gallery Product Description Request A Quote
Test Stroke: Maximum 650mm, Exclude Grip
Unit Switchover:: KG ; N ; LB ; G
Size: 58×45×125cm(W×D×H)
Weight: 70kg
Test Speed Range: 0.5~1000mm/min
Capacity: 1000N,100kg
Color: Silver, Red
Gripper: 1 Set Tensile Gripper
High Light:

Wooden Board Tensile Testing Machine


500KG Tensile Testing Machine


Computerized Servo Tensile Tester

Basic Infomation
Place of Origin: Donguan, Guangdong,China
Brand Name: PERFECT
Certification: ISO9001,CE, SGS
Model Number: PT-1176
Payment & Shipping Terms
Packaging Details: Standard Wooden Case
Delivery Time: 7 working days after deposit confirmed
Payment Terms: T/T, , Western Union, L/C,
Supply Ability: 200 Sets Per Month
Product Description

0.5% Accuracy 500KG Tensile Testing Machine For Wooden Board

PT-1176 Computer Servo Tensile Tester.pdf
Application :
PT-1176 Computerized Servo Tensile Test Tester suitable for the aerospace, petrochemical industry, machinery manufacturing, metal materials and products, wire and cable, rubber and wooden, paper and plastic color printing packaging, adhesive tapes, bags handbags, textile, food, pharmaceutical and other industries. with various fixtures, it can do many testing items, such as tensile, compressive, holding, pressure, bending, tearing, peeling, etc.





Capacity selection100KG,200KG,500KG optional one
Product nameComputer Type Tensile Testing Machine
Measurement and control softwareAll open test software under the Windows platform
Accuracy of measurementBetter than ±0.5%
Force resolution1/200,000
Effective range of measurement0.5~100%F.S
Deformation display accuracyBetter than ±0.5%
Test speed range0.5~1000mm/min,Can be arbitrarily set
Test maximum strokeMaximum 650mm, exculde fixture
Effective test spaceDistance 120mm,Left and right distance ∝
Unit switchA variety of measurement units, including international units, users can also customize the required units
Stop modeUpper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure
Special functionCan be held to pull and hold pressure test
Standard configurationTop pressure fixture (120mm) 1, film tensile fixture 1, data lines and software systems 1 sets, 1 sets of Lenovo brand computers, HP color printer 1, the instrument power supply line 1, CD operating instructions 1, 1 copies of the certificate, 1
Machine sizeAbout 58×45×125cm(W×D×H)
Machine weightAbout 75kg
PowerAC servo motor
Power Supply1PH,AC220V,50/60Hz,10A Or specify
Control modeTouch Screen control, or Computer Control

Machine Features :

  • structure of the machine adopts the advanced treatment of extruded aluminum type sealing plate of the lacquer that bake built-in high precision, low resistance, no clearance double roller screw and guide pillar, improve the efficiency of load and the rigidity structure;
  • control system using digital ac server control high response frequency of the ac servo motor, guarantee the transmission system of high efficiency, smooth transmission, low noise, speed can be controlled within + / - 0.2% accuracy;
  • microcomputer system using commercial computer as the main control machine, with our professional testing software, can complete
  • all of the test parameters setting, working state control, data acquisition and processing analysis, result display and printing output;
  • this product performance is stable and reliable, high measuring accuracy and test software powerful, operation is simple .

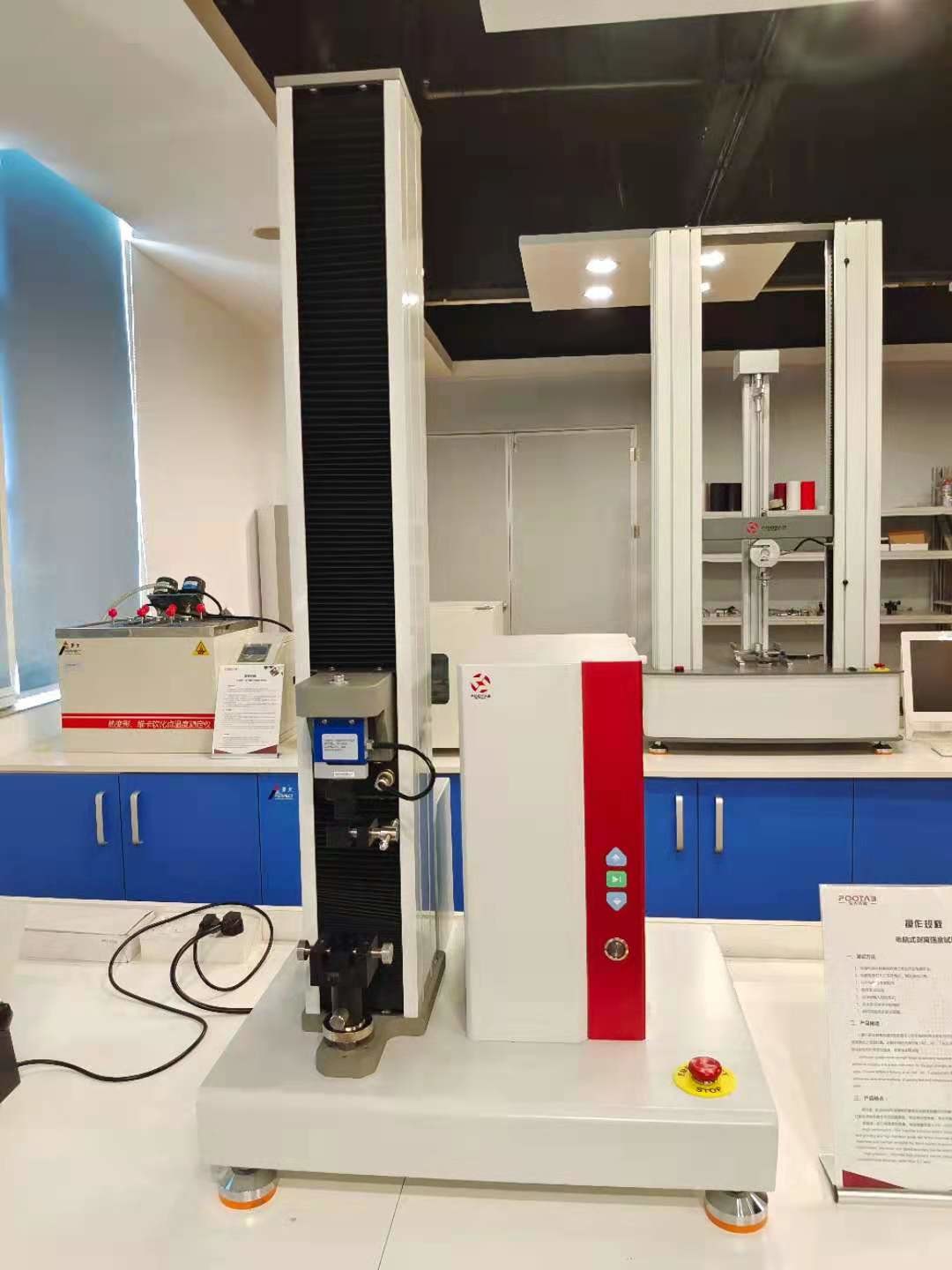

 0.5% Accuracy 500KG Tensile Testing Machine For Wooden Board 0

 0.5% Accuracy 500KG Tensile Testing Machine For Wooden Board 1
0.5% Accuracy 500KG Tensile Testing Machine For Wooden Board 2
