| Item: | 500kg Tension Test Machine | Test Content: | Tension Test, Compression Test, Flex Test, Tear Test... |
|---|---|---|---|
| Load Cell Capacity: | 20N To 5000N | Test Stroke: | 850mm |
| High Light: | Single Column Tension Testing Machine,500kg Force Tension Testing Machine,ASTM D903 Tension Test Machine |
||

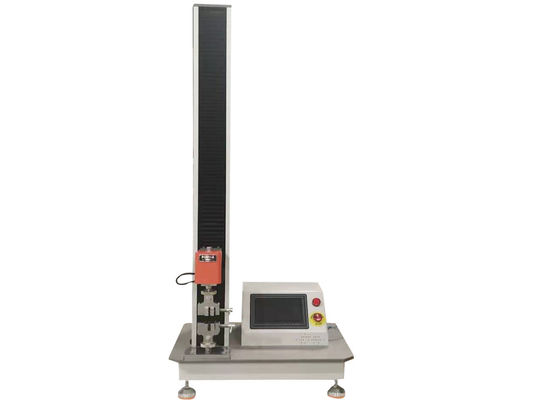

Single Column Tension Testing Machine With Tensile Grip 500kg Force
Application: single column tension testing machine, 500kg tensile tester, is capable of performing tension, compression, flexure and peel/adhesion tests in an affordable and compact package. with force capacities to 5kN. vertical test space, making them ideal for testing high elongation materials. offers a full line of grips, fixtures, load cells, extensometers.
Specifications :
| Model | PT-1170 Tension Test Machine | PT-1170B Tension Test Machine |
| Force Sensor Range | 2,5,10,20,50,100,200,500kgf, one option | |
| Display | force and extension display | |
| Force Measure Accuracy | ±1.0% | |
| Force Measure Resolution | 1/10,000 | |
| Effective Measure Range | 1~100%F.S | |
| Deformation Indication Accuracy | ±1.0% | |
| Test Speed | 1～500mm/min | |
| Test Travel | 850mm,exclude grip | |
| Test Space | Front and back 120mm,right left no limit | |
| Force Unit | kgf,gf ,N,kN,Ibf | |
| Stress Unit | MPa,kPa,kgf/cm2,Ibf/in2 | |
| Deformation Unit | mm,cm,in | |
| Stop Method | Upper and lower limit safety setting, emergency stop button, program force and elongation setting, test piece damage sensing | |
| Snap Point Method | Manually take points during the test and pre-set take points (20 points) | |
| Computer Extension | No | Yes |
| Standard Configuration | 1 pair of grip, 1 micro printer, 1 power cord, 1 operation manual, 1 product certificate, 1 product warranty card | 1 pair of grip, 1 micro printer, 1 operating software, 1 software ,1 connection network cable, 1 power cord, 1 operation manual, 1 product certificate, 1 product warranty card |
| Size | About 57×47×120cm(W×D×H) | |
| Weight | About 80kg | |
| Motor | Stepper | |
| Power Supply | 1PH,AC220V,50/60Hz,10A | |
Follow Standards :
ASTM D903,GB/T2790/2791/2792,CNS-11888,JIS K6854,PSTC-7
Features :
1. Touch screen control or PC control.
2. The software operation adopts WINDOWS interface, which is easy and convenient to operate.
3. The test results are displayed in real time, the upper and lower limits of the tensile force can be set, and the test results can be printed automatically. Data can be stored and historical databases can be established.
Detailed pictures of tension test machine 500kg force :
