1000N Compression Testing Machine With Plate 120mm Diameter
Machine Application: This top compression tester is used for testing the compressive strength of packaging bottles and other packaging containers in food processing industry, such beverage bottles, PET plastic bottles, water bottles, medicine bottles, etc. Equipped with corresponding fixture, it can also measure the side pressure performance of the bottle and stretch and tear test of the packaging film.
Detailed Specifications :
| Model | PT-5066 Compression Testing Machine For Plastic Bottle |
| Capacity | 1000N, 2000N,5000N, any one option |
| Software | Windows professional software |
| Measure Accuracy | ±0.5% |
| Force Resolution | 1/200,000 |
|
Measurement Range |
0.5~100%F.S |
| Deformation Display Accuracy | ±1% |
| Test Speed | 0.5～500mm/min,free set |
| Test Travel | 650mm,exclude fixture/grip |
| Effective Test Space | Dia 120mm |
| Stop Method | Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure |
| Standard Configuration | One set of top compress plate (120mm) , 1 set of thin film tensile clamps, and network line 1 piece, power supply 1 piece, operating instructions 1 set, product certification 1set, warranty card 1 set |
| Purchase Configuration | machine not included computer and printer, customer can use their own, or buy from us. |
| Size | About 57×47×120cm(W×D×H) |
| Weight | About 70kg |
| Motor | AC Servo Motor (Panasonic, Japan Brand) |
| Power Supply | 1PH,AC 220V,50/60Hz,10A or as cuctomer's specified |
Compression Plate / Panel : square shape or round shape

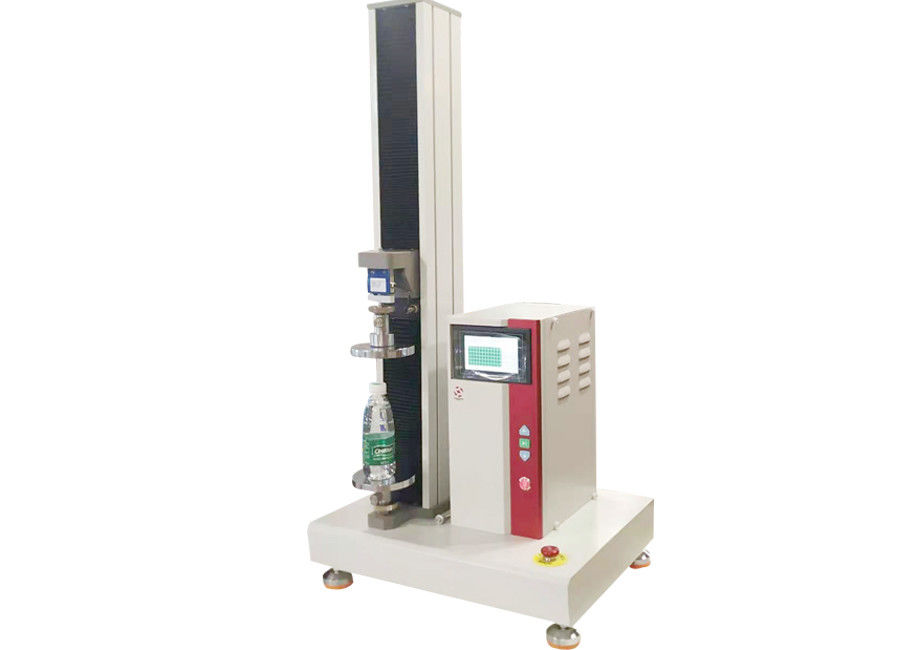

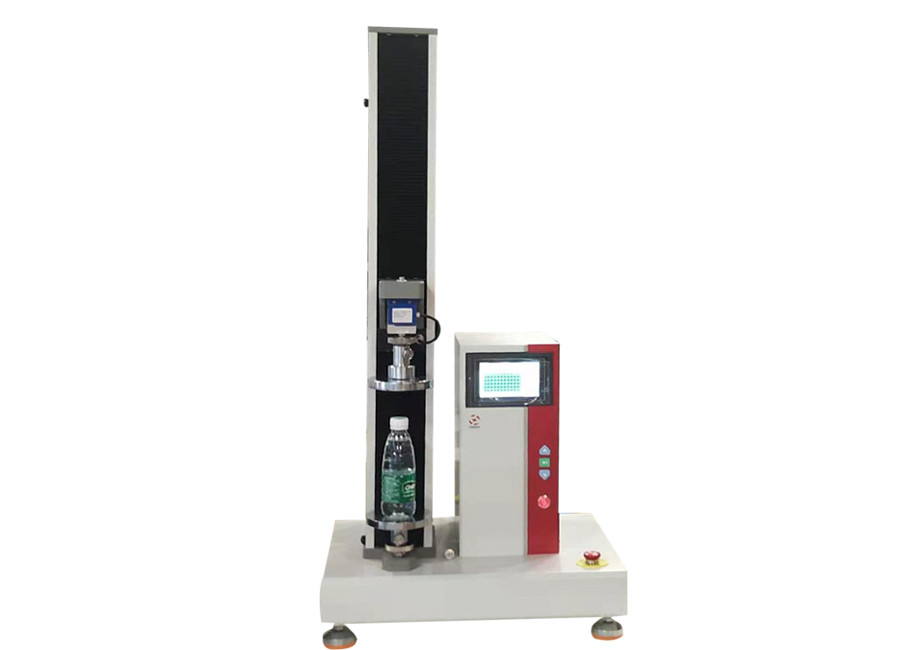

Pictures of top load test machine :
