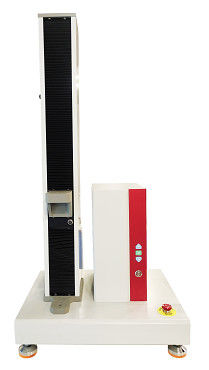

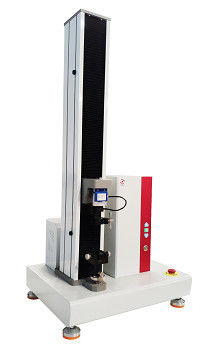

0.5% Accuracy 100KG Tensile Testing Machine For PET Bottles
PT-1176 Computer Servo Tensile Tester.pdf
Application :
PT-1176 Computerized Servo Tensile Test Tester suitable for the aerospace, petrochemical industry, machinery manufacturing, metal materials and products, wire and cable, rubber and wooden, paper and plastic color printing packaging, adhesive tapes, bags handbags, textile, food, pharmaceutical and other industries. with various fixtures, it can do many testing items, such as tensile, compressive, holding, pressure, bending, tearing, peeling, etc.
specifications:
Model | PT-1176 |
Capacity selection | 100KG,200KG,500KG optional one |
Product name | Computer Type Tensile Testing Machine |
Measurement and control software | All open test software under the Windows platform |
Accuracy of measurement | Better than ±0.5% |
Force resolution | 1/200,000 |
Effective range of measurement | 0.5~100%F.S |
Deformation display accuracy | Better than ±0.5% |
Test speed range | 0.5~1000mm/min,Can be arbitrarily set |
Test maximum stroke | Maximum 650mm, exculde fixture |
Effective test space | Distance 120mm,Left and right distance ∝ |
Unit switch | A variety of measurement units, including international units, users can also customize the required units |
Stop mode | Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure |
Special function | Can be held to pull and hold pressure test |
Standard configuration | Top pressure fixture (120mm) 1, film tensile fixture 1, data lines and software systems 1 sets, 1 sets of Lenovo brand computers, HP color printer 1, the instrument power supply line 1, CD operating instructions 1, 1 copies of the certificate, 1 |
Machine size | About 58×45×125cm(W×D×H) |
Machine weight | About 75kg |
Power | AC servo motor |
Power Supply | 1PH,AC220V,50/60Hz,10A Or specify |
Control mode | Touch Screen control, or Computer Control |
Machine Features :
Machine:
